Home > Electrical & Electronics > Electric Motor > DC Motor > High Torque DC Planetary Reduction 37mm Gear Motor 24v Reducer Motor
High Torque DC Planetary Reduction 37mm Gear Motor 24v Reducer Motor
US$ 3.7 - 9.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
kegumotor
Place of Origin:
China
Model Number:
KG-37B520
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/hongkong
Delivery Detail:
7 days
Related Products
-
Mini Low Noise Gearbox Valve With Electric 10mm Metal Gear Motor for Car ModificationUS$ 3.7 - 9.5MOQ: 1 Piece -
16mm dc Planetary Gear Motor With Encoder 12v 24v 60rpm dc Gear Motor 4rpmUS$ 3.7 - 9.5MOQ: 1 Piece
-
Gearbox Motor Reduction 37mm 12 Volt Dc Geared Motor 12v Dc Gear Motor GM37-500US$ 3.7 - 9.5MOQ: 1 Piece
-
25mm dc Gear Motor 6v 12v BL2430 dc Brushless Motor With 25mm Metal GearboxUS$ 4.7 - 9.5MOQ: 1 Piece
-
GM12-N20-EN N10 N20 N30 Mini DC 3V 6V 12V 210:1 Gear Ratio Motor Metal Gearbox With Encoder 3pprUS$ 2.7 - 9.5MOQ: 1 Piece
Brand Name
kegumotor
Place of Origin
China
Model Number
KG-37B520
Type
Gear Motor
Certification
CCC, CE, ROHS
Torque
300g.cm
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Explosion-proof
Voltage(V)
3
Output Power
0.01
Continuous Current(A)
0.01
Speed(RPM)
100
Commutation
Brush
Product Description
37mm 3.7v 4v 6v 12v Micro DC Gear Motor for robot toys

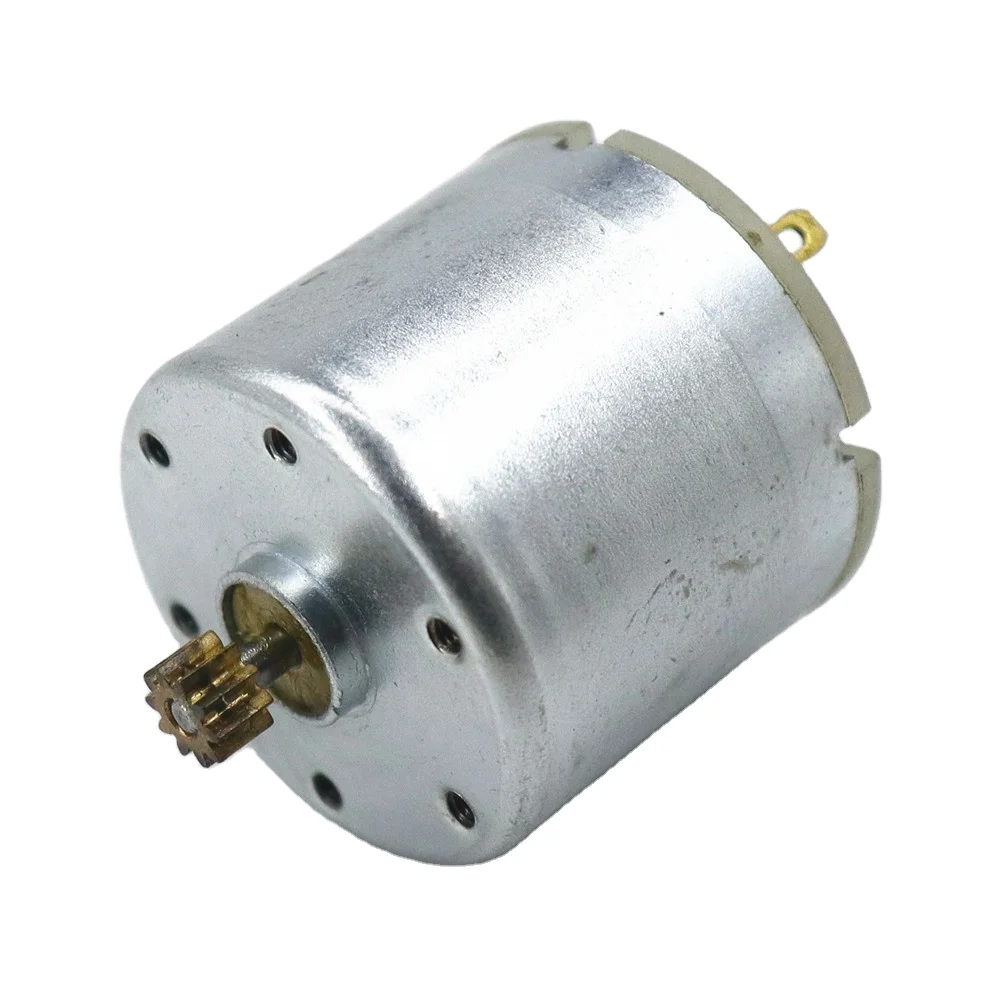

RF-528 DC motor metal gear 12v electric motor for door-lock
SPECIFICATION:
37mm 3.7v 4v 6v 12v Micro DC Gear Motor for robot toys
1.Rated Voltage:DC 3V -12V 2. Speed No load: 17~3000RPM
3.Diameter 37mm,length 23+29.3mm 4.Weight: 105g Approx 5.Application:Robot, Home Appliance, Door Lock,medical equipment, automobile
systems, communication equipment, digital cameras and domestic appliances. etc 6.Customized,Adjust the performance at
free(voltage,speed,torque,ECT.)
1.Rated Voltage:DC 3V -12V 2. Speed No load: 17~3000RPM
3.Diameter 37mm,length 23+29.3mm 4.Weight: 105g Approx 5.Application:Robot, Home Appliance, Door Lock,medical equipment, automobile
systems, communication equipment, digital cameras and domestic appliances. etc 6.Customized,Adjust the performance at
free(voltage,speed,torque,ECT.)
Kegu Motor Provide intelligent lock solution
Special imported steel for gear material, mini
37mm robot 12v dc gear motor with gearbox and gear reduction
* Small size dc gear motor with low speed and big torque
* 37mm 25mm gear motor provides 1.0N.m torque and more reliable
* Suitable to small diameter. Low noise and big torque application
37mm robot 12v dc gear motor with gearbox and gear reduction
* Small size dc gear motor with low speed and big torque
* 37mm 25mm gear motor provides 1.0N.m torque and more reliable
* Suitable to small diameter. Low noise and big torque application

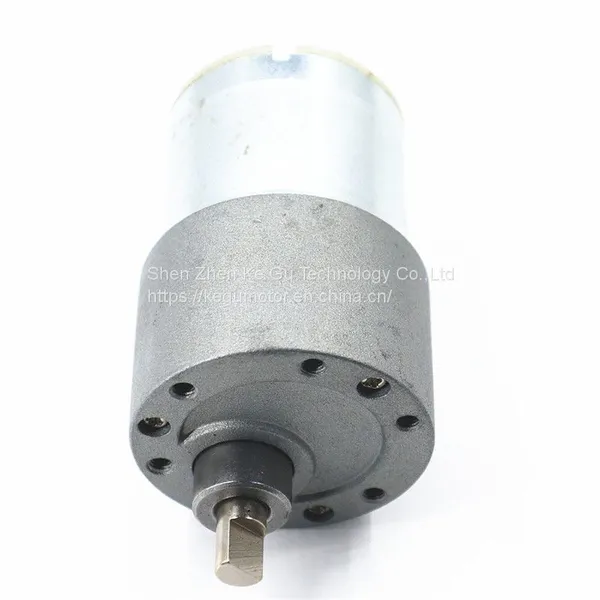

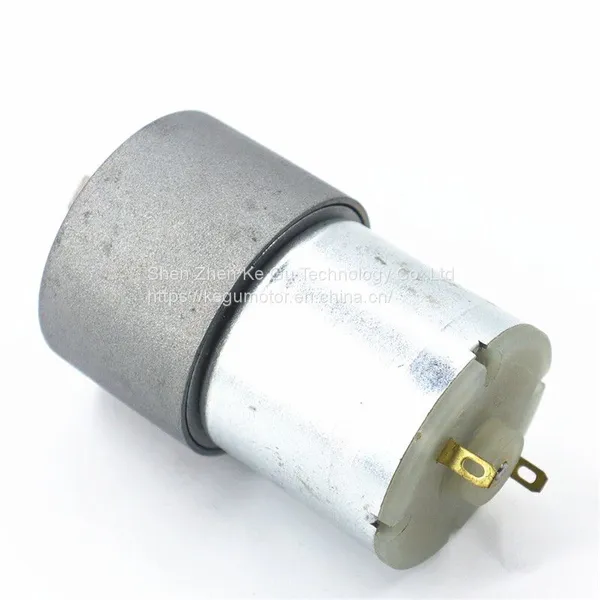

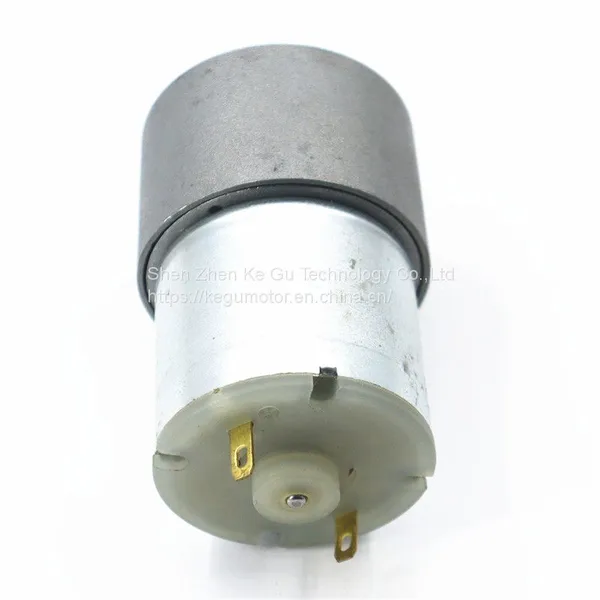

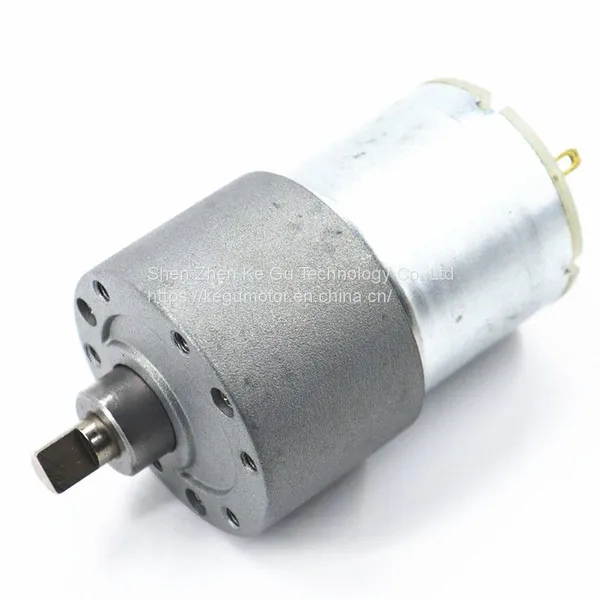

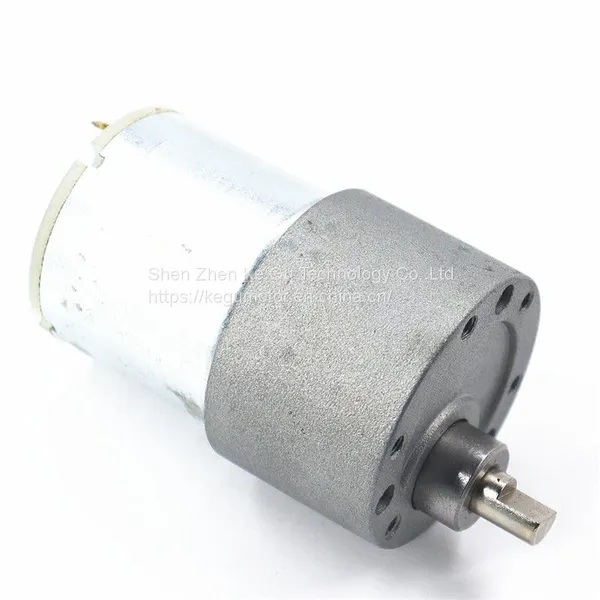

Detailed Images
This series of motors are used in intelligent switch, smart door lock, fingerprint lock driver.The control system of various locks and fingerprint lock can be controlled by mobile APP.
Size Information

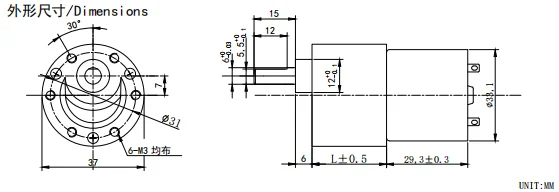

Drawing of 37mm gear motor
Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm
Packing&Shipping
After Sales Service
The reliability and stability of the product is an important index to evaluate the technical level of the product.In order to accurately analyze, evaluate and verify the performance of the product.
So Kegu motor will reply customer in 2 days after receive
complain from customer. Engineer team analyze the reasons according to customer complain and evaluate manufacturing process.After confirm the motor issue,customer can return defect motor, we will ship out all motors after repair motors.
complain from customer. Engineer team analyze the reasons according to customer complain and evaluate manufacturing process.After confirm the motor issue,customer can return defect motor, we will ship out all motors after repair motors.
Company Introduction
Shen Zhen Ke Gu Technology Co.,Ltd, it is a high-tech private enterprise integrating research, development, production and sales of various types of miniature DC motors, precision gearbox, micro transmission of system. We also provide the drive solutions for customers from design, components manufacturing and assembly.The company strictly implements the IS9001:2015 management system.
Products are widely used in automotive,communications equipment,smart home,medical equipment, intelligent security,household appliances,western kitchen equipment,machinery and electronics and other high-end transmission structures,products are exported to more than 50 countries and regions at home and abroad.
Our Services & Strength
R&D team is committed to designing and developing micro drive systems for many years and providing drive system solutions for customers.
Provide customized, design, development, production and assembly services of micro gear transmission system.
Certifications
FAQ
Q:1.What kind of motors you can provide?
Q:5. Can I get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
A:Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your
detailed requirements and annual quantity, we'll see what offer we can provide.
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your
detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 25-40 days and this time can be shorter or longer based on different model, period and quantity.
A: For orders, the standard lead time is 25-40 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5. Can I get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2013
Overseas Office
Yes
Factory Size
5,000-10,000 square meters
