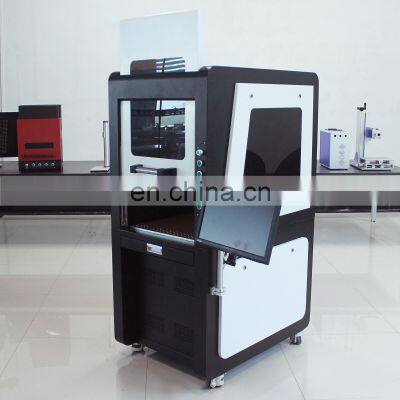

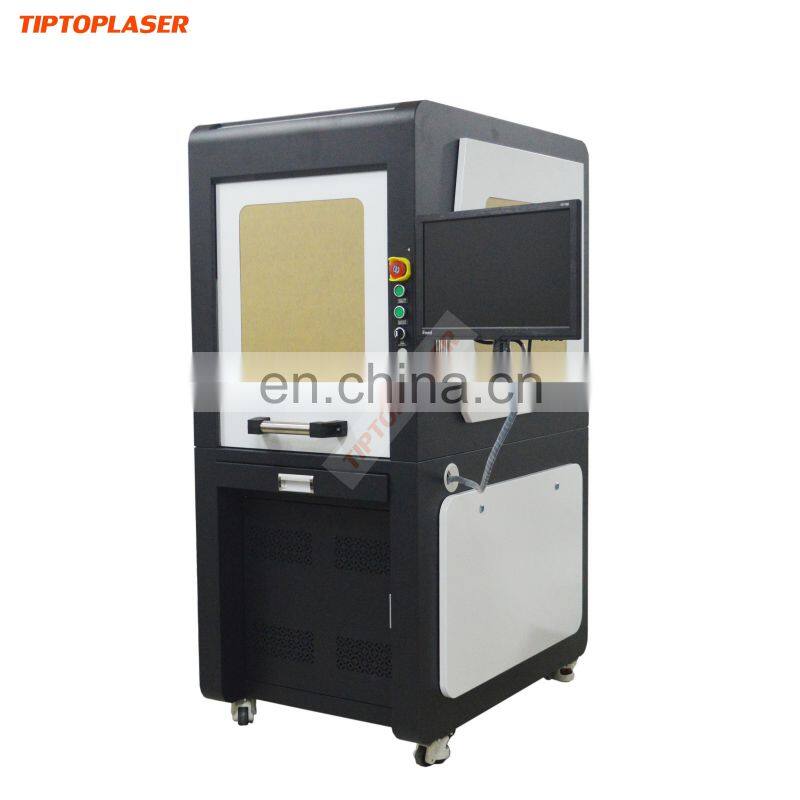

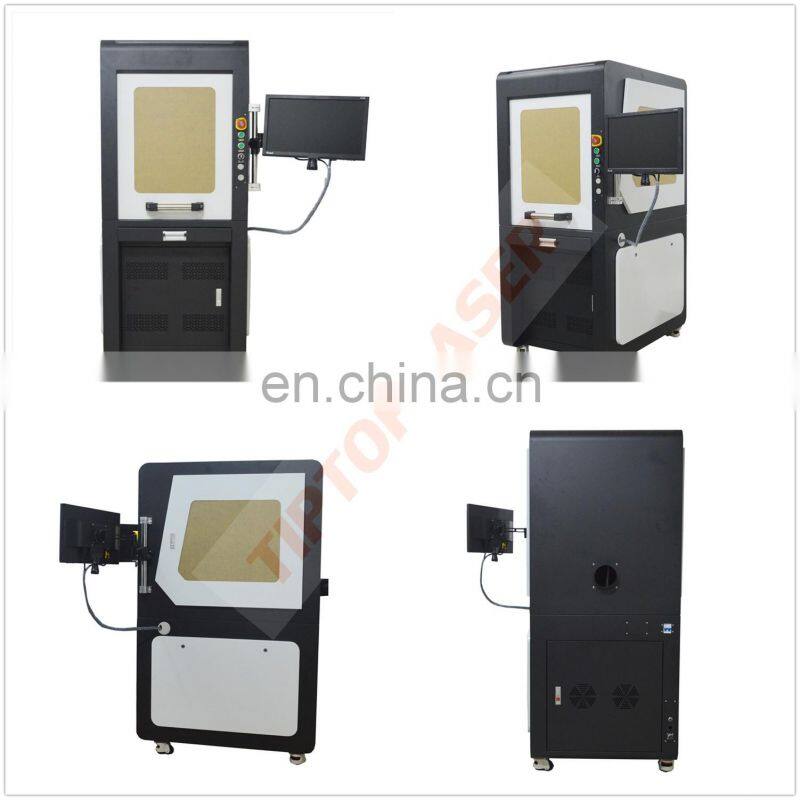

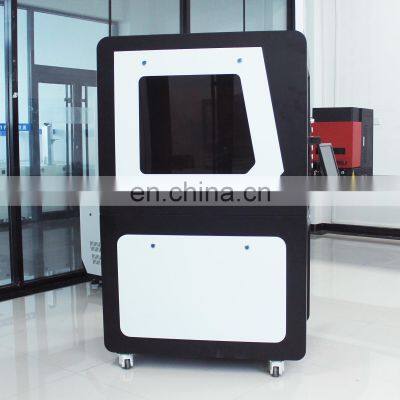

High performance stainless steel fiber laser marking machine logo maker machine for bar code
| Other models |
| Product description |
| The fiber laser generator is highly integrated with superior laser beam and uniform power density. The output laser power is stable. The design greatly enhances the machine's anti-reflection capability through optical isolators, marking on most highly reflective materials, and revealing deep materials through evaporation of surface materials, in aluminum, copper, gold and silver, without shadows and false openings . |
| Features |
|
1. The beam quality is much better than the traditional solid laser marking machine, especially suitable for fine and precise marking. 2. Adopt integrated whole structure, equipped with automatic focusing system, and the operation process is humanized. 3. Protect the fiber laser window with an isolator to enhance stability and laser life. 4. Long service time: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period. 5. Enclosed casing: Reduce environmental pollution caused by marking and reduce noise. 6. Humanizing operating process and good stability of equipment operating 7. High pulse repeating rate and stable power bring high speed laser marking. Unit pulse power surge is lower than 1%. Easy control laser dot size, thickness and shape. |
| Product parameters |
| Model | TPF-20W |
| Wavelength | 1064nm |
| Laser source | Raycus |
| Laser power | 20w/30w/50w/60w/70w/100w |
| Marking area | 110*110mm, 175*175mm, 300*300mm (optional) |
| Laser repetition frequency | 20KHZ-80KHZ |
| Marking speed | 7000mm/second |
| Beam quality | M²:1.5 |
| Marking depth | 0.01-1mm |
| Working Precision | 0.001mm |
| Minimum Line Width | 0.017mm |
| Minimum Character | 0.2mm |
| Laser Module Life | >100000 hours |
| Supported Format |
PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF,CAD, CDR |
| Operating Voltage | AC110V Or AC220V/ 50HZ |
| Control interface | Standard USB port |
| Working environment | Clean and dust-free or dust less |

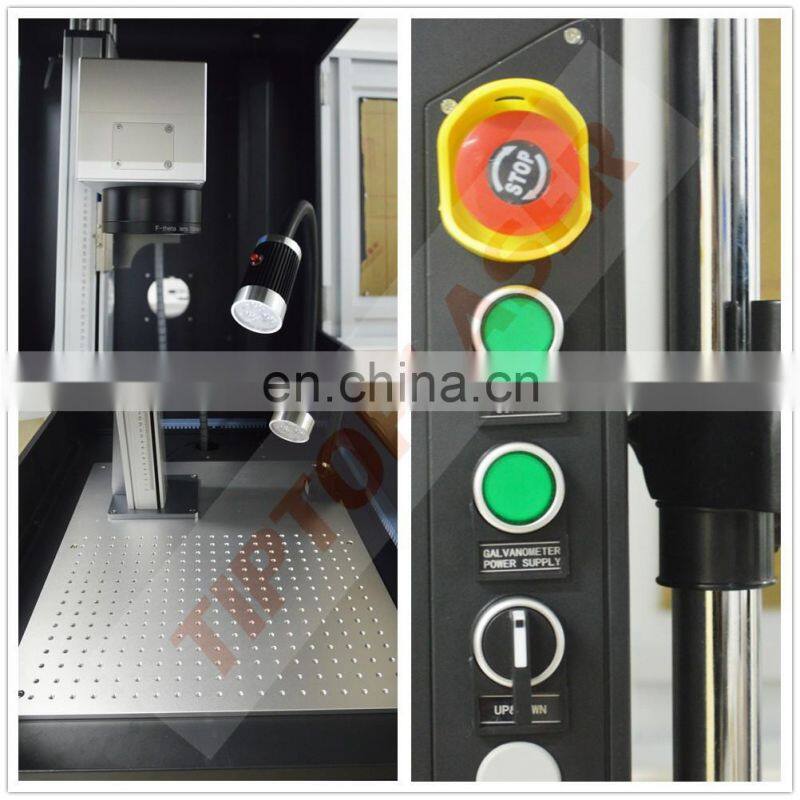

| Details detemine quality |

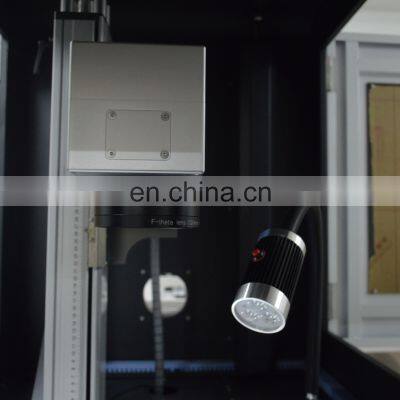

| ♦ SINO Galvo head & Wavelength Field lens High speed galvanometer scanning system,reduced latency,improve marking speed while ensuring accuracy ♦ RAYCUS Laser source Advanced lasers,service life up 100000 hours , no need to consume any consumables, maintenance-free ♦ JCZ Control card Adopt the embedded operating system, simple and convenient operation, great performanc |

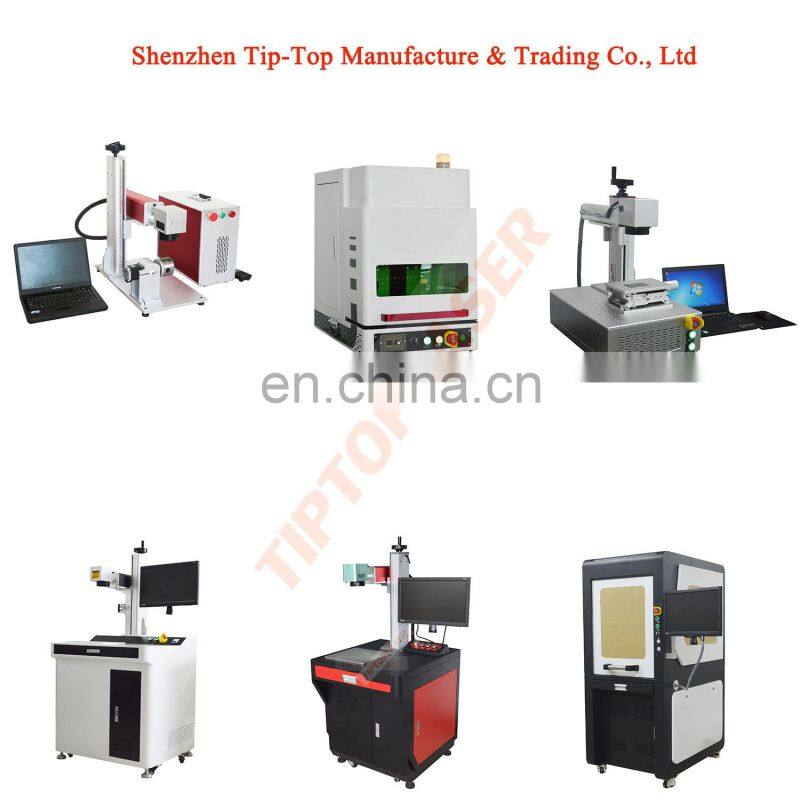

| Fiber Marking Machine Company |
| Shenzhen Tip-Top Manufacture & Trading Co., Ltd is a branch company with engineers and research and development for 16 years. It is a professional manufacturer engaged in the research, development, production and service of fiber laser marking machine.Fiber cutting machine,fiber marking machine,CNC router,laser engraving machine,laser welding machine, and plasma cutting machine. |

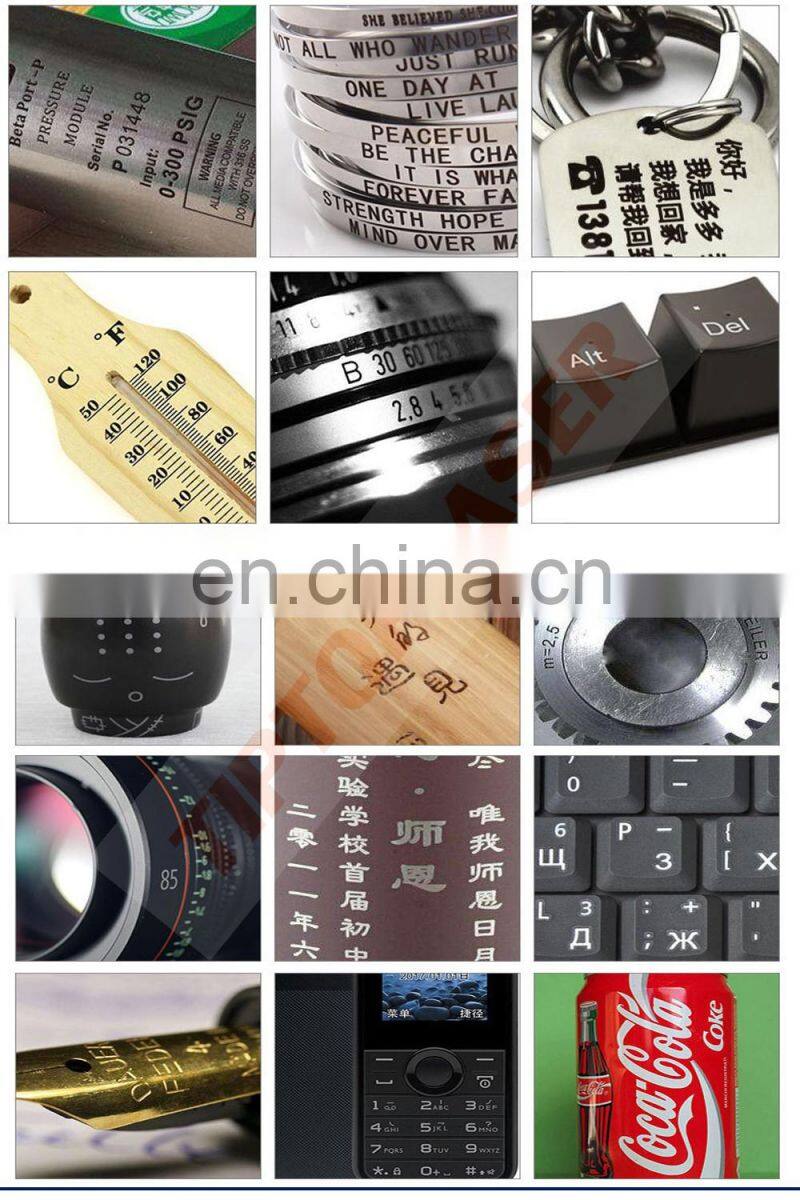

| Fiber Marking Machine Sample Display |
|
Applicable industry: Fiber laser marking machine can mark on metal and a variety of non-metallic materials, especially suitable for some occasions of detailed requirements and high precision. It is used in electronic components, hardware tools, accessories, integrated circuit (IC), electrical appliances, mobile communications, precision instruments, spectacles and clocks, jewelry, auto parts, plastic buttons, construction material, PVC pipe, medical equipment and other industries. |
| Applicable material: Metals and alloys (iron, copper, aluminum, magnesium, zinc and all other metals),plastics,rare metals and alloys (gold, silver,titanium), metal oxides (metal oxide may be), special surface treatment(Phosphatize, aluminum anodizing, electroplating the surface), ABS material (electrical appliances shell, daily necessities), ink (translucent keys, print products), epoxy resin (electronic components, packaging, insulation layer).etc. |
| Fiber marking machine transportation |
| Standard 3 layer export package * Outside plywood package with metal belt * Middle size foam * Inner side waterproof film |
| Fiber Marking Machine FAQ |
|
Q : What is the packing?
Q: Will the packing be damaged in transit? A: our packing takes all the factors of damage into consideration to ensure the safety of the packing. Our freight forwarder has rich experience in safe transportation.
Q: How do I install and run the machine? A: our engineers have installed and tested the machine before shipment.No components need to be installed. For laser marking machine, we have menu and video to show you the training.We will also train you online.This is how most customers train their machines to run. Few customers come to the factory for training.
Q: What should I do if the machine breaks down? A: if you encounter such A problem, please contact us as soon as possible and don't try to repair the machine by yourself or others.We will solve it for you as soon as possible within 24 hours. |
