5MP 1/2.8”H.265 H.264 Night (ICR), Ultra DNR PTZ 4X IP Camera Hikvision Compatible HD IR Network Camera

5MP 1/2.8”H.265 H.264 Night (ICR), Ultra DNR PTZ 4X IP Camera Hikvision Compatible HD IR Network Camera thumbnail-1
5MP 1/2.8”H.265 H.264 Night (ICR), Ultra DNR PTZ 4X IP Camera Hikvision Compatible HD IR Network Camera thumbnail-2
5MP 1/2.8”H.265 H.264 Night (ICR), Ultra DNR PTZ 4X IP Camera Hikvision Compatible HD IR Network Camera thumbnail-3
5MP 1/2.8”H.265 H.264 Night (ICR), Ultra DNR PTZ 4X IP Camera Hikvision Compatible HD IR Network Camera photo-1
5MP 1/2.8”H.265 H.264 Night (ICR), Ultra DNR PTZ 4X IP Camera Hikvision Compatible HD IR Network Camera photo-2
5MP 1/2.8”H.265 H.264 Night (ICR), Ultra DNR PTZ 4X IP Camera Hikvision Compatible HD IR Network Camera photo-3
US$ 100 - 123.5 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Hikvision
Place of Origin:
China
Color:
White
Contact Supplier Request Quote Chat Now
Shaanxi Fatego Network Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Yiwu, Shenzhen, Hong Kong
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hikvision
Place of Origin China
Color White
Screen Size < 2"
Optical Zoom < 10x
High Definition Support 1080P (Full-HD)

5MP PTZ 4X IP Camera Hikvision Compatible HD IR Network Camera

1/2.8”

5 Mega Pixel CMOS Sensor
4x optical zoom
WDR, Day/Night (ICR), Ultra DNR
Max. 15fps@5MP/25fps@4MP

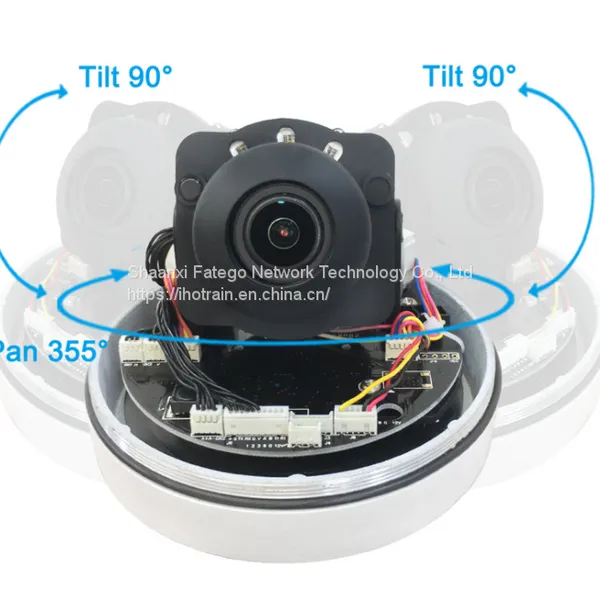

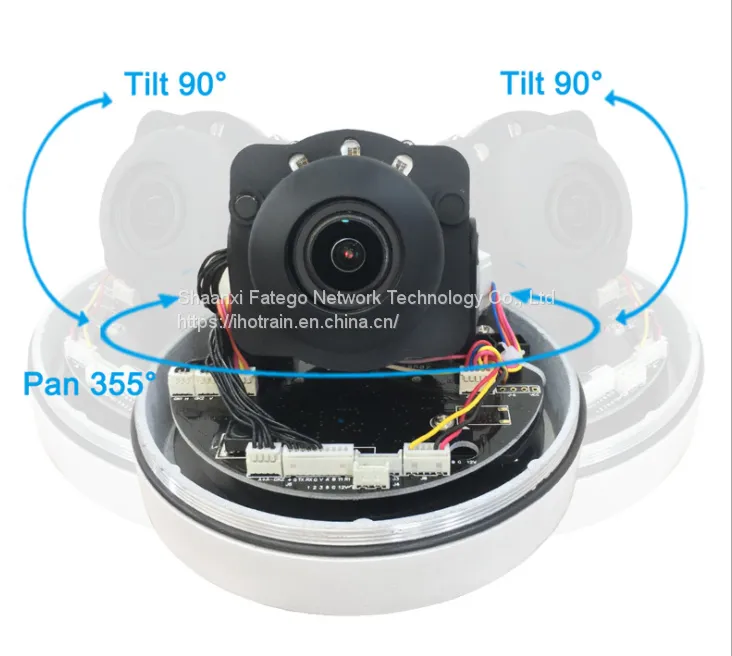

Pan Range：0° to 355°

Tilt Range：0° to 90°
 H.265/H.264 dual-stream media server
 DC 12V / Support POE
 Compatibility: HIKVISION Protocol, ONVIF
 Multi web browser, PC, mobile APP

IP66 waterproof







Camera

Image Sensor

5MP: 1/2.8" Sony Sensor

Min.   Illumination

Color: 0.1 Lux   @(F1.2, AGC ON)
  B/W:0.01 Lux @(F1.2, AGC ON)
  0 Lux with IR

White Balance

Auto/Manual/ATW   (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp

Gain

Auto/Manual

Shutter Time

50Hz: 1/25 s   to 1/100,000 s

Day &   Night

IR Cut Filter

Digital Zoom

16 X

Privacy Mask

3 programmable   privacy masks

Focus Mode

Auto/Semi-automatic/Manual

WDR

120 dB WDR

2. Lens

Focal Length

2.8 mm to 12   mm, 4x  optical zoom

Zoom Speed

Approx. 2 s   (optical lens, wide-tele)

Field of View

Horizontal   field of view: 96.7° to 31.6°(Wide-Tele)
  Vertical field of view: 51.1° to 17.7° (Wide-Tele)
  Diagonal field of view: 115.1° to 36.3°(Wide-Tele)

Working   Distance

10 mm to 1500   mm (wide-tele)

Aperture Range

F1.2 to F2.7

3. PTZ

Movement Range   (Pan)

0° to 355°

Pan Speed

Configurable,   from 0.1°/s to 100°/s. Preset speed: 100°/s

Movement Range   (Tilt)

0° to 90°

Tilt Speed

Configurable,   from 0.1°/s to 100°/s. Preset speed: 100°/s

Proportional   Zoom

Yes

Presets

255

Power-off   Memory

Yes

4. Compression   Standard

Video   Compression

Main Stream:   H.265/H.264
  Sub-stream: H.265/H.264

H.264 Type

Baseline   profile/Main profile/High profile

5. Event

Basic Event

Motion   Detection

6. IR

IR Distance

30 m Max

IR LED

4 pieces

7. Image

Max.   Resolution

5MP: 2592   × 1944

Main Stream

5MP: 15fps   5MP(2592 × 1944), 20fps 4MP(2560x1440), 25fps 3MP/2MP/720P

Sub-Stream

5MP: VGA/640x360/CIF   25fps, etc

Image   Enhancement

3D DNR, EIS,   Regional Exposure, Regional Focus

8. Network

Ethernet

RJ-45   (10/100Base-T)

Protocols

IPv4/IPv6,   HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP/TCP/IP, etc.

API

ONVIF (Profile   S, Profile G, Profile T), HIKVISION

Simultaneous   Live View

Up to 20   channels

Web Browser

IE 8 to   11,Chrome 31.0+, Firefox 30.0+, Edge 16.16299+

9. Interface

Network   Interface

1 RJ45 10   M/100 M Ethernet,  POE

Power

12V DC / POE

10. General

Language (Web   Browser Access )

7 languages:   Chinese, English, Russian, German, Italian, Turkish, ???

Power

12 VDC, 1.5 A   (Max. 10.9 W, including Max. 4.2 W for IR)

POE (802.3af),   36 to 57 VDC, 0.35 A (Max. 12.2 W, including max. 4.2 W for IR)

Working   Environment

Temperature:   -20°C to 60°C (-4°F to 140°F), humidity: ≤ 90%

Protection   Level

IP66 standard,   IK 10, surge protection, ±2kV Line to GND, ±1kV Line to Line, IEC61000- 4-5

Material

Aluminum Alloy

Dimension

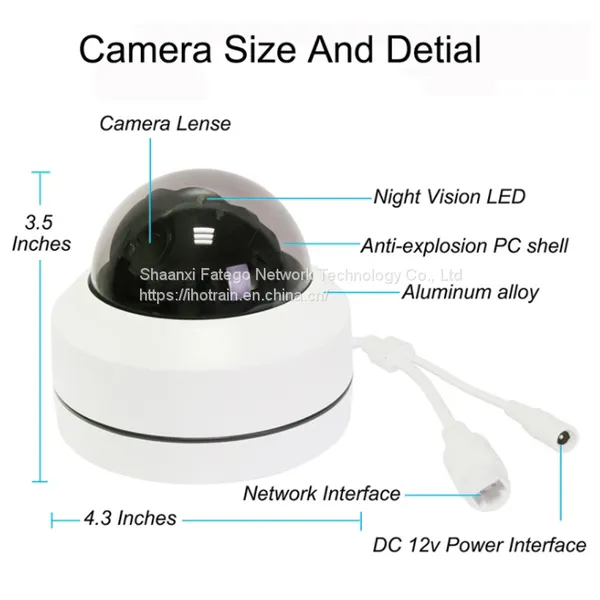

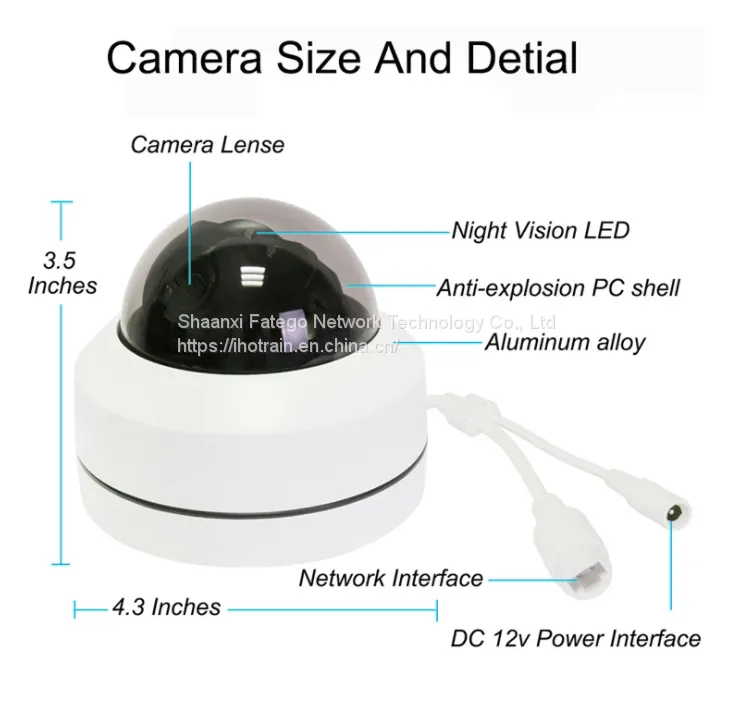

Φ 150mm ×   140mm x 130mm (Φ 5.90" × 5.5" x 5.11'' )

Weight

Approx. 0.88   kg ( 1.94 lb.)





Shaanxi Fatego Network Technology Co., Ltd

Address: 22F/C Building, Fuerdun International Finance Center, Xi’An, China

Post code: 710000

Contact: Stone

Email: ftg_blue@163.com  shiyuzhen@ihotrain.com

Phone: + 86 13319200202

Contact: Eva

Email: evaliu@ihotrain.com

Phone/Whatsapp: +86 17316608049


Product Tags: HD IR Network Camera , 4x PTZ camera , 5MP PTZ Camera , HD IR Video Camera , DNR Conference Camera , PTZ 4X IP Camera
