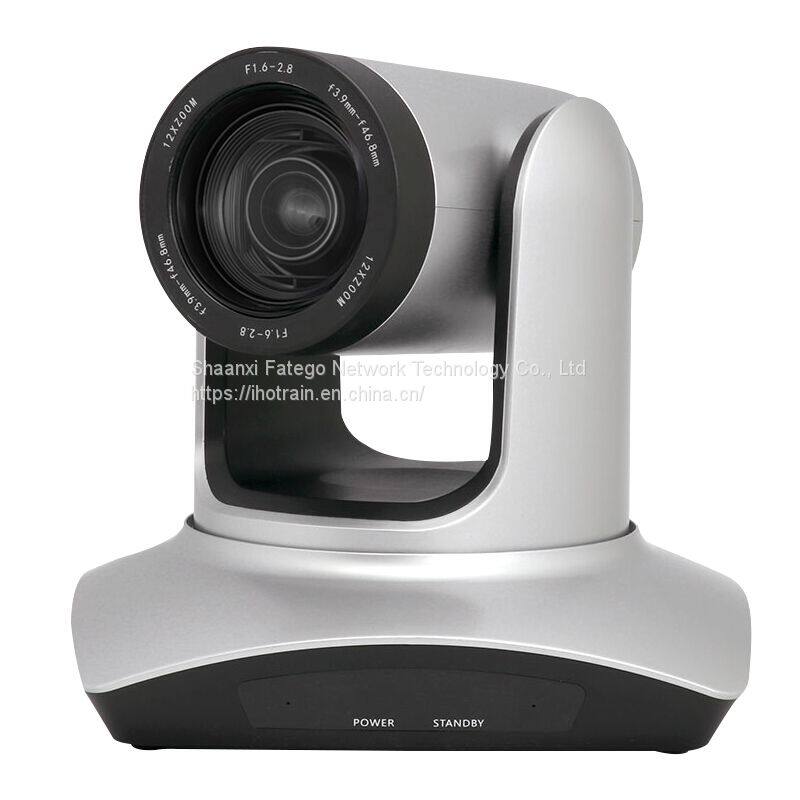

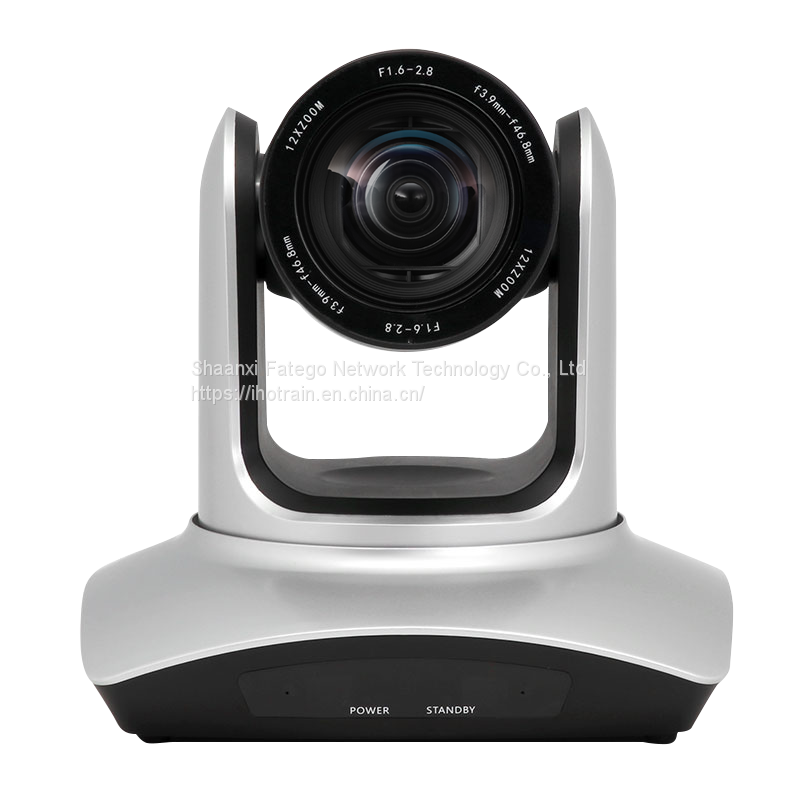

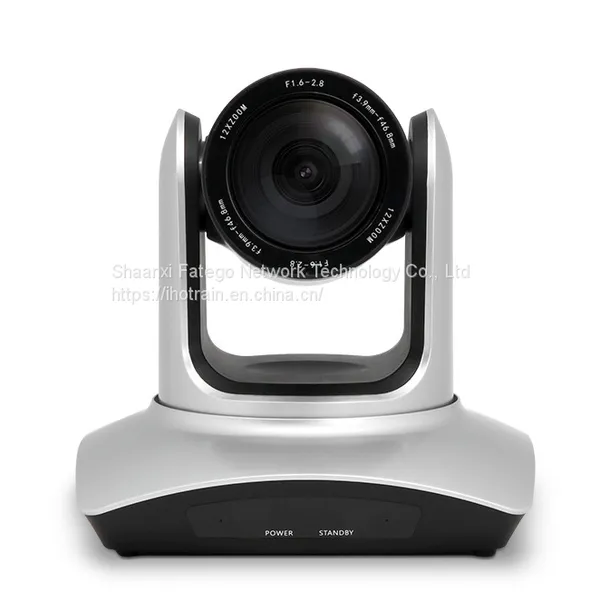

FXC-12-UH-S 12X Zoom 1080P 60Fps USB2.0 HDMI Full HD Video Conference Camera

Effective pixel:

3.5 Megapixels (3.1 Megapixels )

Image Effect

U2:MJPG/H.264:320*240,640*480,800*600,1280*720,1920*1080

HDMI:1080P60/50,1080P30/25,1080i60/50,720P60/50

Frame Frequency

60FPS for HDMI   interface

30FPS for USB2.0   Interface

Signal System

PAL/NTSC

Lens

12X optional zoom    f=3.9mm(wide angle end)～46.8mm(far end)

20X optional zoom    f=4.7mm(wide angle end)～94.0mm(far end)

Horizontal View   Angle

72.5°(W) -   7.4°(T)  / 58.7°(W) -3.2°(T)

Focus System

Auto/Manual

Minimum   Illumination

0.1 Lux

Shutter Speed

1/1 to 1/10000S

Gain

Auto/Manual

White Balance

Auto/Manual/Indoor/Outdoor

Image Effect

Full color/black and white/Electronic   flip

S/N Ratio

≥50db

Pan Rotation

355°(max.   speed:80°/s)

Tilt Rotation

﹣30° to +90° (max. speed: 60°/s)

Preset Position

9 preset positions by IR remote   controller

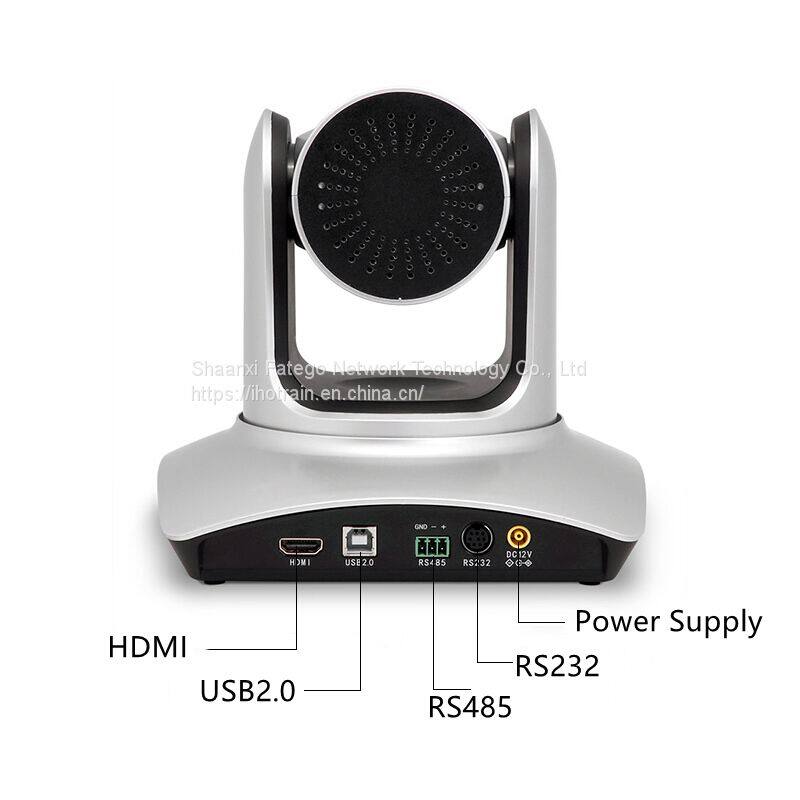

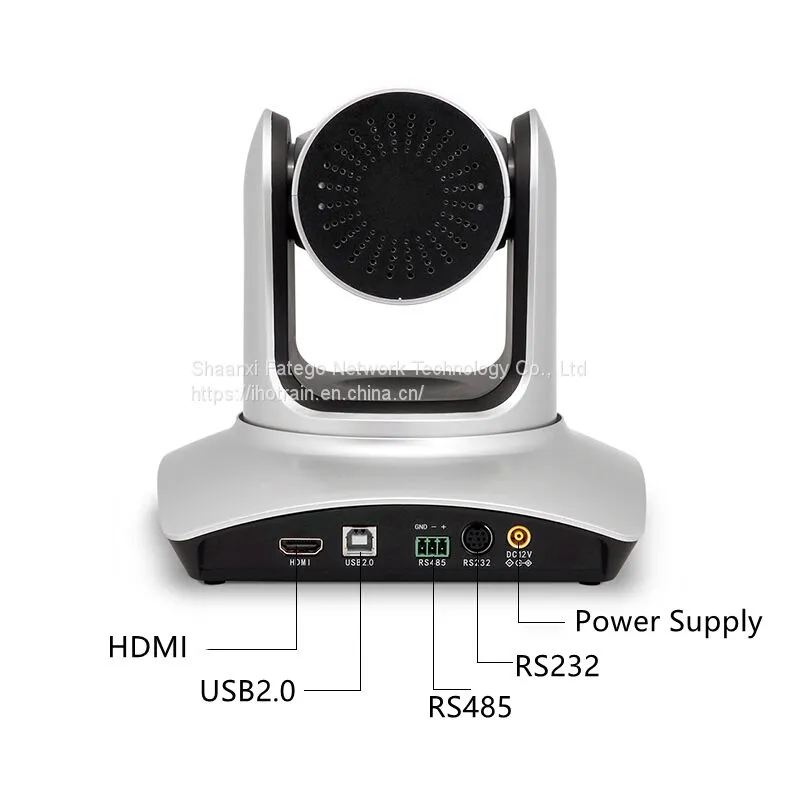

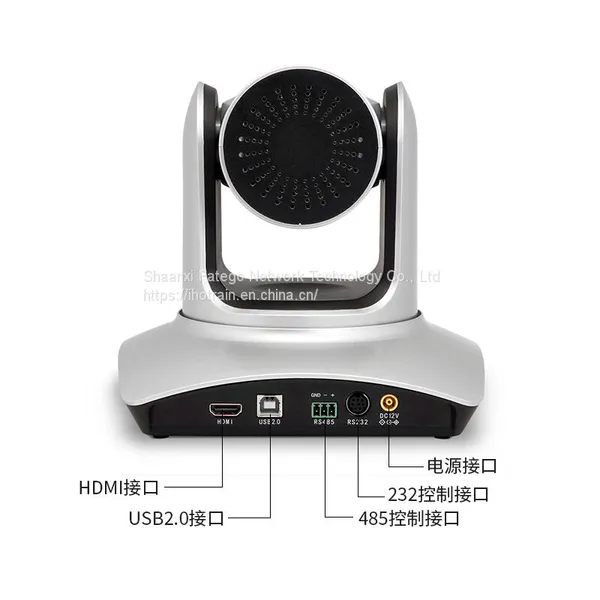

Video Output interface

HDMI, USB 2.0

Power supply

12V DC(10.8~13.0V DC)

Operating Temperature

0℃~40℃

Storage   Temperature

-20℃-60℃

Dimension

(L)181×(W)181×(H)176mm

Consumption

Max.12W (DC 12V)

Weight

1525g

Color

Silver

Control Protocol

SONY VISCA、PELCO P/D

Control Mode

RS-232/485/USB Control

Accessories

DC 12V power adapter, IR Remote,   Operation manual, HDMI Cable, USB cable, RS-232 cable, Ceiling bracket
