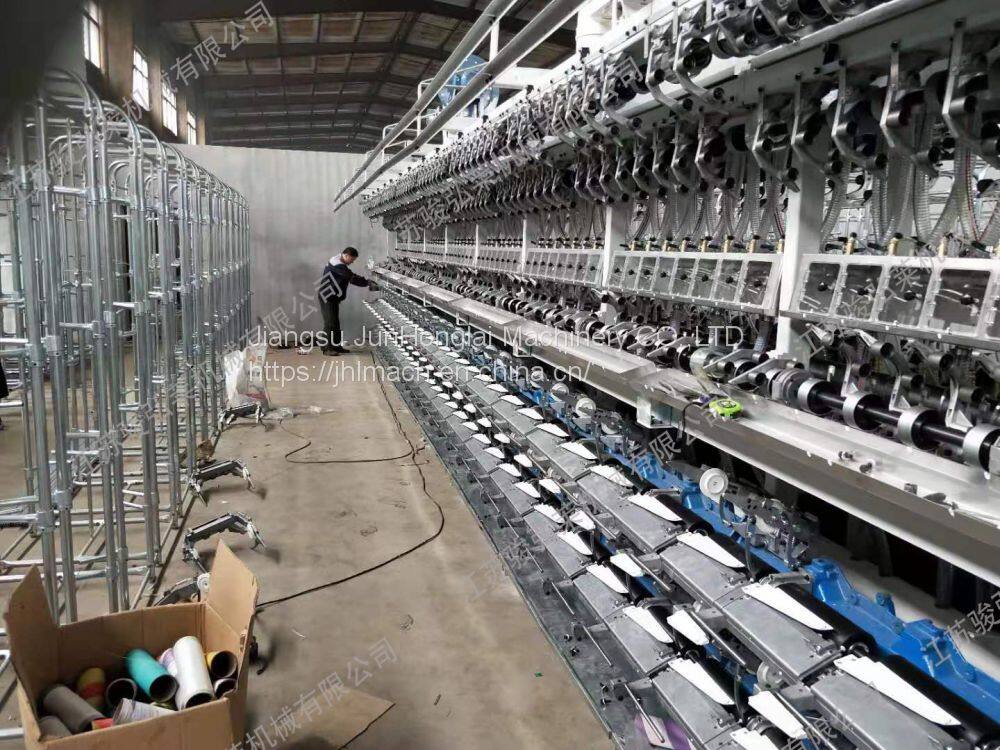

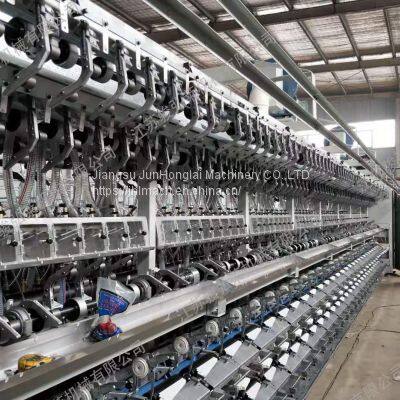

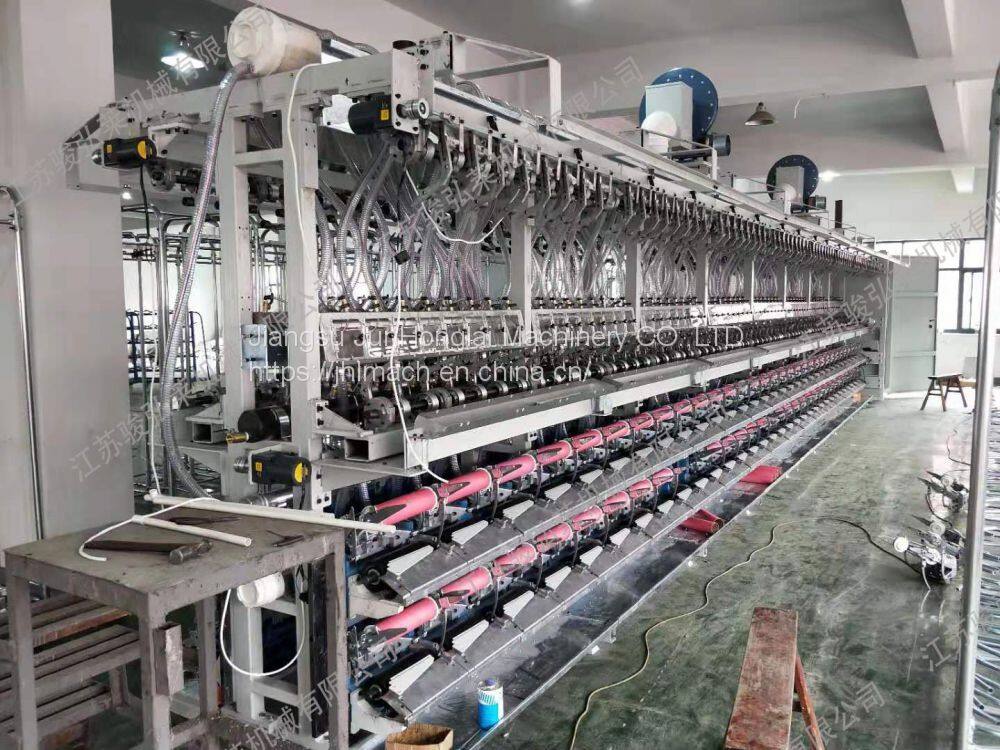

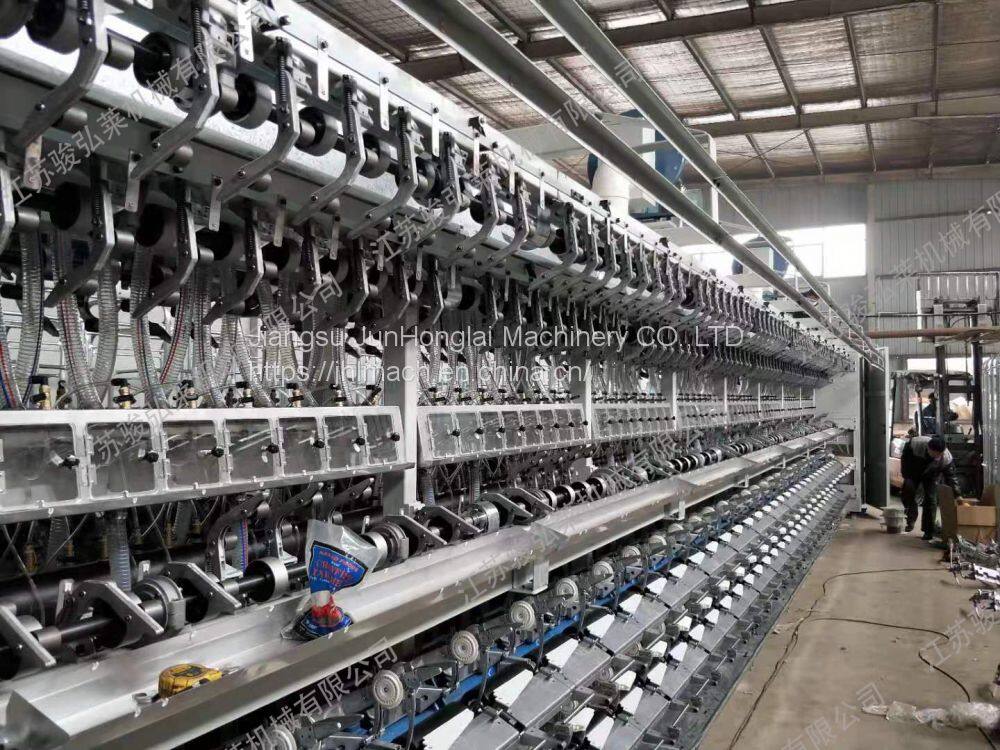

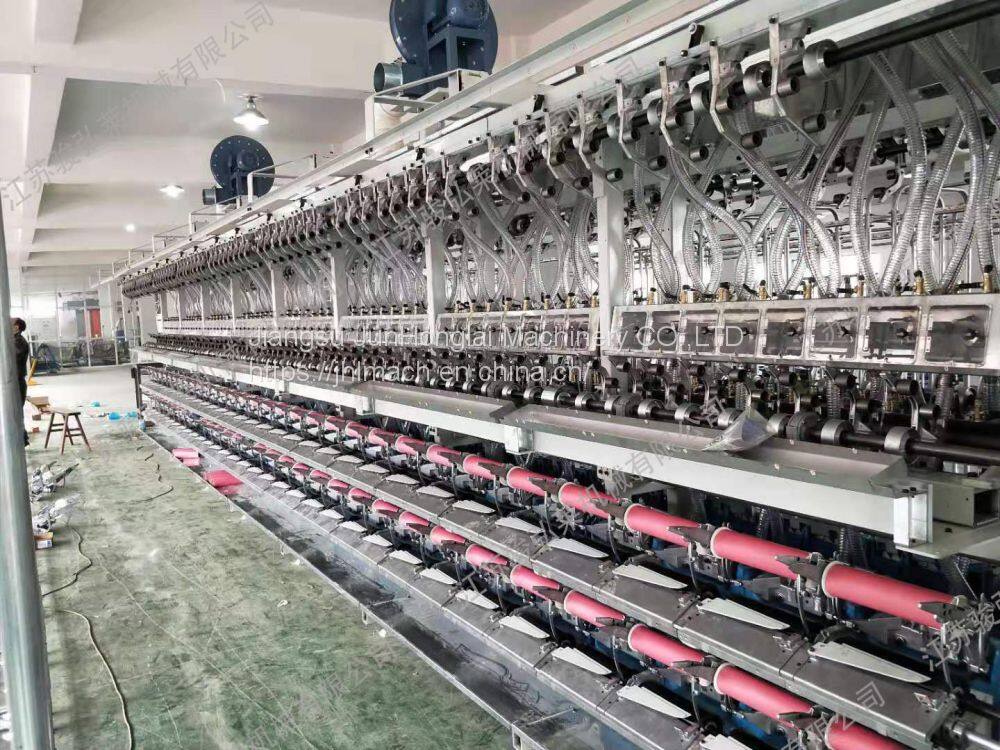

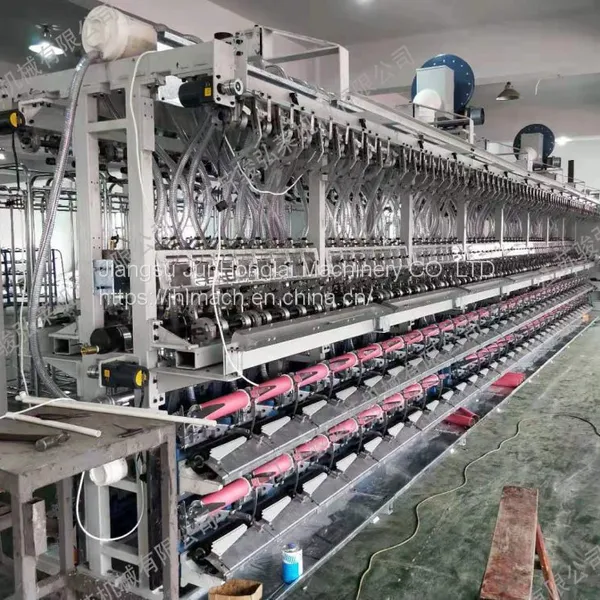

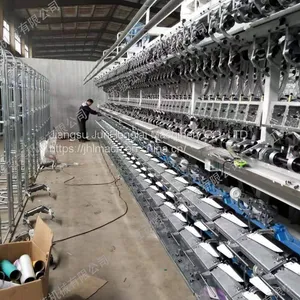

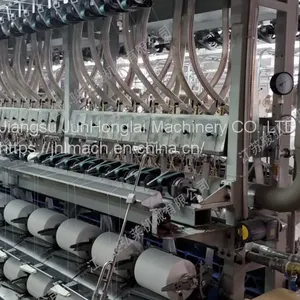

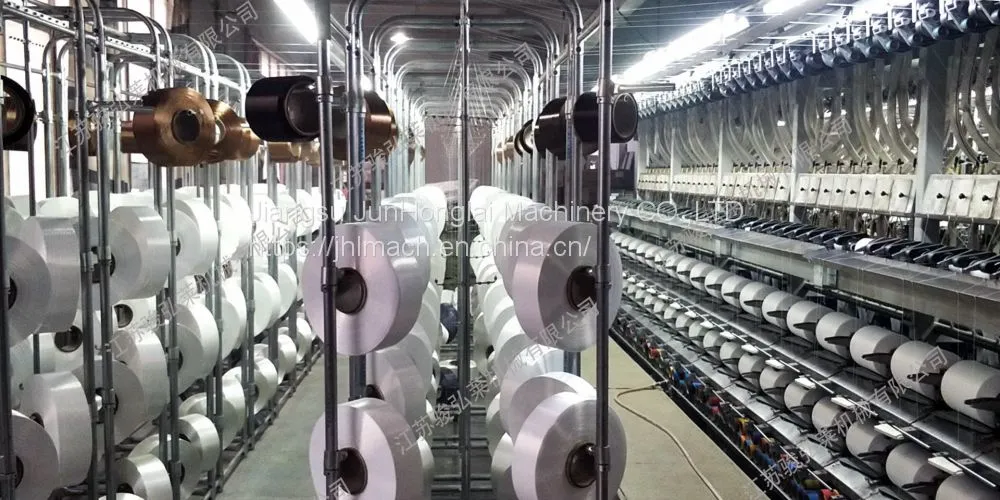

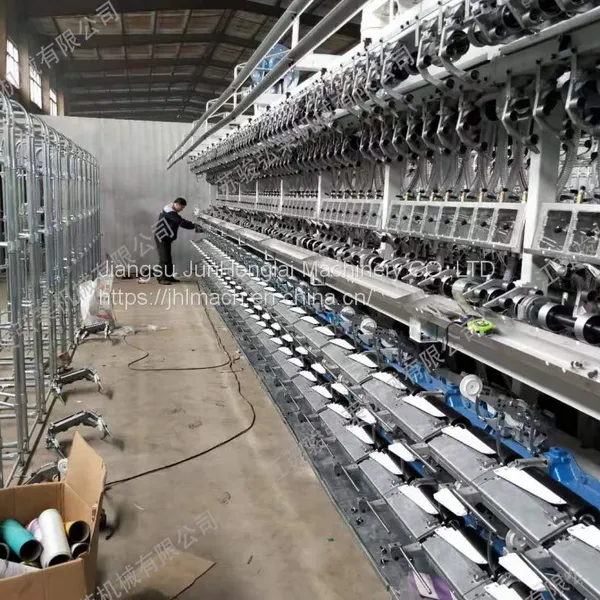

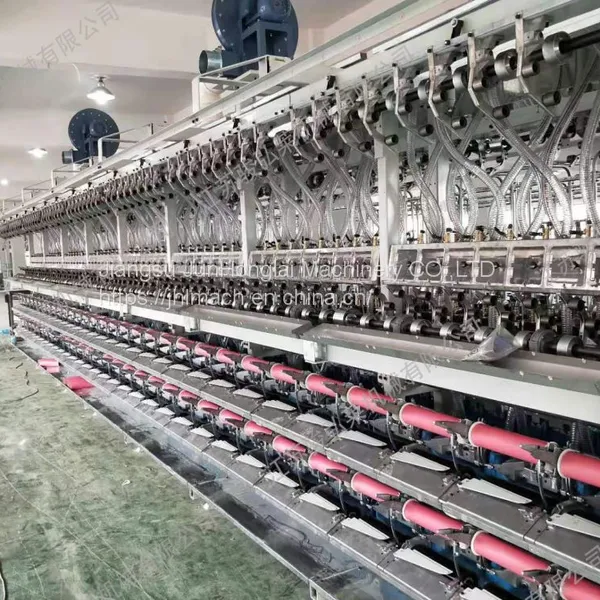

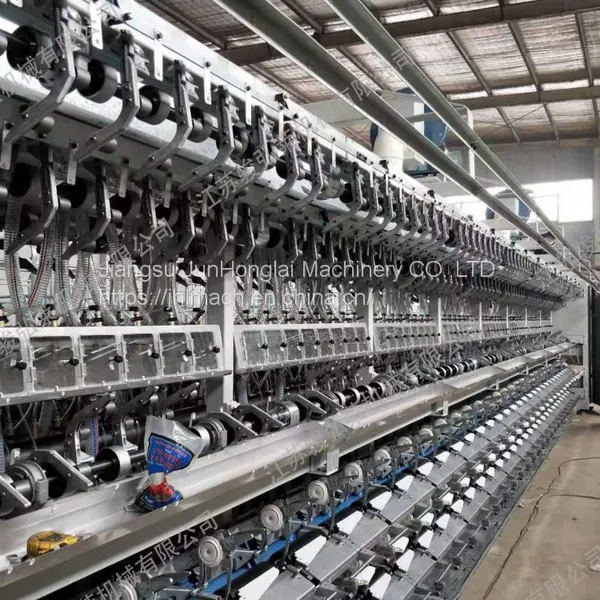

Air texturing machine

YCKB-80Introduction

Product classification:textile machinery,chemical fiber machinery

product type:Chemical fiber machinery auxiliary equipment

purpose:air textured yarn

Model:yckb-80

INGOTS:80

Purpose

Yckb-80 uses Compressed air to process the filament fed by air change, so as to obtain fluffy and make the air textured yarn have the appearance and feel of wool like,cotton like, hemp like or silk like.

This machine can process polyester,polypropylene, nylon, etc. for use in textile machines

    Main technical parameters

Machine type: double-sided operation

Segments: 5

INGOTS: 80

Visit fiber density: 600~ 2400D

Coil bobbin dimensions:Φ 75 x 290 mm

Machine power consumption: about 20KW

ACCESS COMPRESSED AIR: 8 ~ 10kg/㎡ 16m³/min

Machine Size: 9000 * 9200 * 3500(length * Width * Height)
