Automatic Closed Cup Flash Point Tester
- T/T Other
You May Like
Product Details
| Brand Name | GDMK | Place of Origin | China | |
| Model Number | Transformer Oil Tester |
Product Description
Product description:

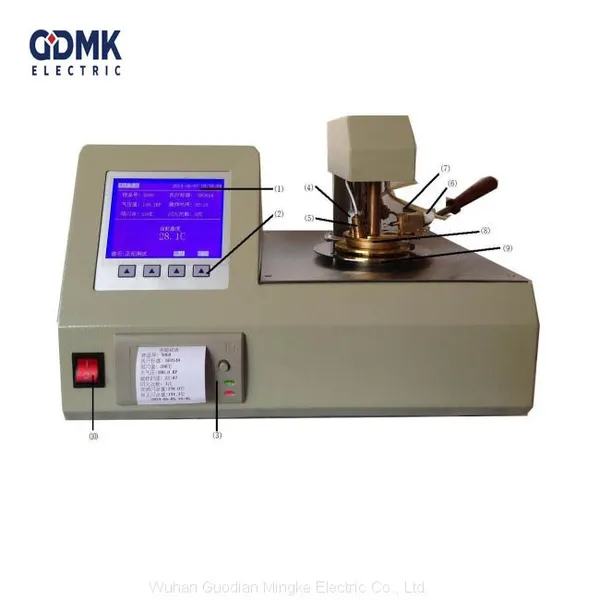

automatic closed cup flash point tester is a kind of closed cup flash point test apparatus in accordance with unique user-defined standard for the test and uses microprocessor technology, large screen LCD display in Chinese and automatically printed test results, with high automaticity and strong capability of man-machine conversation. This apparatus possesses the features of automatic lift, automatic heating and conversion, automatic lid opening and ignition including flame ignition and electric ignition, automatic termination detection and test results printing, automatic air-cooling and overall test process. It can save and delete any test result as desired.
Technical index：
Display mode：Large screen LCD display in Chinese
Measuring range: room temperature～300℃
Measuring accuracy: 0.1℃
Cooling system：Forced air-cooled
Operating temperature: 10～55℃
Operating humidity: 30～80%
Power: AC 220V±5%, 50Hz
Consumed power: 550VA
Overall dimension: 455×365×300(mm)
Precautions：
1、 The level of sample shall be flush with the filling mark in the test cup.
2、 During operation, be careful not to let detection electrode on the test cup drop off.
3、 During replacing the sample, the test cup shall be cleaned and dried and the stirrer and inductive probe are also be cleaned.
4、 When ambient temperature is above the expected flash point of sample, fill the sample into the test cup and place the test cup into the cooling water for cooling down. When sample temperature is 20℃ below the expected flash point, place the sample into the apparatus for the test.
5、 After the test is finished, be sure to close the master valve of air source to avoid the air leakage.
