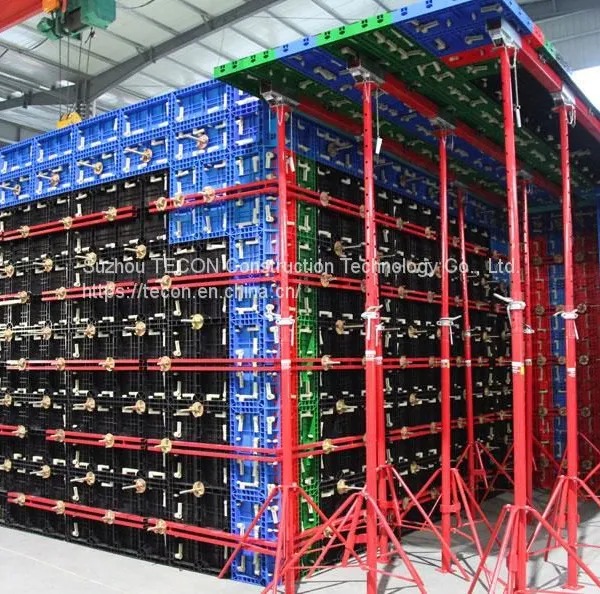

TECON Plastic formwork TP60 is recognized as the lightest formwork system due to its medium size panel design and the application of ABS (Acrylonitrile Butadiene Styrene). Besides of its light weight, it is also extremely easy for use even by unskilled workers. Walls, columns, slabs can be easily and efficiently formed with only a few panel sizes and accessories.
Plastic formwork TP60 can concrete wall, slab and column separately or modular house with one pour for complete structurePlastic
Feature of Plastic Formwork TP60+
Universal application on walls, columns and slabs etc., also modular house with one pour
Fast and extremely easy to assemble with only a few accessories, no skilled workers required
Installation without crane assistance due to its light weight
Quick clean with just water
Specification of Plastic Formwork TP60+
High strength and durable panels can reach up to 100 reuse times
Less or even no plaster after strip
Can be also used with foam concrete (light weight concrete)
Up to 3.6m high wall by one pouring, for a maximum fresh concrete pressure of 50Kn/m2
Up to 25cm slab thickness
Different column sizes at 5cm increment start from 20cm
Main Panel size and weight
Description |
Size |
Unite weight |
Panel TP120/60 |
1200x600 |
9.70 |
Panel TP40/60 |
400x600 |
3.10 |
Panel TP30/60 |
300x600 |
2.40 |
Panel TP25/60 |
250X600 |
2.10 |
Panel TP20/60 |
200x600 |
1.90 |
Panel TP18/60 |
180x600 |
1.30 |
Application of Plastic Formwork TP60+
Medium and small size residential and commercial buildings, basement, columns and modular houses etc., especially adapt to anti-corrosion needed project.
RELATED PRODUCTS of Plastic Formwork TP60+
LITE Steel Formwork, Adjustable plastic column formwork, Alu Lite formwork,
As the specialist in formwork & scaffolding engineering area, TECON devotes itself in providing better products & services for our customers in construction industry all over the world. We provide plastic formwork for concrete walls, plastic formwork for concrete slab, house slab formwork and etc. Want to know more? Please contact us.
