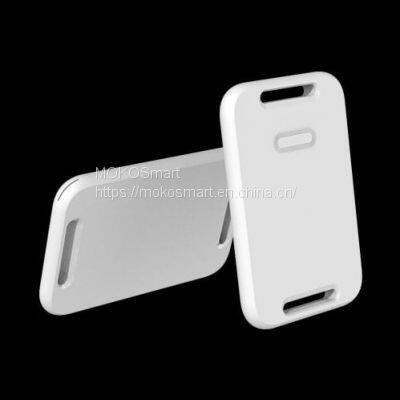

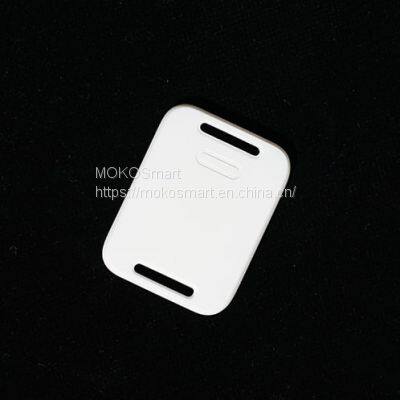

The H5 Beacon is an RFID beacon tag with a 3-axis accelerometer sensor, which can advertise iBeacon, Eddystone and Sensor data.
It has a compact and thin structure design, accurate hardware, and robust firmware, which can be used for employee attendance, access control, identity identification, location tracking, etc., and it can also realize remote cloud data management.
Each H5 RFID beacon will continue to send Bluetooth broadcasts with different IDs or MAC addresses. The Bluetooth of the MKGW1 gateway scans the corresponding broadcast data to determine that the person has entered the field and the monitored person is on the computer. You can see which IDs entered the venue before.
H5 RFID Beacon is equipped with an acceleration sensor (Accelerometer LIS3DH), which can be set through pre-set conditions: APP settings. When setting it on rest for ten minutes, the H5 will automatically sleep. If you let it set without moving, it will automatically go to sleep after reaching a predetermined length of time. When you are moving, the beacon will automatically start broadcasting again.
Features
Advertising Beacon Device
Supporting BLE5.0
Ultra-low power consumption chipset NRF52 Series
6 Slots can be configured
Support button trigger and motion trigger
Firmware updated via DFU
Supporting RFID NXP MIFARE Plus EV1 2k 7b
icon-1
RFID frequency 13.56MHZ, mobile phone sensing distance 5mm, card reader sensing distance 40mm
G-value, sampling rate and sensitivity of 3-axis accelerometer sensor can be configured
Logo customizable (MOQ 100units)
Provided with your own configuration (MOQ 100 units)
100% Configurable Parameters via MokobeaconX Pro app (Android & iOS)
