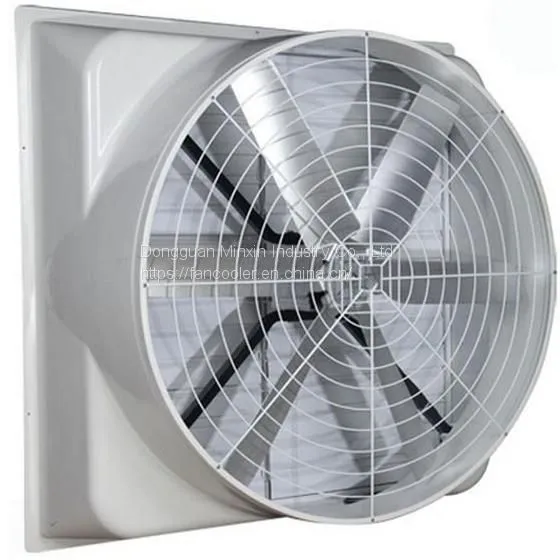

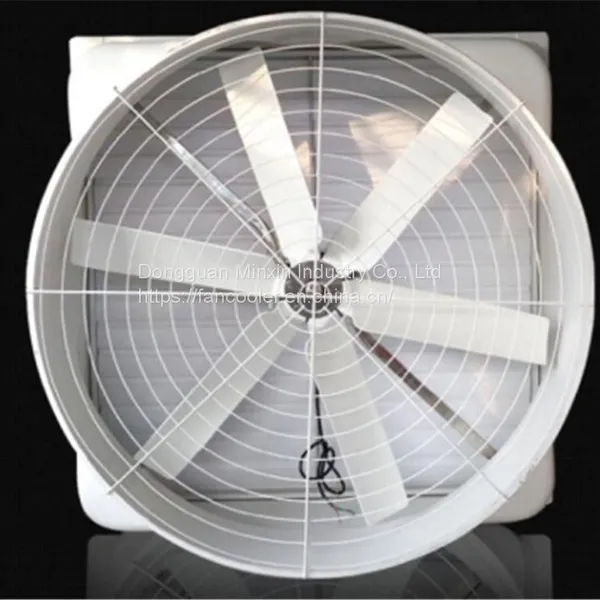

Charming Price Cone FRP Fan Wall Mount Fiberglass Ventilation Exhaust Fan for Industry
- Shenzhen Yantian
- T/T L/C Money Gram Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
-
300mm 12\" 1200CFM Small Window Exhaust Fan for Attic Kitchen Toilet Garage
-
Natural Ventilation Small Exhaust Fan
-
Basement Garage Attic Ventilation High Speed Wall Exhaust Fan
-
Air Ventilation System Industrial Extractor Fan
-
700mm 28\" 6000CFM Greenhouse Wall Mounted AC Extractor Fan
-
Industrial Ventilation Roof Mount Air Exhaust Fan With Box Type Extractor Fan
Product Details
| Brand Name | Dongguan Minxin Industrial Co., Ltd | Place of Origin | China | |
| Model Number | 850# | Type | Ventilation |
Product Description
Product Description

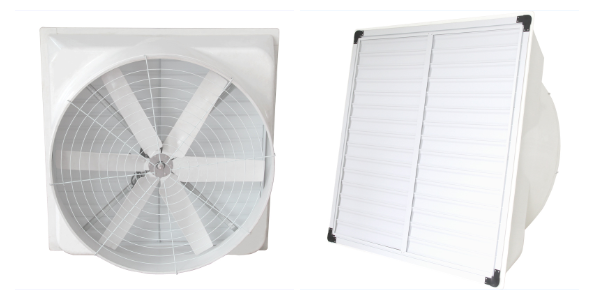

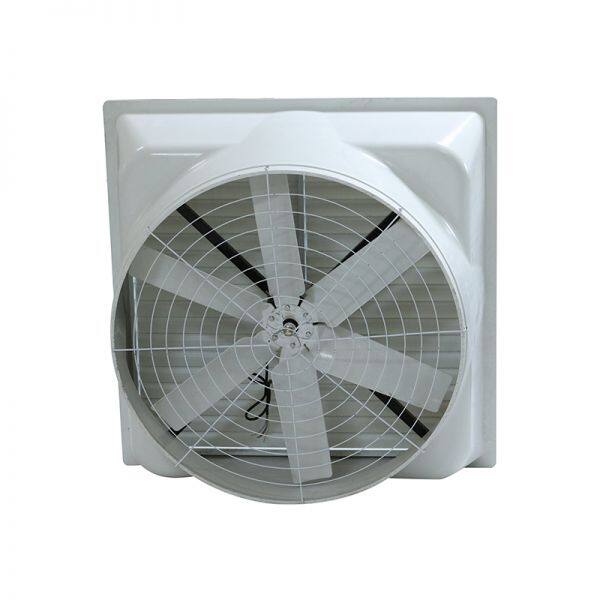

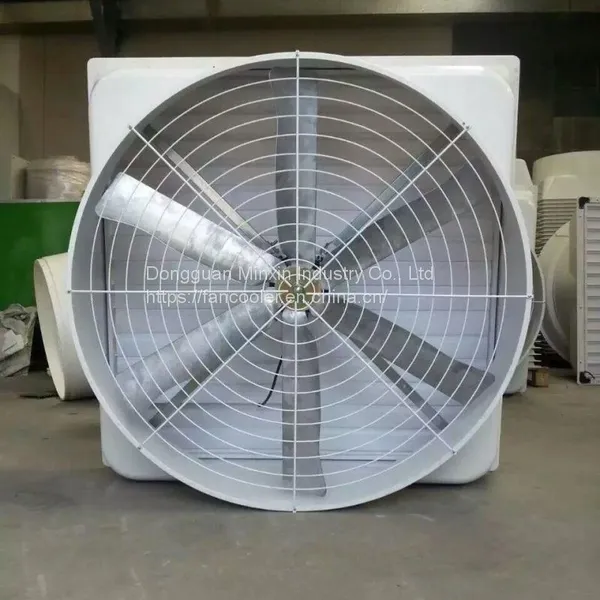

This industrial wall power fan features fiberglass reinforced polypropylene material for entire fan such as fan frame and blades, with automated shutters for anti-dust and anti-rain purpose, and wire guard for safety protection.
The standard fan is direct-driven by a 380 volt motor, voltage can be 110V, 220V, 230V, 240V or 415V, frequency can be 50Hz or 60Hz. Motors are also made in house, they are fully customizable, can come with more copper coil, and more sheet steel or silicone steel.
Corrosion Resistant Fibreglass Industrial Exhaust Blower Fan Technical Specifications | |||
Type | Standard | OEM | |
Fan Size | 28000m³/h (467m³/min or 16500CFM ) | Any size | |
Fan Diameter(inch) | 26 | 26 | |
Fan Color | White | Painted or coating in any color | |
Fan Blade Material | 1mm Fiberglass | Customized | |
Fan Frame Material | 0.6mm galvanized steel | 0.7mm, or higher thickness galvanized steel, fiberglass, or stainless steel | |
Fan Speed | 620rpm | Slower or Faster | |
Air Volume | 37000m³/h(620m³/min or 22000CFM ) | Any volume | |
Wattage | 370W | Customized motor (with more copper coil, and more sheet steel or silicone steel) | |
Voltage | 380V (three phase) | Customized, can be 110V or 240V, or other | |
Noise | more than 53 db | ||
Motor | Direct-driven | Belt-driven | |
Brand | Minxin Industrial | Private labeling | |
Certifications | CE，CCC | More certifications upon customers’ request, such as UL/CETL, SAA, KV-MARK, GS, L-MARK, SASO, etc. | |
Details Images

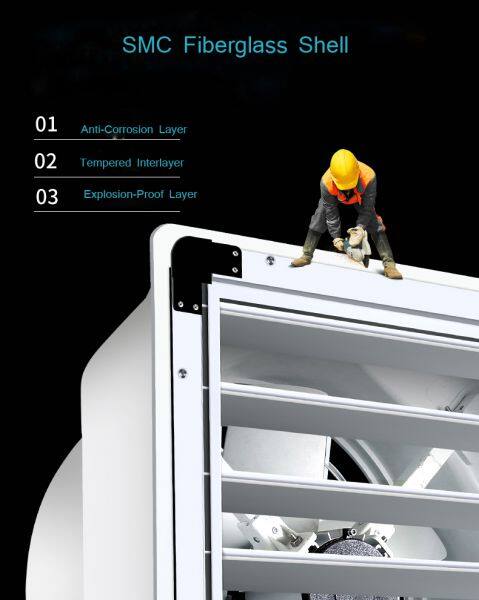

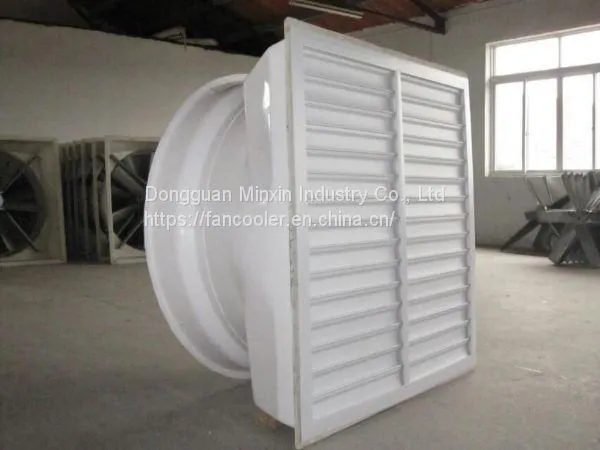

| Shell of Fiberglass | Automatic open-closed shutter |
| Acid and Alkali Resistance, Anti- Corrosion, Anti-Aging | Dustproof, waterproof, windproof |
Size Information
Specifications of RFP Fiberglass Exhaust Fans of All Sizes
Model | Dimensions | Fan Diameter | Air Flow | Voltage/Frequency | Power | Fan Speed | Noise | Net Weight |
850# | 850x850x480mm (33”x33”x19”) | 26 | 28000m³/h (467m³/min or 16500CFM ) | 380V/50Hz (customizable) | 370W (8P) | 620rpm | ≥53db | 45kg |
1060# | 850x850x550mm (33”x33”x22”) | 33 | 32000m³/h (533m³/min or 19000CFM ) | 380V/50Hz (customizable) | 550W (10P) | 520rpm | ≥55db | 50kg |
1260# | 1260x1260x560mm (50”x50”x22”) | 41 | 37000m³/h (620m³/min or 22000CFM ) | 380V/50Hz (customizable) | 750W (10P) | 520rpm | ≥65db | 65kg |
1460# | 1460x1460x580mm (57”x57”x23”) | 49 | 45000m³/h (750m³/min or 26500CFM ) | 380V/50Hz (customizable) | 1.1KW(12P) | 450rpm | ≥65db | 75kg |
Packing&Shipping
The exhaust fans can either be shipped in unassebled way to save space and shipping cost, or shipping the assembled exhaust fans to save trouble and time.
Unassembled Exhaust Fan Parts Assembled Exhaust Fans
| The unassembled fan parts can be shipped to customers for assembly, it will help to save shipping cost. | The assembled exhaust fans can be sent to customers for immediate installation. |
After Sales Service
One Year Warranty, Lifetime Aftersale Service
We offer 1 year warranty on the motors and the entire fan, and we will provide free spare parts for any defective models within the warranty period.
