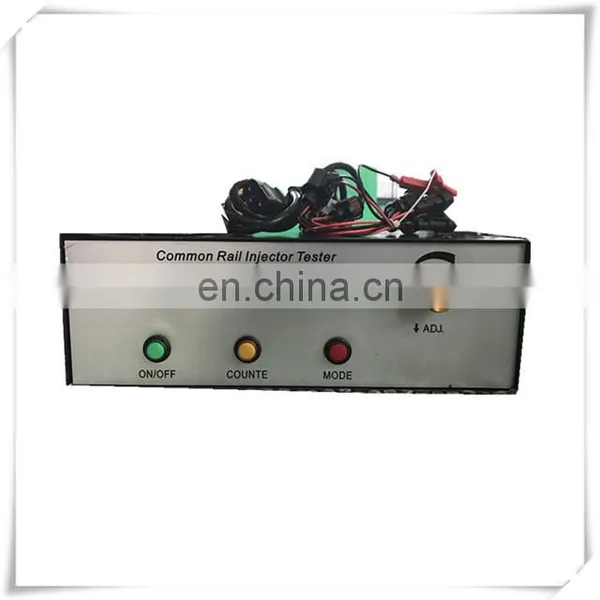

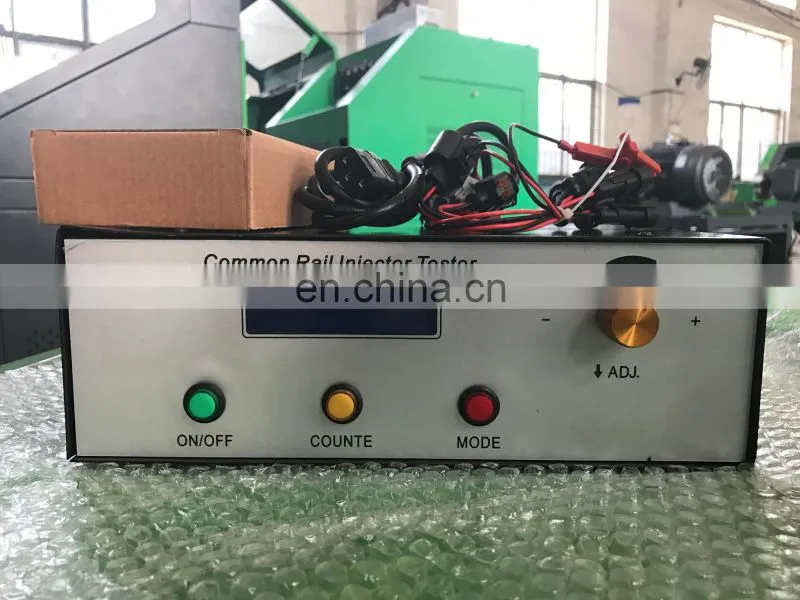

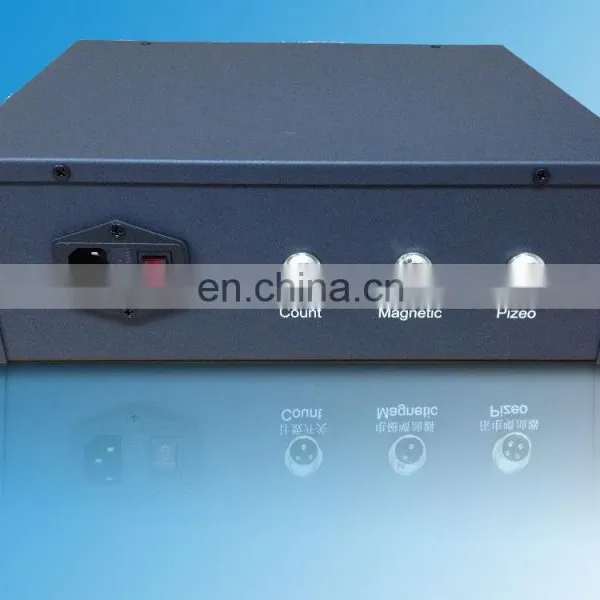

CR1000a diesel fuel common rail electronic injector tester
CR1000A, the repair tester to simulate the engine Control Unit (ECU) driving signals for a common rail injector of either solenoid technology or piezo technology,
made by Boch, Delphi, Denso and Siemens. The user is able to set the control parameters of fuel injection drive signals.

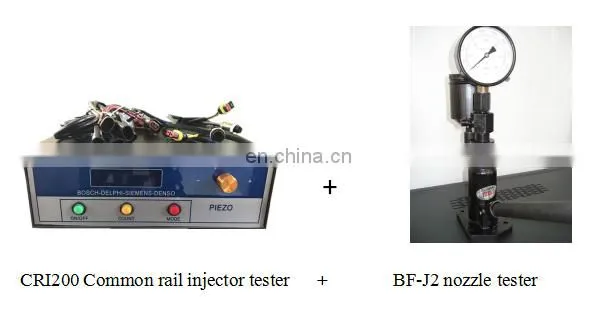

By combining of CRI200 tester and a high pressure fuel source, which may be a mechanical manual pump, or an electrical motor driven pump,
or a pneumatic driven pressure booster, to feed the CR injector, the user is able to fulfill the tasks, such as nozzle spray pattern and injector back leakage,
to check the CR injector with either solenoid or piezo technology.
Common rail injector tester, for testing Boch, Delphi, Denso common rail injectors. Including all standard accessories
Items |
CR1000A |
function |
Test atomization effect, pilot injection, discharge point and full load point. |
Type of the motivation |
BOCH,DENSO,DELPHI,PIEZO modes made in China and general |
Max. pulse width |
10MS |
Max. frequency |
30HZ |
power |
AC110~240V 50Hz |
Operating temperature |
-30——70C° |
Packing size |
110*250*190mm |
weight |
5kg |
1. Modulated driving signal to ensure the safety of the solenoids of the injectors |
| 2. Injector driving signal Adjustable frequency and pulse width |
| 3. Short circuit protection for solenoid driving signals |

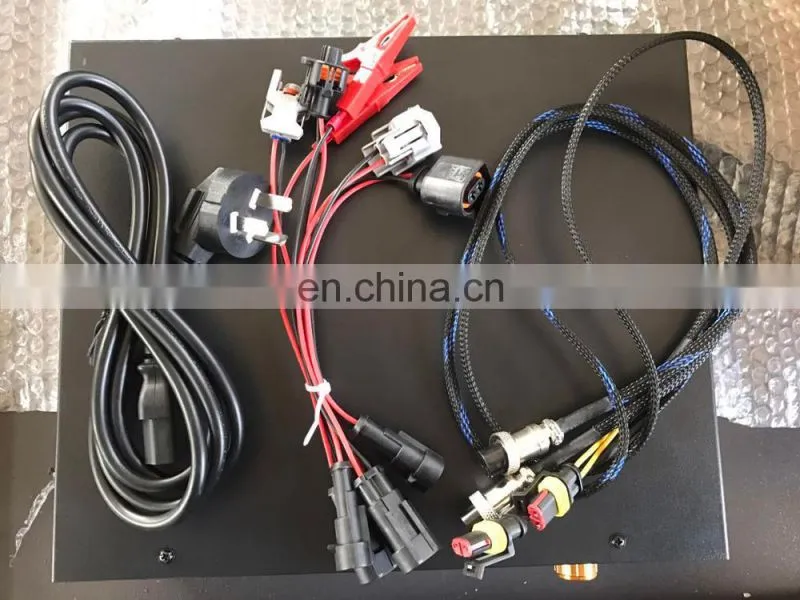

| 4. Rich accessories, ready to test Boch, Denso and Delphi injectors |
After-sale service:
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. Spare parts replacement and repair service provided.
Except this, we also can offer you many other kinds equipment and tools.
If you are interested, please click the following model.
1. Common rail test bench ( BF1166, BF1176, BF1186, BF1178, EPS100, EPS200, PQ1000, etc)
2. Common rail tester ( CRI200,CRI700, CRP850, CRS300, VP37 pump tester, EUI EUP tester,etc)
3. Diesel pump test bench ( 12PSB-BFC, 12PSB-BFB, 12PSB-BFD,BF1618 )
4. Some tools and spare parts ( Diesel nozzle tester, Diagnostic scanner, Common rail injector repair tools, Ultrasonic cleaner, Diesel tank cleaner, etc )
>>> Packaging : Standard carton package
>>> Delivery: within 4 days after receiving the deposit.
FAQ
Q1: What is your Trade Terms?
A: FOB CFR CIF EXW DDP and DDU
Q2: What is your payment terms?
A: T/T,Western Union ,PayPay,Escrow and L/C
Q3: What is your delivery time?
A: Test bench is 7-10 working days,tester, diagnostic tool and injectors,we have stock.
Q4: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer,if you have any requirements you can contact us directly~

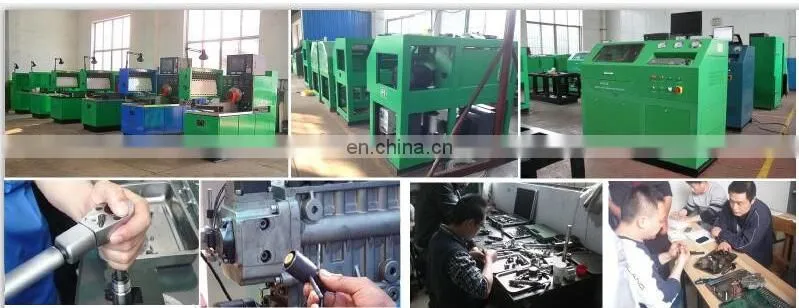

Taian North Test Equipment Factory is appointed as a professional manufacturer of Common rail test bench,Diesel fue injection pump test bench,Common rail pump tester.we gets the technique
support from Tianjin university, Tianjin University of technology, Shandong University of science and technology. With more than 10 years export experience, we got high reputation from our customers.
