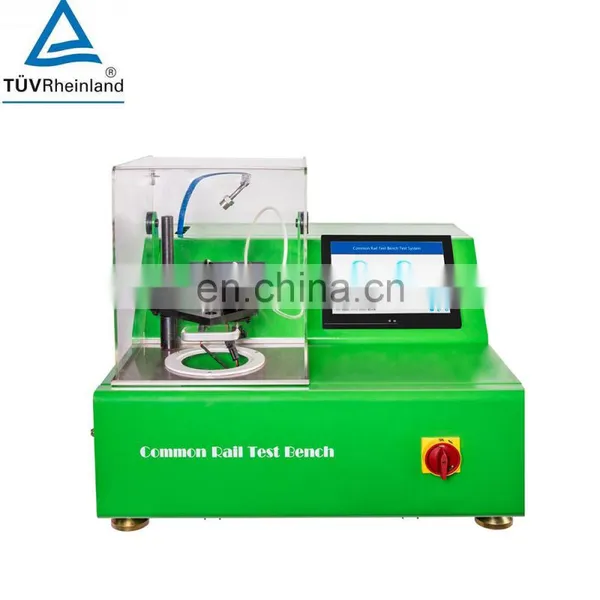

EPS205 / BF200 common rail injector tester with small size EPS205 tester for common rail injector testing Product introduction
common rail injector tester BF200 is used to test the performance of high Pressure common rail injector for B,OSCH,SIEMENS,DEL.PHI,D,ENSO,ect. It is controlled by industrial computer,windows operating system. The oil quantity is measured by sensor and
displayed on computer screen.
1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4tactile LCD screen;
3. More than 2700 kinds of injecotors data can be searched and used.
4. Data can be searched and saved.
5. It is installed B,OSCH common rail pump to provide 0~1800 bar of rail pressure.
6. Rail pressure can be tested in real time, it contains the high-pressure protection function
7. Pulse and frequency of the injector drive signal can be adjusted.
8. Injection time can be setted.
9. Protection function of short-circuit.
10.Precise measurement, easy operation, low noise.
1. Test injector brands:B,OSCH, SIEMENS, DELPHI, DENSO and piezo injectors.
2. Test 1 piece of injector.
3. Test the pre-injection oil quantity of common rail injector.
4. Test the max. oil quantity of common rail injector.
5. Test the cranking oil quantity of common rail injector.
6. Test the backflow oil quantity of common rail injector.
7. Test the average oil quantity of common rail injector.
8. Test the seal performance of common rail injector.
9. Data can be searched and saved.
|
1. Pulse width |
0.1~20ms |
|
2. Continuous injection times |
0~1000 |
|
3. Fuel temperature |
40±2°C |
|
4. Rail high pressure |
0~1800 bar |
|
5. Test oil filtered precision |
5μ |
|
6. Input power |
380V/50hz/3phase or 220V/60hz/3phase |
|
7. Rotation speed |
0~3000RPM |
|
8. Oil tank capacity |
16L |
|
9. Overall dimension(MM) |
865×775×1430 |
|
10. Weight |
150KG. |
>>> Packaging : wooden case with water-proof membrane
>>> Delivery: within 15 days after receiving the deposit
Taian North Test Equipment Factory is appointed by the country as the professional manufacturer of oil injection pump test bench. It gets the technique support from Tianjin university, Tianjin University of technology, Shandong University of science and technology, With more than 10 years export experience, and get high reputation from our customers.
