Product Overview

Small size good quality BF1176 diesel injection injectors test machine common rail testing machine

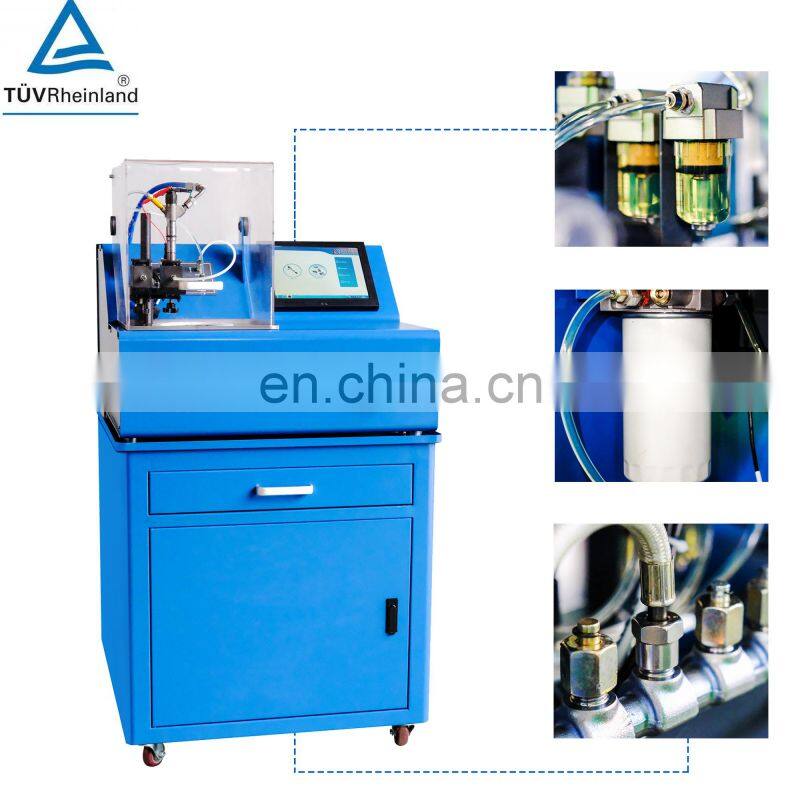

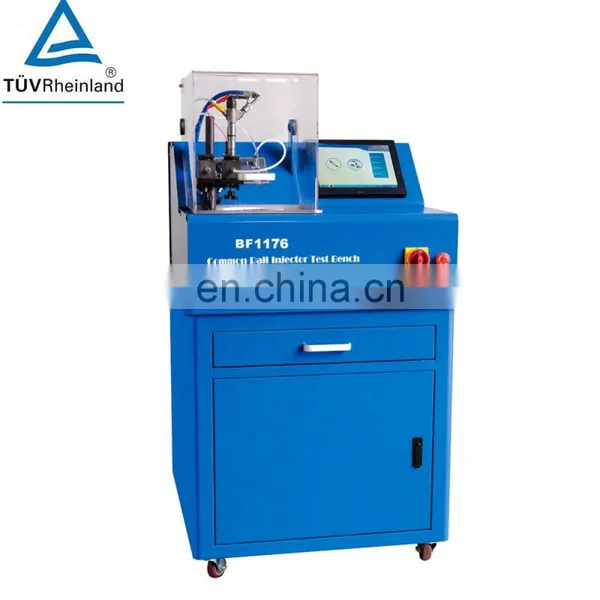

BF1176 Common rail injectors test bench is used to test the performance of high pressure common rail injectors. It is controlled by industrial computer, windows operating system. The oil quantity is measured by sensor and displayed on computer screen.
FEATURES AT A GLANCE
BF1176 common rail injector test bench is used to test the performance of high-pressure common rail injector from BOSCH , DELPHI , SIEMENS, DENSO and so on ...
It's controlled by industrial computer, embedded operating system.
The testing is measured by flowmeter automatically and displayed on the computer screen .
The equipment use the BOSCH CP3 pump and the Australian flowmeter. The test result are accurate and stable .
Note: If 220V power supply , the pump will be BOSCH CP1 .

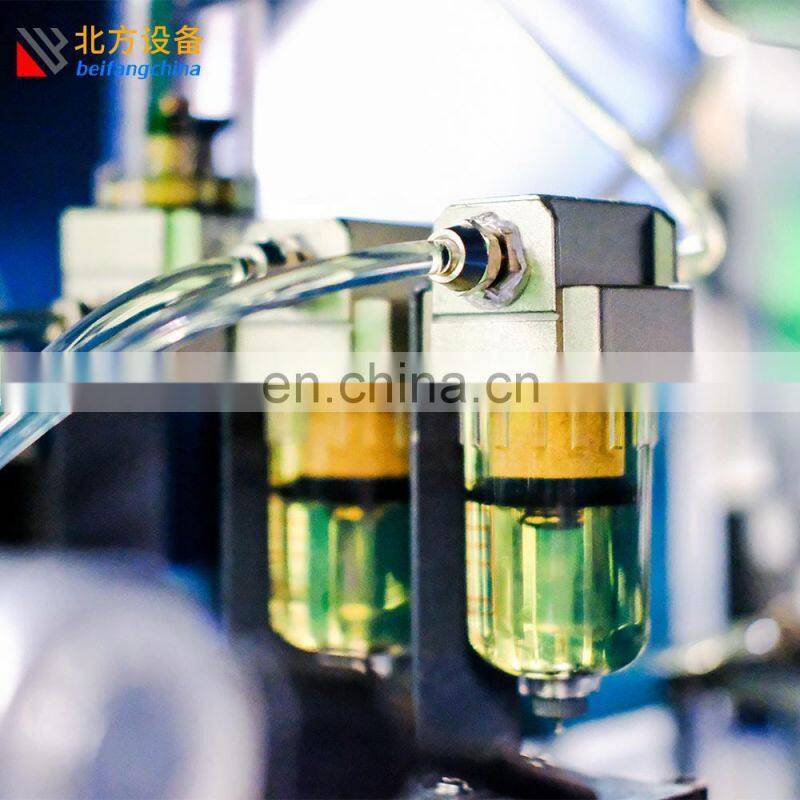

refined filtration

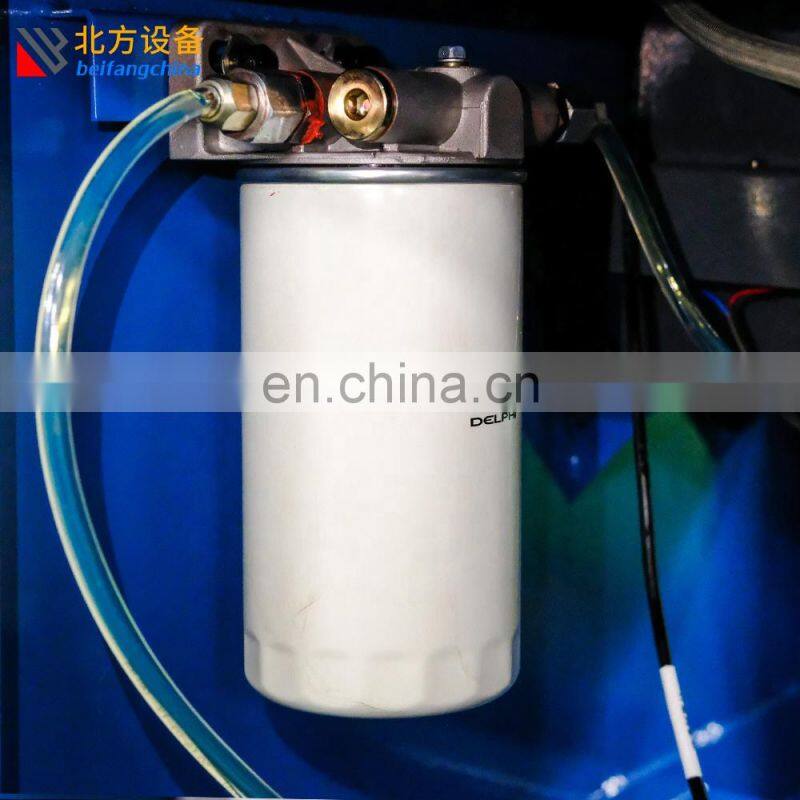

First step filation

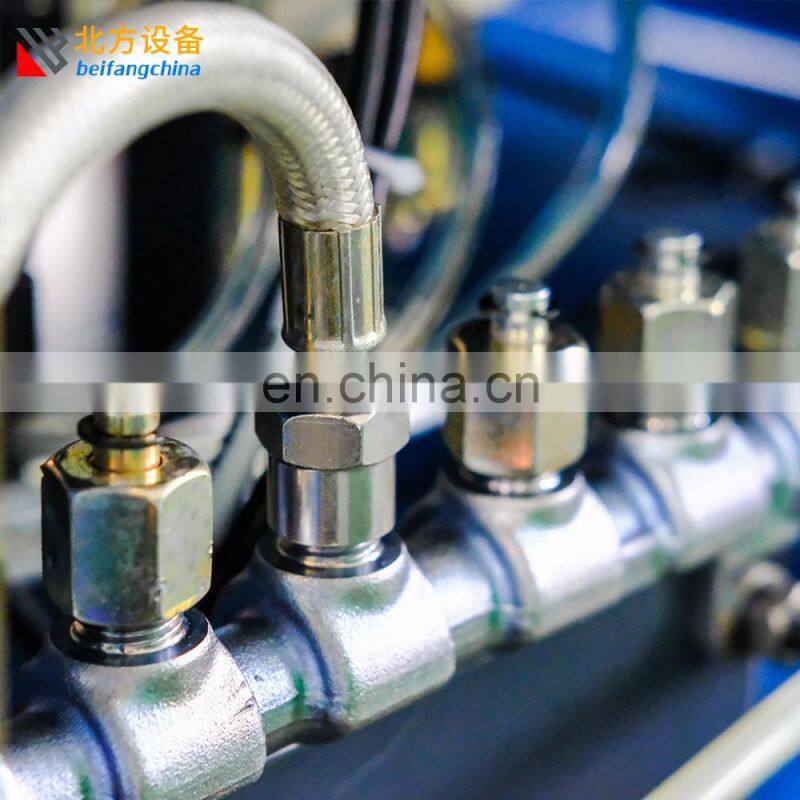

Common rail pipe
PRODUCT SPECIFICATIONS
Product
High pressure common rail test bench
Model
BF1176
Continuous injection times
0~1000tiimes
Fuel temperature
38±2°C
Rail high pressure
0~2300 bar
Test oil filtered precision
Less than 5μ
Input power
380V/50hz/3phase or 220V/60hz/3phase
Rotation speed
0~3000r/min
Oil tank capacity
15L
Overall dimension(MM)
920*870*1620mm
Weight
350Kgs
Feature
1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4tactile LCD screen;
3. More than 2700 kinds of injecotors data can be searched and used.
4. Data can be searched and saved.
5. It is installed B,OSCH common rail pump to provide 0~1600 bar of rail pressure.
6. Rail pressure can be tested in real time, it contains the high-pressure protection function
7. Pulse and frequency of the injector drive signal can be adjusted.
8. Injection time can be setted.
9.Protection function of short-circuit.
10.Precise measurement, easy operation, low noise.

Functions:
1.Test all brands common rail injectors
2. Test 1 piece of injector.
3. Test the pre-injection oil quantity of common rail injector.
4. Test the max. oil quantity of common rail injector.
5. Test the cranking oil quantity of common rail injector.
6. Test the backflow oil quantity of common rail injector.
7.Test the average oil quantity of common rail injector.
8. Test the seal performance of common rail injector.
9. Data can be searched and saved.
10. Clean the common rail injector.
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS

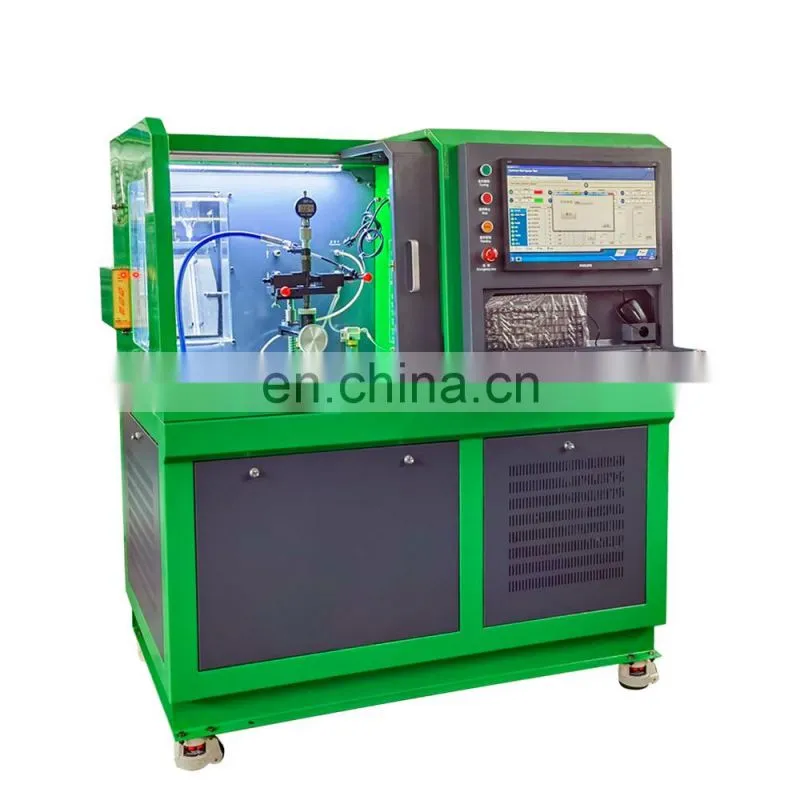

BF209A CEDI test bench

Newest technology common rail injectors testing machine

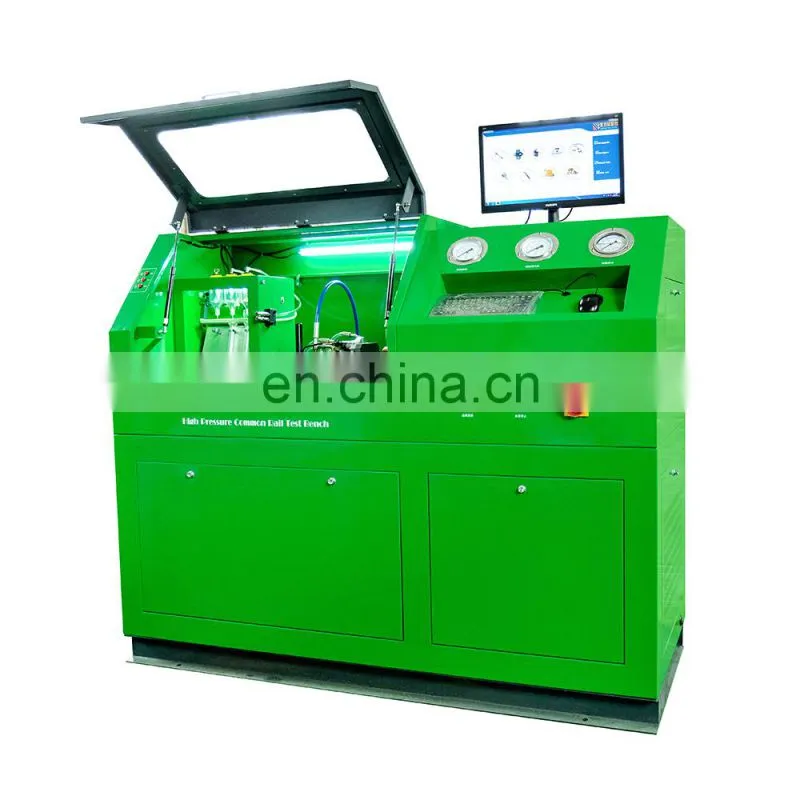

BF1178

It can test the common rail injectors and pumps .
FAQ
1.Are you a manufacturer or trade company?
We are direct manufacturer with more than 20 years experience

2.What certification do you have ?
We have CE, ISO SGS Certification etc

3.How about the delivery time?
10 days after getting deposit

4.Do you also sell related accessories and repair tools?
Yes, except test bench,we also produce spare parts and repair or measuring tools, also offer factory price for you

5.Do you have foreign agent ?
Sure, we have built some several agents in the world and you can also be our agent.

6.Which port near your factory?
Our factory near the Qingdao port ,so we can ship goods to Qingdao port within one day
