Help CenterSHIELD 13 RUGGED HF RFID TAG
Related Products

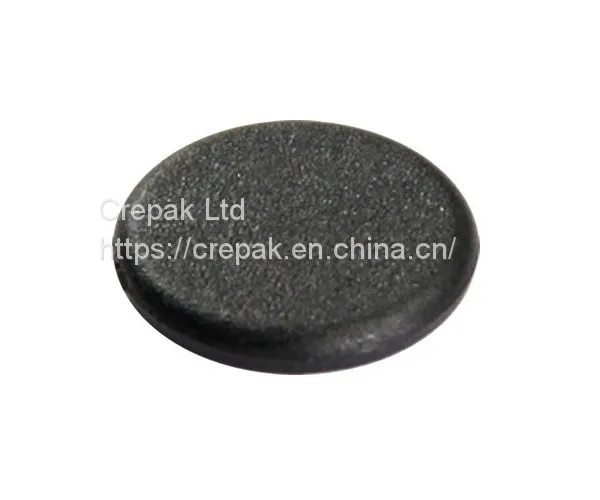

The Shield 13 is an HF RFID tag designed for industrial application, it's double injected rugged housing enables IP68 protection and is resistance to dusty, vibration, washing, chemical, high temperature, and other harsh environments. the chip of Shield 13 is bonded onto an automatic winded antenna so that it can be durable and performs consistently, standard user memory of Shield 13 is 1Kbit and can be extended to 8K byte by changing big memory chips.
Shield 13 can be attached to assets via adhesive and epoxy, this rugged HF RFID tag features a 1-20cm reading range and carries a more than 10 years lifecycle, is an ideal solution for automation production, work in process management and assets tracking;
Features and Benefits of Shield 13 HF RFID Tag
Rugged double injected housing for HF tag enables industrial use.
The packaged chip and wire-bonding process ensures reliability and durability.
Automated winded antenna supports consistency.
Multiple attaching ways to support the convenient deployment.
Customized character and barcodes can be offered.
Crepak's Shield 13 HF RFID Tags can be used as heat resistant RFID tags in the high-temperature environment.
Applications of Shield 13 HF RFID Tag
Work in process management
Industrial automation
Tour inspection
Laundry management
Assets management in a harsh environment
Specification of Shield 13 Rugged HF RFID Tag
Mechanical Specification
Material |
PPS/PPA |
Size |
Φ13x2mm |
Weight |
0.8g |
RF Specification
Frequency |
13.56MHz |
Protocol |
ISO 15693 |
Reading range |
1-20cm depends on reader |
Chipset |
Icode Slix2 |
Memory |
64 bit UID |
2560 bit user memory |
Environment Specification
Operation temp |
-40 – 85℃ |
Store temp |
-40 – 260℃ |
Protection |
IP68 |
Shock and vibration |
MIL STD 810-G |
Mounting way |
Adhesive, Epoxy |
Certification |
Meet CE requirement |
Warranty |
12 months after delivery |
Lifecycle |
More than 10 years |
Part No.
Icode Slix2 |
1211111 |
Applications of Shield 13 HF RFID Tag
* Work in process management
* Industrial automation
* Tour inspection
* Laundry management
* Assets management in a harsh environment
Crepak is a professional rfid manufacturer. We provide RFID Tags, RFID Readers, rfid scanner and so on. Want to know more? Please contact us.
