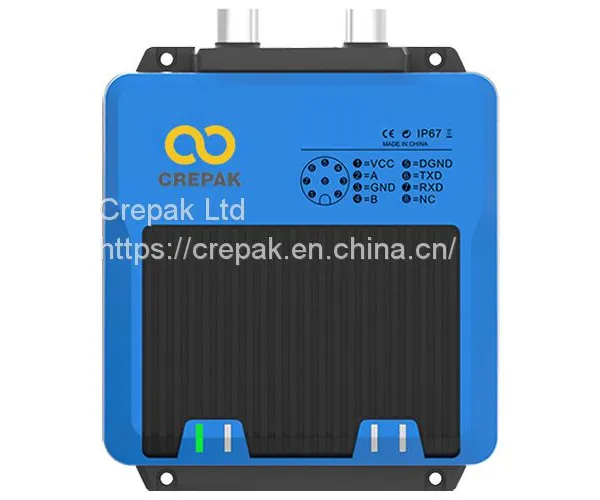

Help CenterSENTINEL F410 FIXED HF RFID READER
Related Products
Sentinel F410 is an HF reader developed for middle-distance identification in an industrial environment, its square size ensures easy installation in the production line, also it integrates a high-performance reader module and antenna which ensures stable reading and easy implementation, to be applicable in industrial automation scenario, it supports Modbus, Canbus, IO-Link, AS-I, and Modbus TCP, EtherNet/IP, Profinet, EtherCat communication protocols, this compact HF reader features an up to 350mm reading distance and carries a more than 10 years lifecycle. Sentinel F410 is an ideal HF reader for industrial automation, work in process management, warehouse management, cutter management, and data collection.
Features and Benefits of Sentinel F410 HF RFID Reader
Rugged aluminum steel housing enables industrial application and continuous application
Square size is applicable for production line installation
Highly integrated reader module, antenna enables fast and stable operation
Up to 350mm reading distance
Support multiple communication protocols including Modbus, Canbus, IO-Link, As-I and Modbus TCP, EtherNet/IP, Profinet, EtherCat
Applications of Sentinel F410 HF RFID Reader
Industrial automation
Work in process management
Warehouse management
Specification of Sentinel F410 Fixed HF RFID Reader
Mechanical Specification
Material |
Aluminium + ABS |
Size |
120x120x45 mm |
Mounting size |
4xφ3.2 mm |
Cable connector |
M12x1mm |
Weight |
350g |
RF Specification
Frequency |
13.56MHz |
Air interface |
ISO 15693 |
Reading distance |
0-350mm(depends on tags) |
Reading speed |
15ms |
Writing speed |
18ms |
Region |
Worldwide |
Electrical Specification
Working voltage |
DC 24V |
Power |
4.5W |
Communications interface |
RS232/RS485 |
Communication protocol |
Modbus, Canbus, IO-Link, AS-I |
Modbus TCP, EtherNet/IP, Profinet, EtherCat | |
ESD |
Air discharge ± 15KV, contact discharge ± 8KV |
Indicator |
one power status, one RFID working status |
Environment specification
Operating Temp |
-20-85℃ |
Storage Temp |
-20-90℃ |
Hummidity |
10%-90% |
IP Protection |
IP67 |
Dropping test |
1.2m on the conrete |
Part No.
Modbus |
2214021 |
Canbus |
2214022 |
IO-Link |
2214023 |
AS-I |
2214024 |
Modbus TCP |
2214025 |
EtherNet IP |
2214026 |
Profinet |
2214027 |
EtherCat |
2214028 |
Applications of Sentinel F410 UHF RFID Reader
* Industrial automation
* Work in process management
* Warehouse management
Crepak is one of professional rfid providers. We provide RFID Tags, rfid readers and so on. Want to know more? Please contact us.
