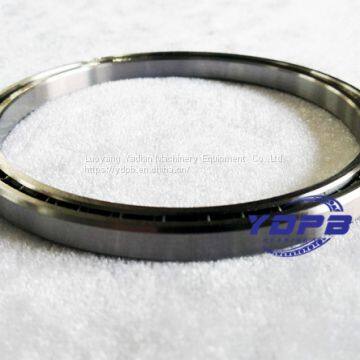

KC047XP0 Thin Section Bearings for Robotic Silicon Wafer Processing
US$ 1 - 100000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OEM
Place of Origin:
China
Model Number:
KC047XP0
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
KC050XP0 Thin Section Bearings for Robotic Silicon Wafer ProcessingUS$ 1 - 100000MOQ: 1 Piece -
KC055XP0 Thin Section Bearings for Robotic Silicon Wafer ProcessingUS$ 1 - 100000MOQ: 1 Piece
-
KC060XP0 Thin Section Bearings for Robotic Silicon Wafer ProcessingUS$ 1 - 100000MOQ: 1 Piece
-
KC065XP0 Thin Section Bearings for Robotic Silicon Wafer ProcessingUS$ 1 - 100000MOQ: 1 Piece
-
KC070XP0 Thin Section Bearings for Robotic Silicon Wafer ProcessingUS$ 1 - 100000MOQ: 1 Piece
Brand Name
OEM
Place of Origin
China
Model Number
KC047XP0
Number of Row
Single Row
Seals Type
open
Precision Rating
P6
Outside Diameter
5, 200
Bore Size
5, 150

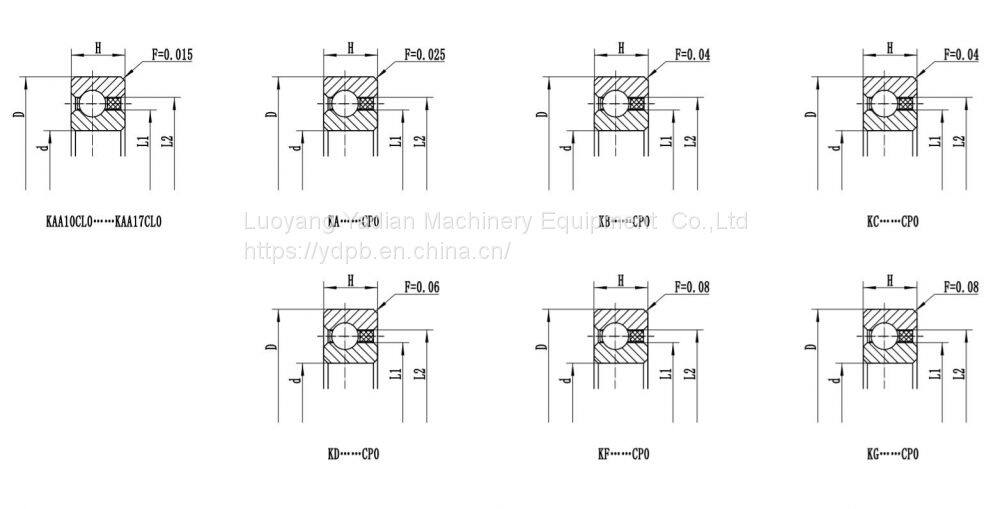

kaydon thin-section bearings Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing
Parameters
| YDKC Series | Interchange | Boundary dimensions (inch/mm) | Basic Cap.N | Weight | ||||||||
| Radial | Axial | |||||||||||
| Bearings Type | NTN | KAYDON | d | D | H | L1 | L2 | Cor | Cr | Coa | Ca | Kg |
| YDKC040XP0 | KXC040 | KC040XP0 | 4 | 4.75 | 0.375 | 4.432 | 4.393 | 9340 | 6300 | 23380 | 9820 | 0.204 |
| 101.6 | 120.65 | 9.525 | 107.5 | 111.6 | ||||||||
| YDKC042XP0 | KXC042 | KC042XP0 | 4.25 | 5 | 0.375 | 4.481 | 4.643 | 9870 | 6500 | 24710 | 10180 | 0.213 |
| 107.95 | 127 | 9.525 | 113.8 | 117.9 | ||||||||
| YDKC045XP0 | KXC045 | KC045XP0 | 4.5 | 5.25 | 0.375 | 4.731 | 4.893 | 10400 | 6710 | 26050 | 10580 | 0.225 |
| 114.3 | 133.35 | 9.525 | 120.2 | 124.3 | ||||||||
| YDKC047XP0 | KXC047 | KC047XP0 | 4.75 | 5.5 | 0.375 | 4.981 | 5.143 | 10940 | 6920 | 27380 | 10940 | 0.235 |
| 120.65 | 139.7 | 9.525 | 126.6 | 130.6 | ||||||||
| YDKC050XP0 | KXC050 | KC050XP0 | 5 | 5.75 | 0.375 | 5.231 | 5.393 | 11510 | 7110 | 28720 | 11290 | 0.263 |
| 127 | 146.05 | 9.525 | 132.9 | 137 | ||||||||
| YDKC055XP0 | KXC055 | KC055XP0 | 5.5 | 6.25 | 0.375 | 5.731 | 5.893 | 12580 | 7500 | 31380 | 11960 | 0.268 |
| 139.7 | 158.75 | 9.525 | 145.6 | 149.7 | ||||||||
| YDKC060XP0 | KXC060 | KC060XP0 | 6 | 6.75 | 0.375 | 6.231 | 6.393 | 13650 | 7870 | 34050 | 12620 | 0.295 |
| 152.4 | 171.45 | 9.525 | 158.3 | 162.4 | ||||||||
| YDKC065XP0 | KXC065 | KC065XP0 | 6.5 | 7.25 | 0.375 | 6.731 | 6.893 | 14710 | 8230 | 36760 | 13290 | 0.312 |
| 165.1 | 184.15 | 9.525 | 171 | 175.1 | ||||||||
Feature
1. compact structure, light weight, low vibration and friction
2. high precision,
3. space and cost saving
4. best quality, long life
Application
Aerospace and defense
Astronomy instrumentation
Fixturing and workholding equipment
Food processing equipment
Glassworking equipment
Index and rotary tables
Packaging equipment
Machine tools
Medical systems and medical devices
Optical scanning equipment
Tire making equipment
bulk crb thin-section crossed roller bearings
More information ,pls contact us ~
