1.5/1c-hh slurry pump Slurry pump manufacturer

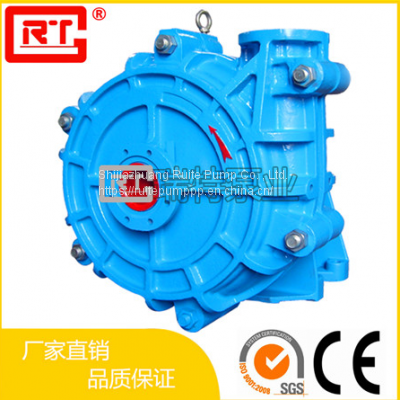

1.5/1c-hh slurry pump belongs to horizontal, cantilever and centrifugal slurry pump

The basic parameters are as follows:

Flow (q): 5.04-18m 3 / h

Head (H): 36.2-92m

Maximum allowable power (kw): 30KW

Speed (n): 1400-2200

Maximum efficiency: 28%

Maximum shaft power: 22.1

NPSH R: 2-5.5

Weight: 318kg

Overall dimension: 759 * 540 * 508 (mm)

Suction diameter: 38mm

Discharge diameter: 25mm

Impeller diameter: 330mm

Number of blades: 5

Pump head structure: the pump body adopts double-layer pump shell, the shell structure is horizontal split, and the water outlet position can be rotated at 45 ° intervals and installed at 8 different positions

Shaft seal form: packing seal, auxiliary impeller seal, mechanical seal

Bracket type: tube type, suspension type

1.5/1c-hh slurry pump can be widely used in metallurgy, mining, coal, electric power, building materials and other industrial sectors to transport strong abrasion, high concentration slurry.

1.5/1c-hh slurry pump is a small type of fractional pump, which has a large flow passage and is suitable for conveying gravel, slurry and slurry with large solid particles.
