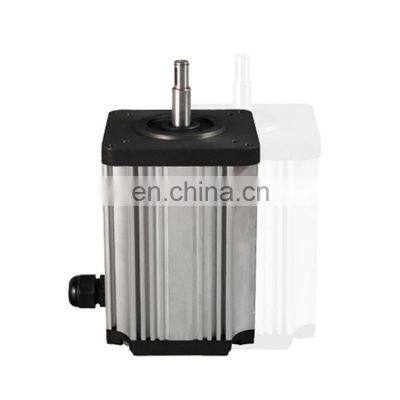

Help CenterCustomized Aluminium Frame BLDC Motor
Related Products
-
China Supply High Power 310V 550W 1500rpm Long Lifetime Brushless dc MotorNegotiableMOQ: 1 -
China Supplier 12V 24V BLDC Motor 5W 15W 20W 35W 60W, Brushless dc MotorNegotiableMOQ: 1
-
Custom Factory Supply Tb6600 Tb6560 8a 220v Nema 23 42 43 34 3 Phase Brushless Brushed dc MotorNegotiableMOQ: 1
-
Custom 12V 500W 3000RPM Brushless dc BLDC Motor B14 Mounting BracketNegotiableMOQ: 1
-
Custom 48V 350W 940RPM Motor Solar Panel VentilationNegotiableMOQ: 1
| IEC #100/112 | 220VAC (Customized DC 24/48/60/72/96V) | ||||||
Rated output |
KW | 2.25 | 3.75 | 5.5 | |||
Rated torque |
N.m |
21.49 |
35.81 | 23.88 | 11.94 | 35.02 | 17.51 |
Rated current |
A | 8.54 | 14.23 | 14.23 | 14.23 | 20.87 | 20.87 |
Rated speed |
rpm | 1000 | 1000 | 1500 | 3000 | 1500 | 3000 |
| Peak torque | N.m | 64.46 | 107.44 | 71.63 | 35.81 | 105.05 | 52.53 |
Maximum speed |
rpm | 1200 | 1200 | 2000 | 5000 | 2000 | 5000 |
| Torque constant | N.m/A | 2.52 | 2.52 | 1.68 | 0.84 | 1.68 | 0.84 |
Induced voltage constant |
V/Krpm | 205 | 205 | 127 | 67 | 127 | 67 |
| Rotor inertia | Kg.m^2 | 0.00641 | 0.0084 | 0.00641 | 0.0044 | 0.0084 | 0.00641 |
| IEC #100/112 | 380VAC (Customized DC 24/48/60/72/96V) | ||||||
Rated output |
KW | 2.25 | 3.75 | 5.5 | |||
Rated torque |
N.m |
21.49 |
35.81 | 23.88 | 11.94 | 35.02 | 17.51 |
Rated current |
A | 4.90 | 8.17 | 8.17 | 8.17 | 20.87 | 11.98 |
Rated speed |
rpm | 1000 | 1000 | 1500 | 3000 | 1500 | 3000 |
| Peak torque | N.m | 64.46 | 107.44 | 71.63 | 35.81 | 105.05 | 52.53 |
Maximum speed |
rpm | 1200 | 1200 | 2000 | 5000 | 2000 | 5000 |
| Torque constant | N.m/A | 4.38 | 4.38 | 2.92 | 1.46 | 1.68 | 1.46 |
Induced voltage constant |
V/Krpm | 355 | 355 | 205 | 116 | 205 | 116 |
| Rotor inertia | Kg.m^2 | 0.00641 | 0.0084 | 0.00641 | 0.0044 | 0.0084 | 0.00641 |
VIEW MORE PLS CONTACT US >>>
Q:Motor has been running then fails to start,what to do?
A:Likely cause: Fuse or circuit breaker is tripped.
What to do: Replace the fuse or reset the breaker.
Likely cause: Armature is shorted. Motor may make a humming noise and the circuit breaker or fuse will trip.
What to do: Disassemble motor and inspect the armature for a burnt coil. Inspect the commutator for burnt bars. If this condition exists, the motor needs to be replaced.
Likely cause: The brushes may be worn down too far and no longer make contact with the commutator.
What to do: Check the brushes to make sure that they are still making contact with the commutator. Contact manufacturer for brushes.
Likely cause: Controller may be defective.
What to do: Verify voltage is coming out of the controller.
Q: On initial installation, motor fails to start up,what to do?
A: Likely cause: Motor is incorrectly wired
What to do: Verify that the motor is wired correctly.
Likely cause: No output power from controller.
What to do: Measure voltage coming from the controller.
Likely cause: Motor is damaged and the armature is rubbing against the magnets.
What to do: Disassemble motor and see if the armature can be realigned by reassembly. Motor may have to be replaced.
Q: Motor takes too long to accelerate,what to do?
A: Likely cause: Motor controller not properly set.
What to do: Adjust the acceleration trim pot of the controller.
Likely cause: Brushes are worn.
What to do: Verify brush length.
Likely cause: Bearings may be defective.
What to do: Inspect bearings. Noisy or rough bearings should be replaced.
Q: Motor runs in the wrong direction,what to do?
A: Likely cause: Incorrect wiring
What to do: Interchange the two motor leads.
Q: Motor runs OK but has a clicking noise,what to do?
A: Likely cause: Suspect a burr on the commutator.
What to do: Remove burr from commutator using a commutator stone.
