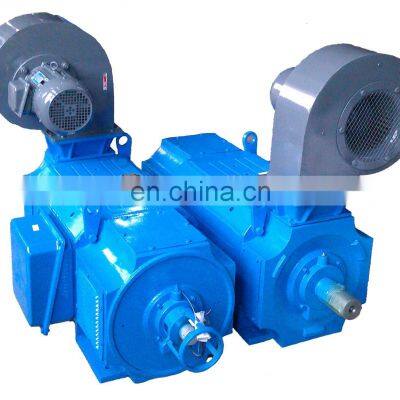

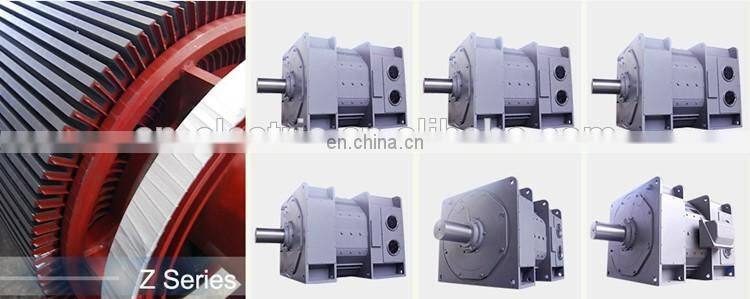

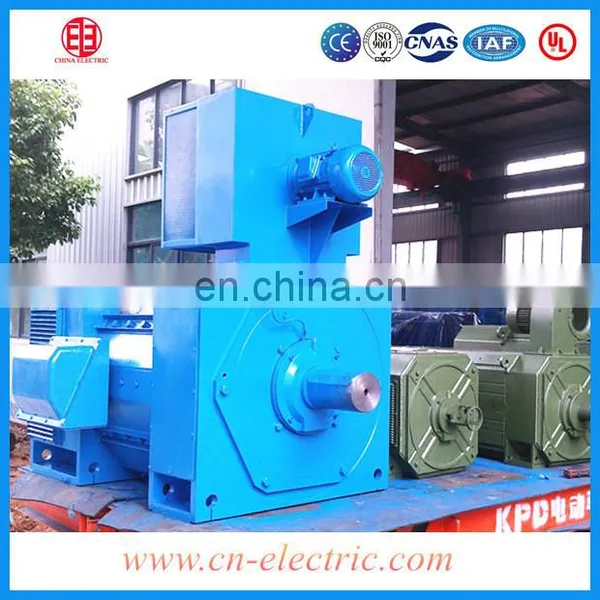

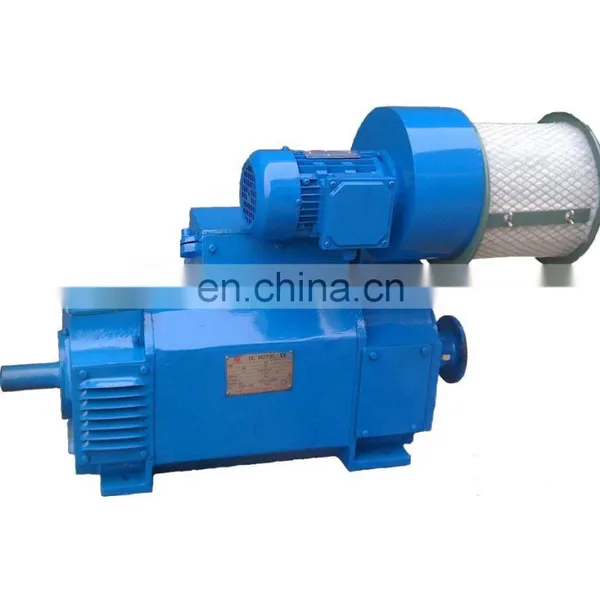

Help CenterZ,Z4,ZYZJ,ZFQZ Series Medium Large Size Electric DC Motor
Related Products
1.Brief introduction

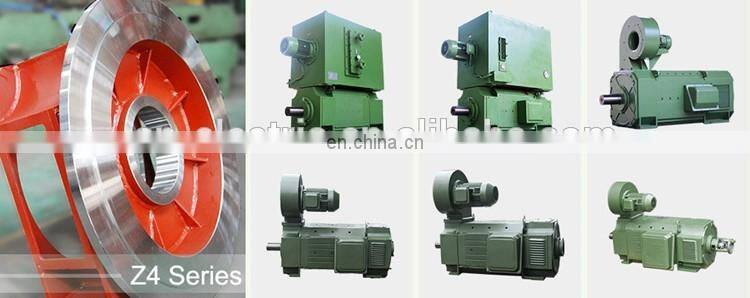

Z4 series DC motors are designed with the application of modern technology resulting in compact machines featuring excellent dynamic properties, meeting the most severe application in areas that include automation and process control.
2.Construction
| Protection Class: IP21S.IP23 and IP44 can be negotiated | ||
| Methods of Cooling: IC06, IC17, IC37 and ICW37A86, Other types of protection and cooling required by customers can be negotiated. | ||
| Mounting type | For use in | |
| IMB-3 | Z4-100~Z4-450 | Horizontal foot mounted |
| IMB-35 | Z4-100~Z4-315 | Horizontal flanged foot mounted |
| IMV-1 | Z4-100~Z4-225 | Vertical flanged mounted |
| IMV-15 | Z4-100~Z4-315 | Vertical flanged and foot mounted |
3.Performance
Data listed in the technical data sheet should be employed under the following conditions;
a. Altitude above sea level maximal 1,000m;
b. Cooling air temperature maximal 40 oC;
c. Ambient conditions for motors should be free from acidic, alkali fumes or other aggressive gases which corrode insulation.
d. Duty: Continuous (SI);
e.monthly average temperature would not be more than 24 degree celsius.and r elative humidity: monthly average no more than 85%.
Applications of Product
•Pumps
•Fans
•Crushers
•Conveyors
•Machine tools
•Milling applications
•Centrifugal machines
•Presses
•Elevators
•Looms
•Grinders
•Woodworking
•Cooling
•Packaging equipment
•Extruding machine
