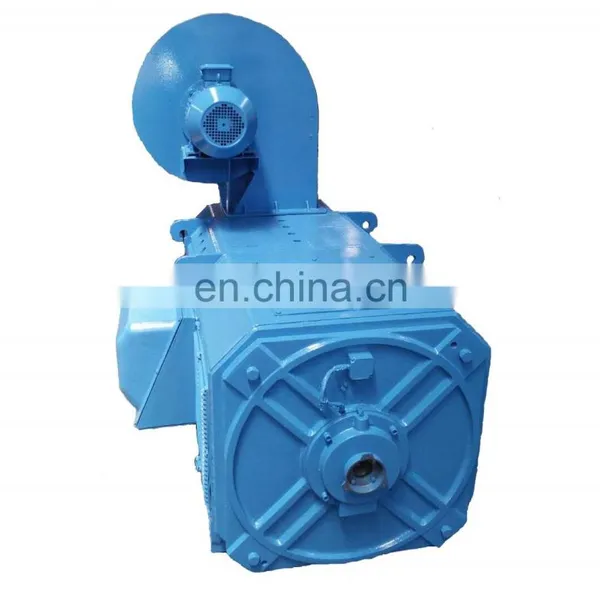

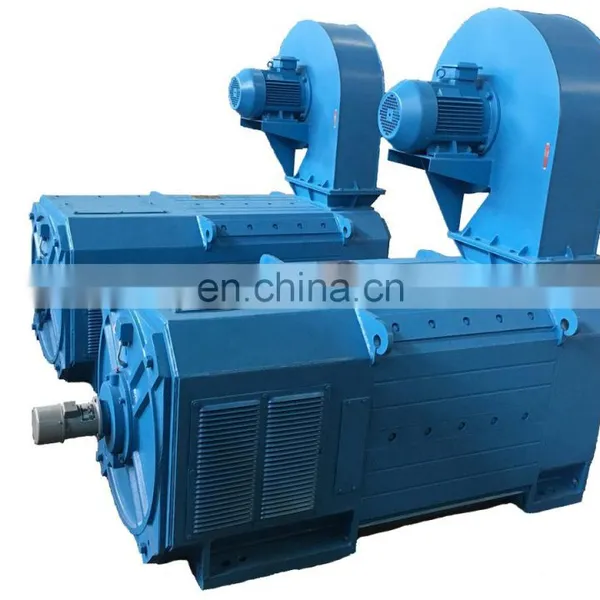

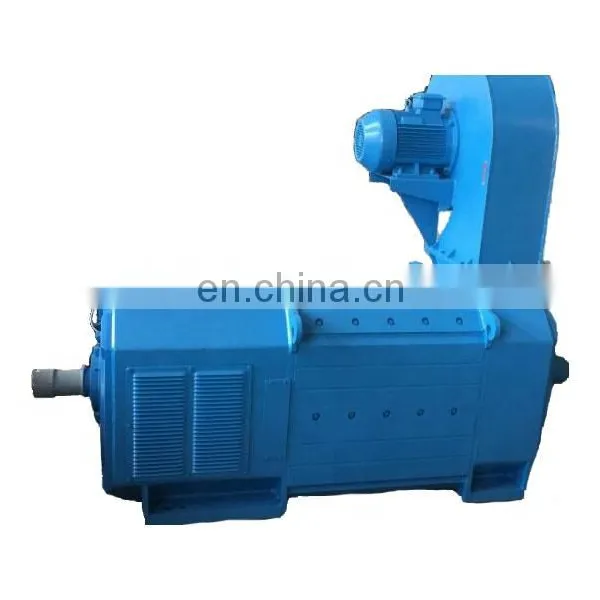

ZSN4 dc motor for cement mill
Product Description
ZSN4 series DC Motor is designed for rotary cement kiln.
1. Compact structure, good performance, light weight, large output, high efficiency and reliability
2. Outline and mounting dimensions of the motors comply with IEC72 Standard
3. Performance and technical requirements of the motors can be checked in accordance with IEC34-1 Standardor DIN57530 Norm of the Deutsche Industries-Norm.
4. Class F insulated, with reliable insulating construction and impregnating process, ensuring stable dielectric performance and excellent heat dissipation.
1. Standard rated voltage: 160V, 400V, 440V, or as required
2. Rated speed: 3000, 1500, 1000, 750, 600, 500, 400, 300 and 200 r/min
3. Cooling method: IC06, IC17, IC37, IC86W
4. Protection: IP21S, IP23, IP44, IP54
5. Mounting: IMB3, IMB35, IMV1, IMV15
6. Duty: continuous S1
7. Ambient temperature: -15 ~ +40 Celsius degree
8. Altitude: within 1000m
Part of ZSN4 series technical paremeter
| Model | Rated power | Armature current | Rated speed | Excitation power | Arm. Circuit Resistance | Armature circuit inductance | Field Inductance | Eff. | Moment of Inertia | Wt. |
| (440V) | GD2 | |||||||||
| kW | A | r/min | W | Ω20℃ | mH | H | % | kg·m2 | kg | |
| ZSN4-255-091 | 55 | 140 | 1500 | 1100 | 0.1627 | 3.8 | 11.1 | 87.8 | 3.68 | 530 |
| 40 | 104 | 1000 | 0.3113 | 7.9 | 9.4 | 85.46 | ||||
| ZSN4-255-11 | 75 | 188 | 1500 | 1300 | 0.1091 | 2.6 | 12.6 | 89.6 | 4.2 | 580 |
| 40 | 104 | 750 | 0.351 | 12.5 | 10.3 | 84.14 | ||||
| ZSN4-255-21 | 90 | 224 | 1500 | 1500 | 0.093 | 2.56 | 11.36 | 90.4 | 4.8 | 630 |
| 55 | 140 | 1000 | 0.1956 | 4.7 | 12 | 87 | ||||
| ZSN4-250-11B | 110 | 276 | 1500 | 2500 | 0.07 | 1.9 | 7.8 | 89.4 | 5 | 810 |
| 75 | 195 | 1000 | 0.158 | 1.82 | 10.2 | 86.8 | ||||
| 55 | 147 | 750 | 0.261 | 3.23 | 15 | 86.6 | ||||
| ZSN4-250-21B | 125 | 312 | 1500 | 2800 | 0.073 | 1 | 11.5 | 89.6 | 5.6 | 890 |
| 90 | 230 | 1000 | 0.11 | 1.2 | 4.1 | 87 | ||||
| ZSN4-250-31B | 75 | 196 | 750 | 2800 | 0.156 | 1.9 | 9.8 | 85 | 6.2 | 960 |
| ZSN4-280-091B | 160 | 397 | 1500 | 2850 | 0.0424 | 0.42 | 6.7 | 90.1 | 8.8 | 1080 |
| 110 | 281 | 1000 | 0.0934 | 1.1 | 12.2 | 87.9 | ||||
| ZSN4-280-11B | 190 | 471 | 1500 | 3000 | 0.0321 | 0.4 | 5.9 | 90.4 | 10 | 1190 |
| 125 | 316 | 1000 | 0.0726 | 0.88 | 7.2 | 88.8 | ||||
| 90 | 233 | 750 | 0.144 | 1.65 | 7 | 85.4 | ||||
| ZSN4-280-22B | 220 | 540 | 1500 | 3250 | 0.0275 | 0.4 | 8.6 | 91.3 | 11.2 | 1300 |
| ZSN4-280-21B | 160 | 403 | 1000 | 3250 | 0.059 | 4.3 | 16 | 88.8 | ||
| 110 | 282 | 750 | 0.102 | 1.54 | 14.3 | 86 | ||||
| ZSN4-315-072 | 250 | 616 | 1500 | 2950 | 0.0246 | 0.41 | 9.1 | 91.5 | 12.8 | 1315 |
| ZSN4-315-071 | 125 | 323 | 750 | 2950 | 0.095 | 1.71 | 15.5 | 86.8 | ||
| ZSN4-315-082 | 280 | 690 | 1500 | 3360 | 0.0209 | 0.34 | 8 | 91.6 | 15.6 | 1475 |
| 190 | 475 | 1000 | 0.0401 | 0.7 | 6.5 | 90.1 | ||||
| ZSN4-315-092 | 315 | 770 | 1500 | 3570 | 0.0142 | 0.26 | 7.9 | 92.4 | 18.4 | 1635 |
| 220 | 543 | 1000 | 0.032 | 0.6 | 8.01 | 90.8 | ||||
| ZSN4-315-091 | 160 | 405 | 750 | 3570 | 0.0611 | 1.12 | 7.95 | 87.8 | ||
| ZSN4-315-12 | 250 | 615 | 1000 | 3880 | 0.0265 | 0.55 | 9.7 | 91 | 21.2 | 1795 |
| 190 | 478 | 750 | 0.048 | 1.01 | 9.68 | 89.1 | ||||
| ZSN4-315-22 | 220 | 550 | 750 | 4040 | 0.0396 | 0.86 | 5.76 | 89.4 | 24 | 1985 |
| ZSN4-355-082 | 280 | 685 | 1000 | 3000 | 0.023 | 0.38 | 9.8 | 92.1 | 32 | 2310 |
| 250 | 620 | 750 | 3600 | 0.0315 | 0.96 | 6.4 | 90.6 | |||
| ZSN4-355-092 | 315 | 770 | 1000 | 3600 | 0.0186 | 0.32 | 7.16 | 92 | 36.8 | 2530 |
| 280 | 697 | 750 | 0.0295 | 0.57 | 7.16 | 90.1 | ||||
| ZSN4-355-12 | 355 | 868 | 1000 | 3800 | 0.0151 | 0.26 | 7.67 | 92.2 | 42 | 2780 |
| 315 | 780 | 750 | 4500 | 0.0269 | 0.5 | 5.39 | 90.6 |

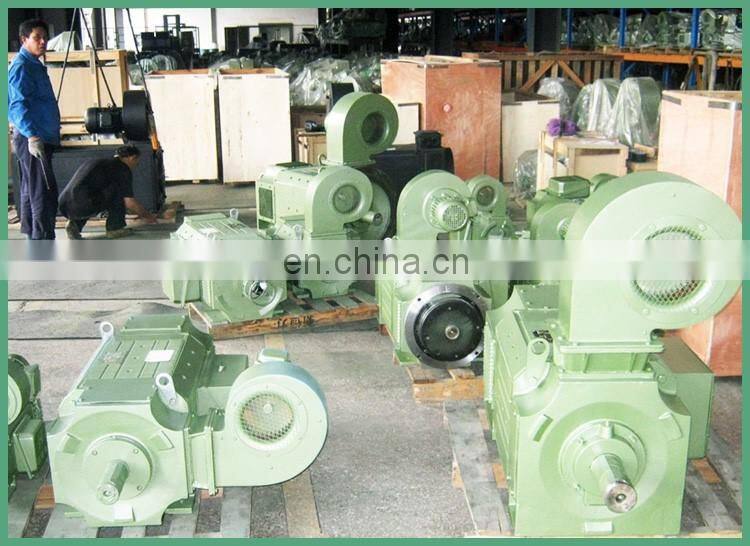

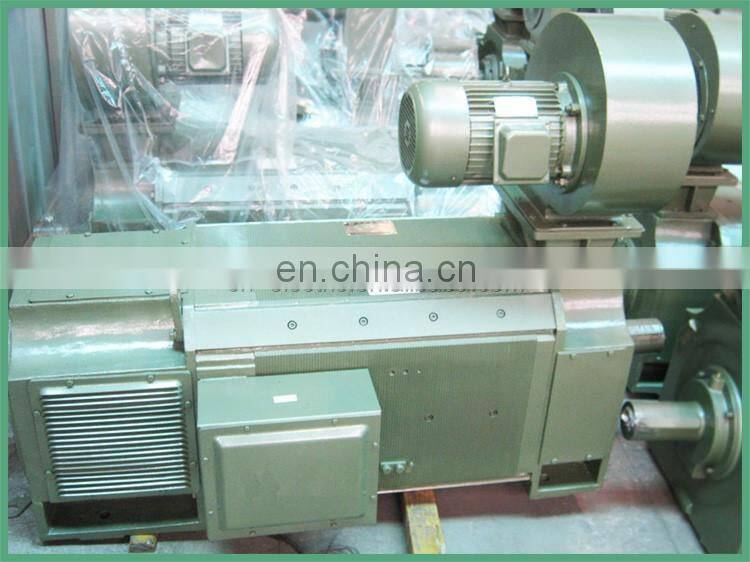

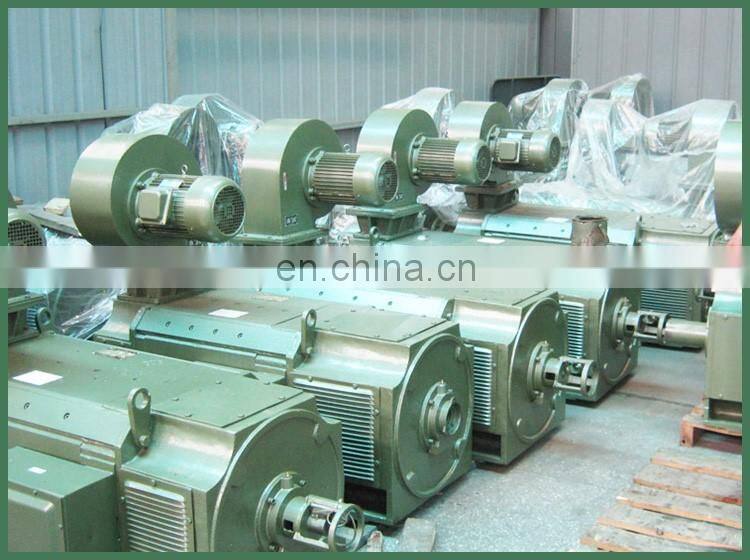

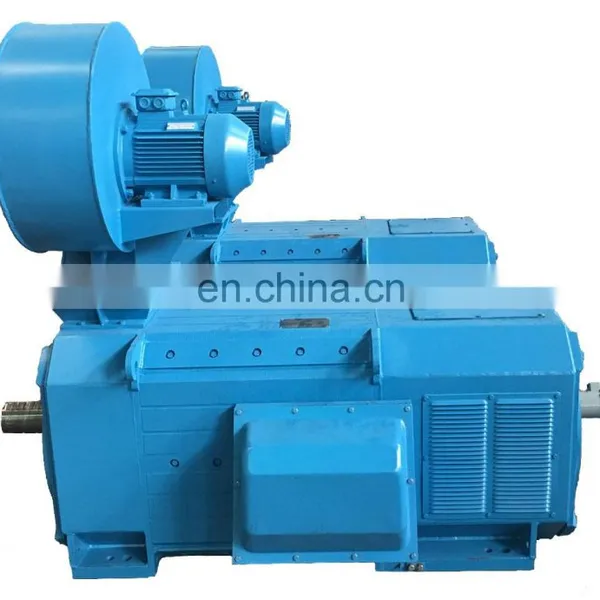

1. motors in our factory

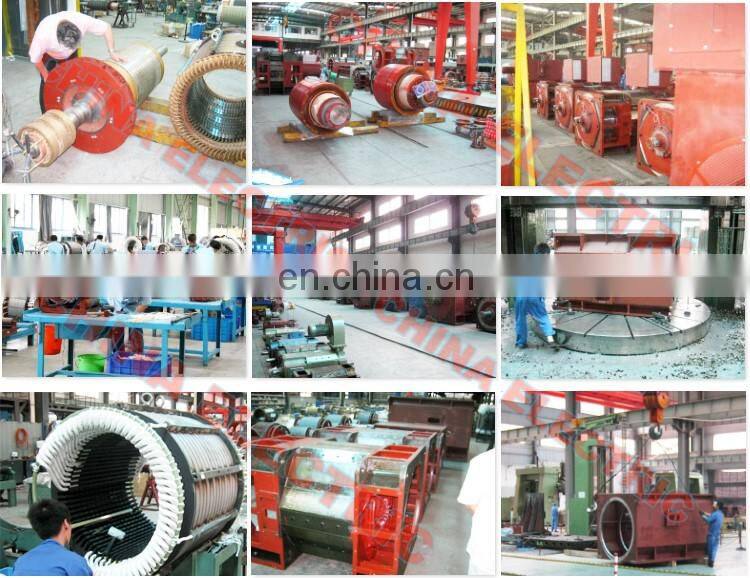

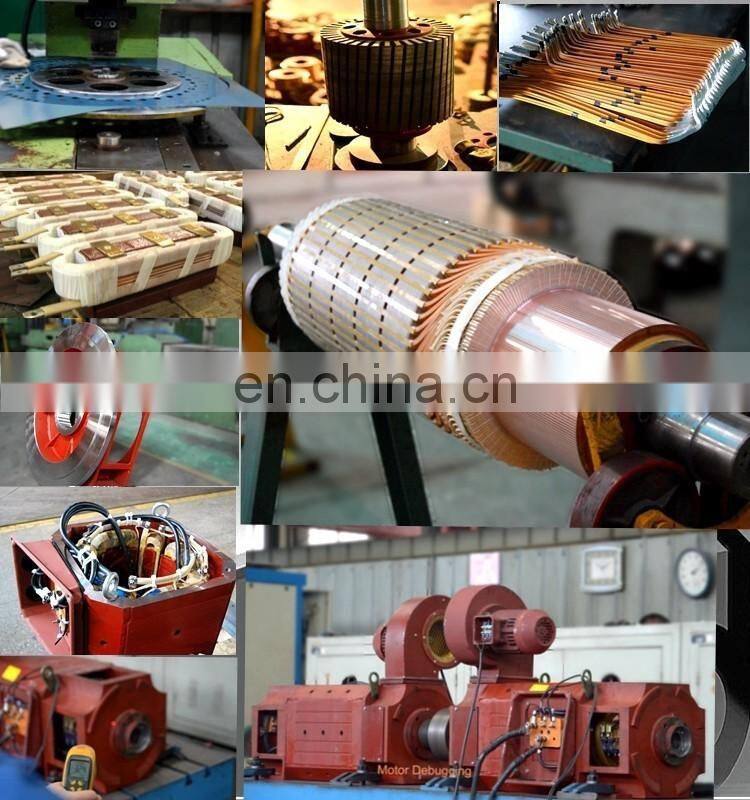

2. Production site
Certifications

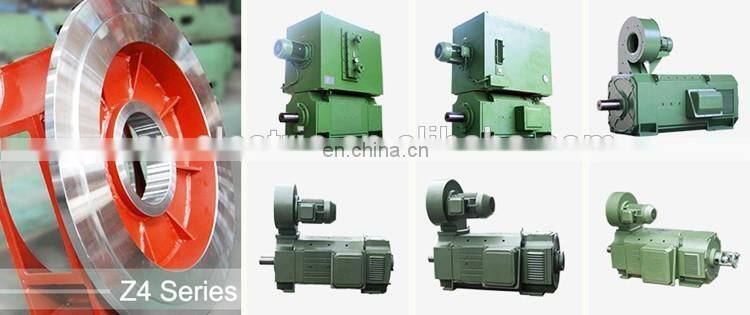

Z4 series dc motor for steel rolling mill
1. Professional drawing will be worked according to your requirements before order,
2. Any of your inquiry will be responsed within 24 hour.
3. Our factory always welcome your visit.
4. We offer 12 month guarantee period to ensure the quality.
5. For big/ high value motors, over abroad after service is available.
We devote to good performance, strong packing, mature service to satisfy our clients.
Thanks for your enjoying!
Shanghai Fortune looking foward to cooperate with you!
