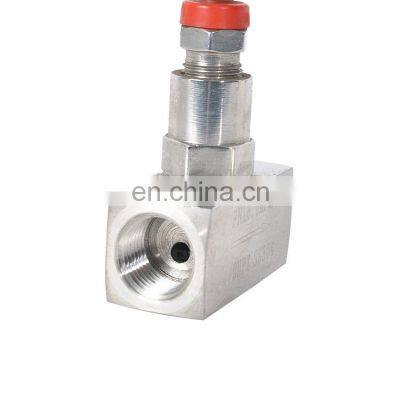

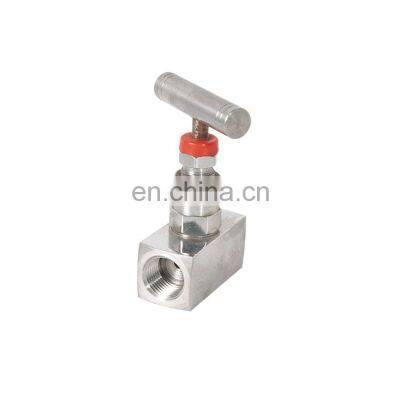

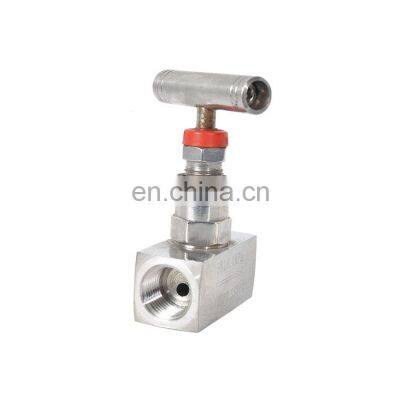

Help CenterBundor PN16 Stainless Steel Panel Mounted Female Needle Valve
Related Products
-
Bundor Stainless Steel Ball Valve 1PC Ball ValveNegotiableMOQ: 1 -
Bundor Universal Butterfly Valve Lockout Api 609 Butterfly Valve ss 316 Butterfly ValveNegotiableMOQ: 1
-
Bundor 10 Inch Pneumatic Operated Control Actuator Butterfly ValveNegotiableMOQ: 1
-
Bundor Stainless Steel Lug Type Butterfly Valve DN40-250 Butterfly Valve China Manufacturer Grooved Butterfly ValvesNegotiableMOQ: 1
-
Bundor Class 150 PTFE Lined Grooved Aluminium Handle 2 Inch -10 Inch Lug Type Butterfly ValveNegotiableMOQ: 1
1.The sealing surface has the advantages of good sealing performance, easy operation, no damage to the sealing surface, long service life and no water hammer phenomenon.
2.The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
3.Stem after the modulation and surface nit riding treatment, has a good corrosion resistance and abrasion resistance.
4.The product can be used with standard pipe flanges and flange sealing surface in the form, to meet the needs of various projects and user requirements.
5.As for the products of Bundor, they are insured by the Pacific insurance company with the quality of 10 million yuan, and the warranty lasts for 2 years. If they are damaged within two years, they will be compensated for the product's quality problem without any conditions.
| PN(Mpa) | 1.6 | |||||
| Applicable Temperature | ≤350℃ | |||||
| Applicable Medium | Water, Oil, Gas and corrosive medium | |||||
| Main Material | Cast iron, brass, carbon chrome-plated) | |||||
| DN(mm) | L | D | D1 | H | D0 | Weight(kg) |
| 15 | 130 | 95 | 65 | 105-125 | 73 | 4.25 |
| 20 | 150 | 105 | 75 | 105-125 | 73 | 4.7 |
| 25 | 160 | 115 | 85 | 115-135 | 95 | 5.85 |
| 32 | 180 | 135 | 100 | 120-140 | 95 | 9.2 |
| 40 | 200 | 145 | 110 | 140-165 | 125 | 11.35 |
| 50 | 230 | 160 | 125 | 160-185 | 125 | 16.6 |
| 65 | 290 | 180 | 145 | 196-220 | 170 | 20.3 |
| 80 | 310 | 195 | 160 | 285-330 | 217 | 30 |
| 100 | 350 | 215 | 180 | 305-360 | 260 | 40 |
| 125 | 400 | 245 | 210 | 367-396 | 280 | 56 |
| 150 | 480 | 280 | 240 | 431-465 | 320 | 80 |
| 200 | 600 | 335 | 295 | 513-562 | 400 | 122 |
| 250 | 650 | 405 | 355 | 577-635 | 400 | 179 |
View product categories
Visit our homepage
View product categories
Get the best quotation
About us
Join us and become our agent
Q:When the products will be shipped ?
A:Within 7-15 days after receiving the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?

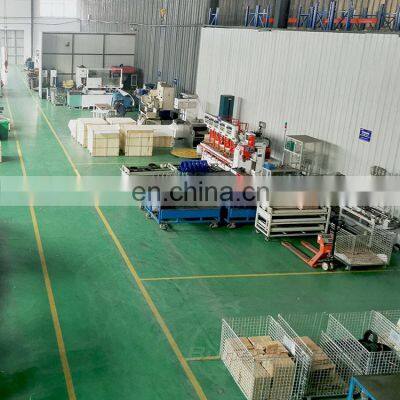

A: We are a factory with 26 years experience in valve research and production .
