Bundor Casting Flanged end ansi y strainer PN16 y type strainers supplier

Product Description

Product introduction:

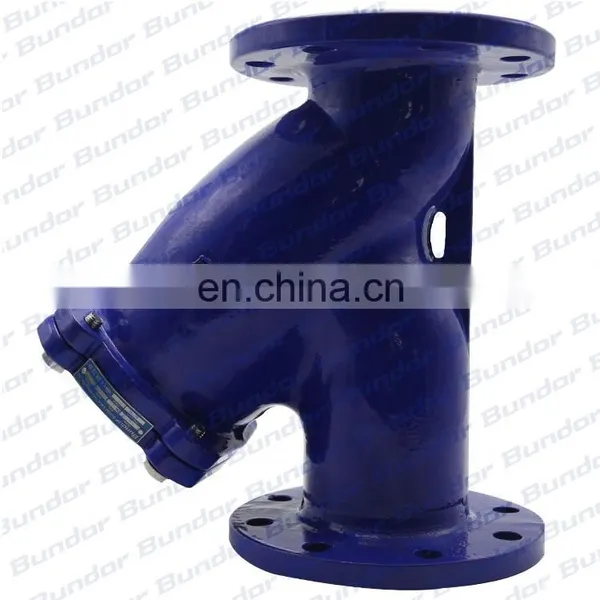

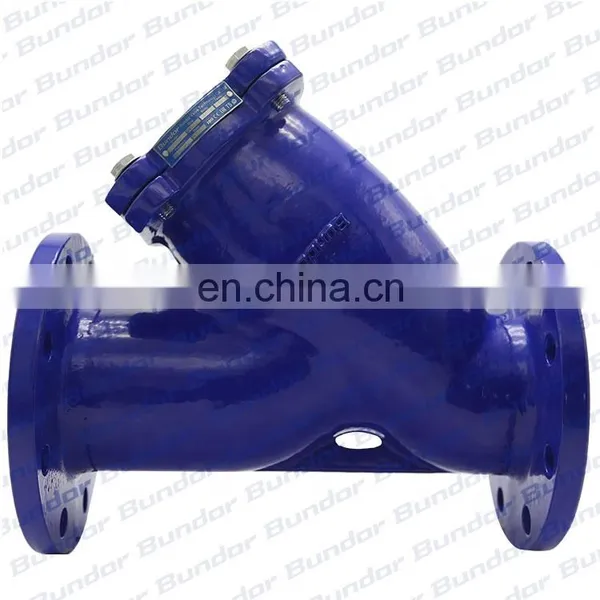

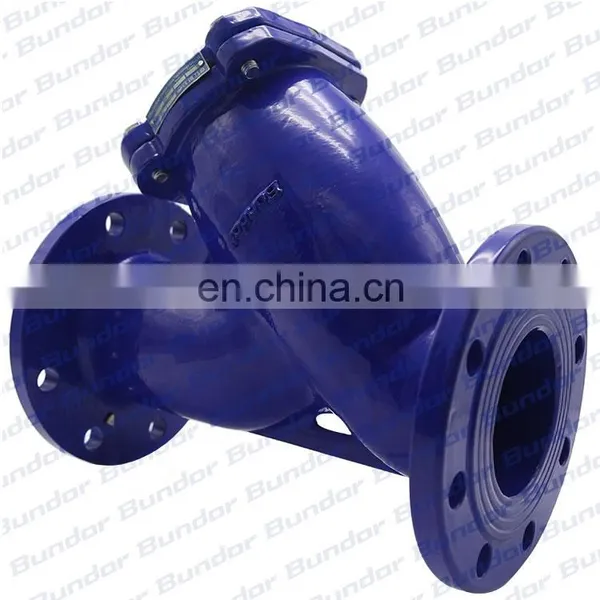

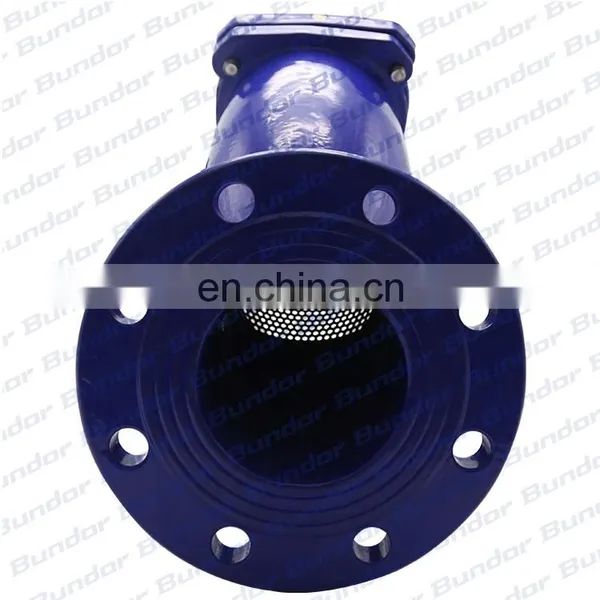

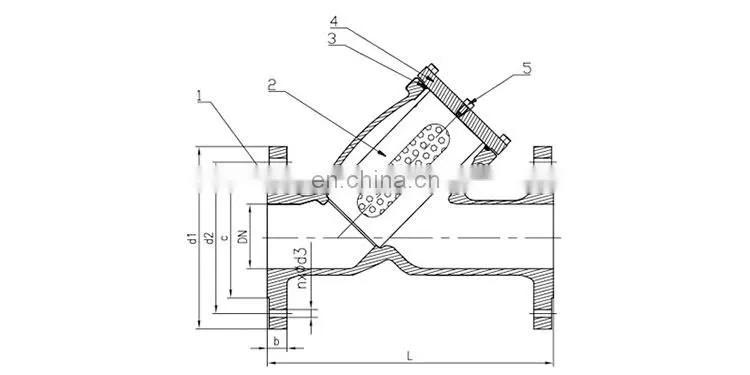

Flange Y-type strainer
Y-type filter is a indispensable device in transmission pipeline system, usually installed inlet in pressure reducing valve, pressure relief valve, water valve and other device, the valve is used to remove impurities in order to protect the valve and equipment in normal use.

Product Advantage:
Size:1/2"--18"
Material: cast iron,WCB,stainless steel 304(CF8)
Pressure: Class 150
Connection:Flange
Temperature range: ≤250℃
Applicable Media:water,oil
Adoptive Standards
Valve Design: DIN3352
Face To Face: DIN3202, BS2080
Flange Drilling: DIN2531/2/3, BS4504

Product Feature:
1,Strainer body meets applicable DIN standard,large inner space,reduce pressure drop.
2,Ductile iron body material,can't broken by transfer and install.
3,Streamline design for low pressure drop.
4,Epoxy coating,prevent corrosion and rust
5,There is pressure tap leave on the bonnet,can install pressure measuring device to test pipe pressure
