Application:
Municipal construction, water conservancy projects, electricity, water supply and drainage, water treatment, chemical industry.

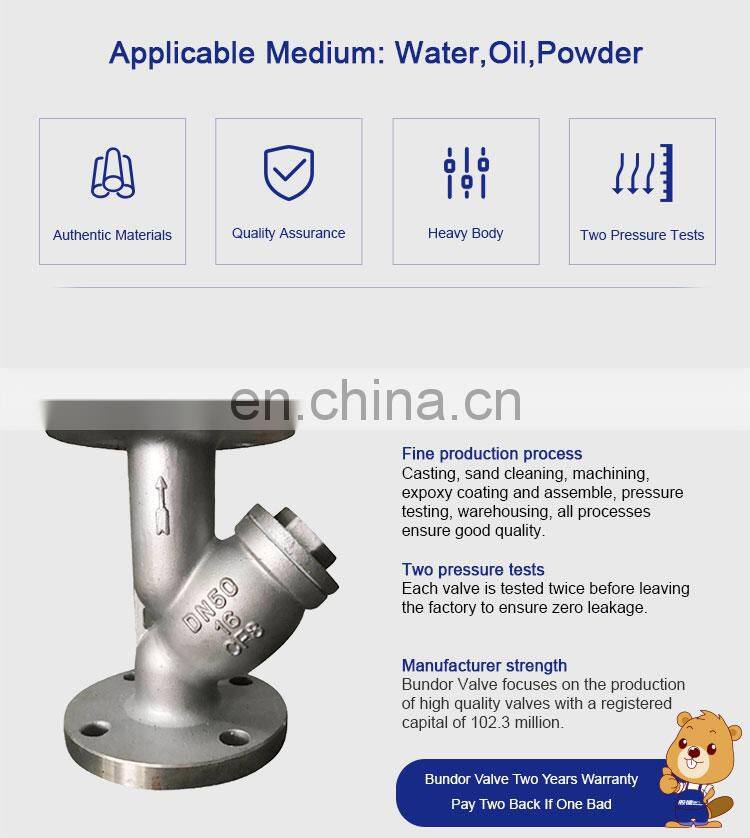

Features:
1. Precision casting body, fine appearance, no trachoma
2. Heavy type valve body.
3. Stainless steel 304 filter screen.
4. Full welding process for filter screen, the opening rate of screen reaches 80%. Wear and corrosion resistance are improved.
5. Each valve will be inspected for shell and seal pressure before leaving factory.
| Name | Design and anufacture | Face to face Length | Pressure Test | End flange | ||
| Reference standard | SH/T 3411-1999 | GB/T 14382-2008 | GB/T 13927-2008 API 598 |
HG/T 20592-2009(PN series) HG/T 20615-2009(Class series) |
||

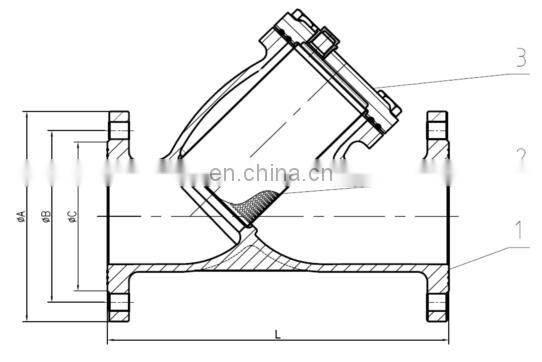

| Name | Body | Filter Screen | End cover | |||
| Material | CF8 | 304 | CF8 | |||
| Size | L | PN16 | Class150 | |||
| DN | NPS(Inch) | L | ΦA | ΦB | ΦA | ΦB |
| 50 | 2'' | 215 | 165 | 125 | 150 | 120.7 |
| 65 | 2 1/2'' | 250 | 185 | 145 | 180 | 139.7 |
| 80 | 3'' | 285 | 200 | 160 | 190 | 152.4 |
| 100 | 4'' | 305 | 220 | 180 | 230 | 190.5 |
| 125 | 5'' | 345 | 250 | 210 | 255 | 215.9 |
| 150 | 6'' | 385 | 285 | 240 | 280 | 241.3 |
| 200 | 8'' | 487 | 340 | 295 | 345 | 298.5 |
| 250 | 10'' | 454 | 405 | 355 | 405 | 362 |
| 300 | 12'' | 605 | 460 | 410 | 485 | 431.8 |
| 350 | 14'' | 680 | 520 | 470 | 535 | 476.3 |
| 400 | 16'' | 757 | 580 | 525 | 595 | 539.8 |
| 450 | 18'' | 850 | 640 | 585 | 635 | 577.9 |
| 500 | 20'' | 895 | 715 | 650 | 700 | 635 |
| 600 | 24'' | 1070 | 840 | 770 | 815 | 749.3 |
