Product Description

Bundor Pipe Rubber Ring Joint Carbon Steel EPDM flexible expansion rubber joint afa flex Single sphere rubber joint

Product Advantages

1.The content of EPDM is higher. EPDM rubber balls, containing more than 40% of rubber, longer than conventional rubber life


2.High seismic coefficient. Rubber ball added steel wire, anti - twist, anti - seismic coefficient increased 10%.


3.Exceed national standards. The number of rubber ball inner lining exceeds the standard requirement.


4.Prevent the ball from pulling. The thickness of both ends of the rubber ball increased by 10mm, and the steel ball was added to prevent the ball from pulling.


5.Better sealing effect. The rubber ball is connected with German waterline and the sealing effect is improved by 30%.



Bundor Pipe Rubber Ring Joint Carbon Steel EPDM flexible expansion rubber joint afa flex Single sphere rubber joint

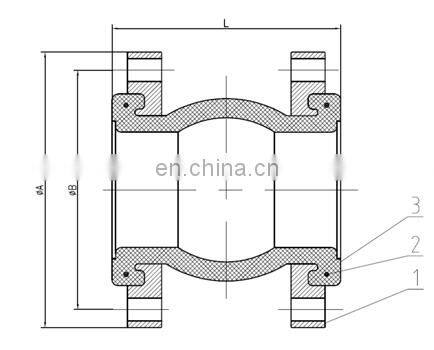

Name 1-Body 2-Steel ring 3-Flange
Material EPDM Q235 Q235
Size PN10 PN16 PN25
DN NPS L ΦA ΦB ΦA ΦB ΦA ΦB
40 1  1/2'' 95 150 110 150 110 150 110
50 2'' 105 165 125 165 125 165 125
65 2  1/2'' 115 185 145 185 145 185 145
80 3'' 135 200 160 200 160 200 160
100 4'' 150 220 180 220 180 235 190
125 5'' 165 250 210 250 210 270 220
150 6'' 180 285 240 285 240 300 250
200 8'' 210 340 295 340 295 360 310
250 10'' 230 395 350 405 355 425 370
300 12'' 245 445 400 460 410 485 430
350 14'' 255 505 460 520 470 555 490
400 16'' 255 565 515 580 525 620 550
450 18'' 255 615 565 640 585 670 600
500 20'' 255 670 620 715 650 730 660
600 24'' 260 780 725 840 770 845 770

Company Information

Bundor Pipe Rubber Ring Joint Carbon Steel EPDM flexible expansion rubber joint afa flex Single sphere rubber joint

View product categories

Bundor Pipe Rubber Ring Joint Carbon Steel EPDM flexible expansion rubber joint afa flex Single sphere rubber joint

Visit our homepage

Bundor Pipe Rubber Ring Joint Carbon Steel EPDM flexible expansion rubber joint afa flex Single sphere rubber joint

View product categories

Bundor Pipe Rubber Ring Joint Carbon Steel EPDM flexible expansion rubber joint afa flex Single sphere rubber joint

Get the best quotation

Bundor Pipe Rubber Ring Joint Carbon Steel EPDM flexible expansion rubber joint afa flex Single sphere rubber joint

About us

Bundor Pipe Rubber Ring Joint Carbon Steel EPDM flexible expansion rubber joint afa flex Single sphere rubber joint

Packaging & Shipping

Bundor Pipe Rubber Ring Joint Carbon Steel EPDM flexible expansion rubber joint afa flex Single sphere rubber joint

Our Services

Bundor Pipe Rubber Ring Joint Carbon Steel EPDM flexible expansion rubber joint afa flex Single sphere rubber jointBundor Pipe Rubber Ring Joint Carbon Steel EPDM flexible expansion rubber joint afa flex Single sphere rubber joint

Bundor Pipe Rubber Ring Joint Carbon Steel EPDM flexible expansion rubber joint afa flex Single sphere rubber joint

Join us and become our agent

Bundor Pipe Rubber Ring Joint Carbon Steel EPDM flexible expansion rubber joint afa flex Single sphere rubber joint

Q:When the products will be shipped ?
A:Within 7-15 days after receing the prepayment.


Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.


Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.


Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.


Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.


Q:Are you a facrory or trade company ?
A: We are a factory with 24 years experience in valve research and production .
