Product Description

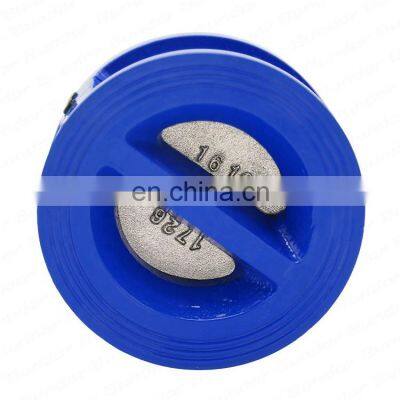

Bundor CE EAC ISO TS approved dual disc Iron non return valve price list DN80 check valve

Product advantages:
1. The spring adopts ni-base alloy x-750, which has good corrosion resistance, seawater resistance and stable torque, and can provide material proof.

2. The spring is treated with solid solution, with high tensile strength of 910MPa, Brinell hardness HB350, high hardness and good fatigue resistance. After heat treatment, the residual deformation stress is eliminated, which greatly improves the service life of the spring.

3. Rubber is treated with special process to avoid rubber aging after high-temperature spraying and give full play to rubber performance.

4. The valve body adopts the casting process of production line, with smooth appearance, clear casting, high dimensional accuracy and guaranteed delivery time.

5. The mechanical properties of the main material fully meet the qt450-10 standard, and the spheroidization rate can reach level 3.

Bundor CE EAC ISO TS approved dual disc Iron non return valve price list DN80 check valve

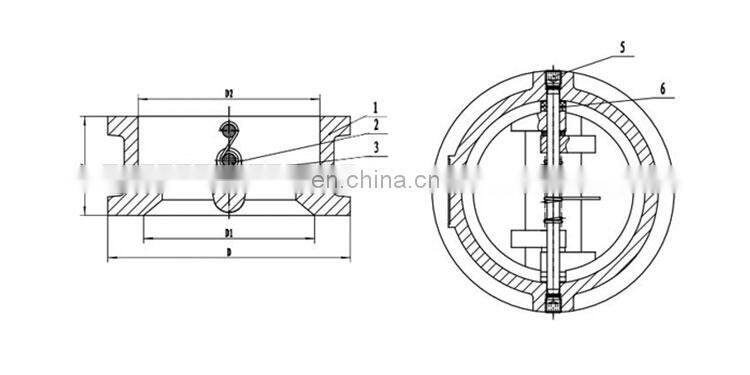

Name 1-Body 2-Disc 3-Seat 4-Spring
Material DI CF8/DI EPDM 304
DN NPS L±1.5 D D1 D2
50 2'' 43 101 58 65
65 2  1/2'' 46 118 75 80
80 3'' 64 132 85 94
100 4'' 64 157 105 117
125 5'' 70 186 125 145
150 6'' 76 213 165 170
200 8'' 89 272 215 224
250 10'' 114 328 260 265
300 12'' 114 378 300 310
