Bundor Factory Price Class150 DN50-500 Cast Steel Swing Check Valve

Bundor Factory Price Class150 DN50-500 Cast Steel Swing Check Valve thumbnail-1
Bundor Factory Price Class150 DN50-500 Cast Steel Swing Check Valve thumbnail-2
Bundor Factory Price Class150 DN50-500 Cast Steel Swing Check Valve thumbnail-3
Bundor Factory Price Class150 DN50-500 Cast Steel Swing Check Valve thumbnail-4
Bundor Factory Price Class150 DN50-500 Cast Steel Swing Check Valve thumbnail-5
Bundor Factory Price Class150 DN50-500 Cast Steel Swing Check Valve photo-1
Bundor Factory Price Class150 DN50-500 Cast Steel Swing Check Valve photo-2
Bundor Factory Price Class150 DN50-500 Cast Steel Swing Check Valve photo-3
Bundor Factory Price Class150 DN50-500 Cast Steel Swing Check Valve photo-4
Bundor Factory Price Class150 DN50-500 Cast Steel Swing Check Valve photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1992
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Henan Bundor Flow Control Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

Bundor Factory Price Class150 DN50-500 Cast steel Swing Check Valve

Product Advanteges :

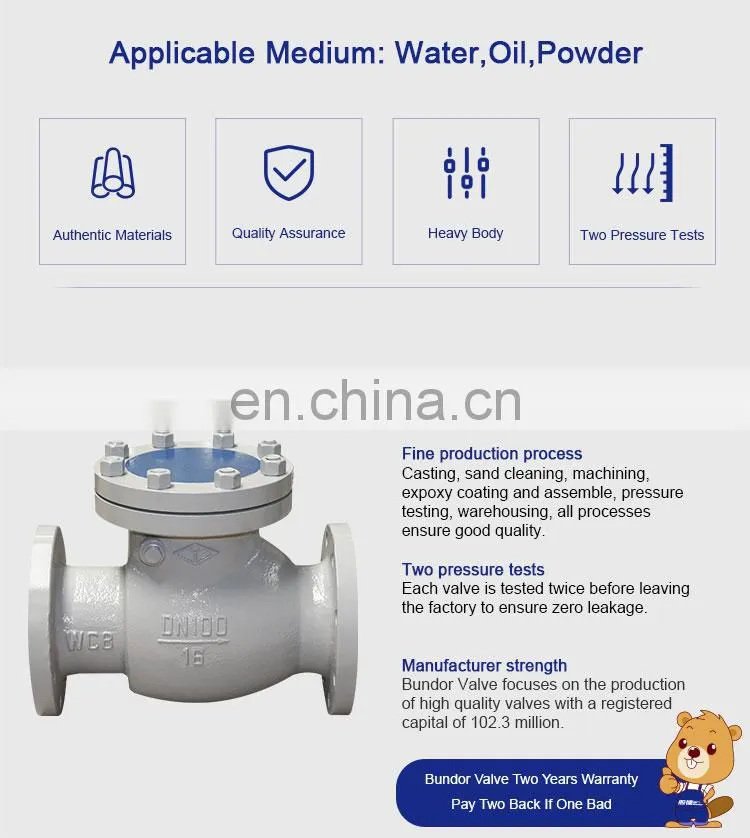

1. The valve body is all precision casting valve body, the material WCB is up to national standard, the appearance is fine, no trachoma and each batch of castings has the furnace number mark, which is convenient for production tracking.


2. The same caliber weight is heavier than the equivalent valve.


3. Valve seat Cr13 system + surfacing 507 molybdenum, increase the seat wear resistance.


4. Each valve is manufactured in accordance with national standards for shell and seal double pressure testing

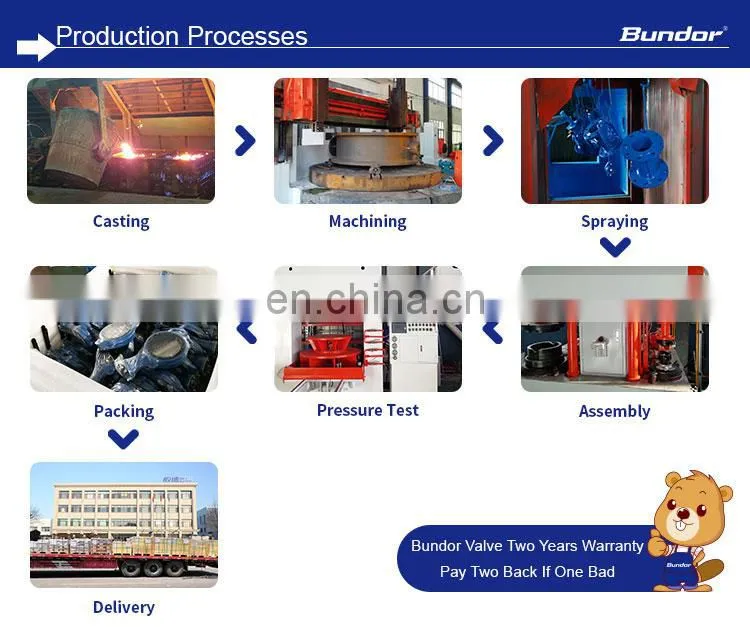

5. From the blank to the finished product packaging, each layer is tested .


7. Bundor brand products are underwritten by the 10 million quality of Pacific Insurance Company. Two years warranty ,Pay two back if one bad .Bundor Factory Price Class150 DN50-500 Cast steel Swing Check Valve

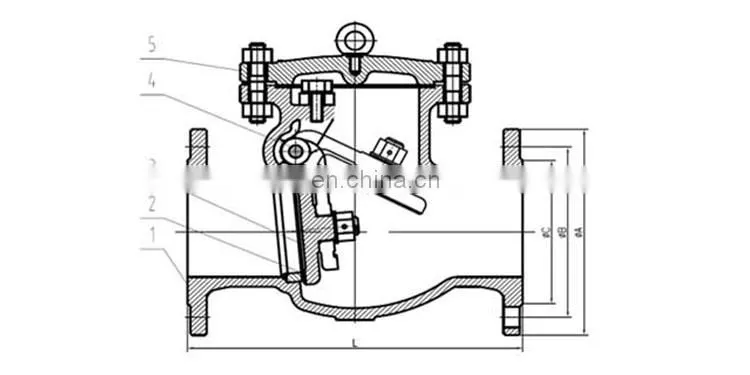

Name 1-Body 2-Seat 3-Disc 4-Stem 5-Bonnet
Material WCB SS WCB+2Cr13 2Cr13 WCB
Size PN16~PN40 PN16 PN25 PN40 PN63
DN NPS(inch) L ΦA ΦB ΦC ΦA ΦB ΦC ΦA ΦB ΦC L ΦA ΦB ΦC
50  2'' 230 160 125 100 160 125 100 160 125 100 300 175 135 105
65  2  1/2'' 290 180 145 120 180 145 120 180 145 120 340 200 160 130
80  3'' 310 195 160 135 195 160 135 195 160 135 380 210 170 140
100  4'' 350 215 180 155 230 190 160 230 190 160 430 250 200 168
125  5'' 400 245 210 185 270 220 188 270 220 188 500 295 240 202
150  6'' 480 280 240 210 300 250 218 300 250 218 550 340 280 240
200  8'' 500 335 295 265 360 310 278 375 320 282 650  405 345 300
250  10'' 550 405 355 320 425 370 332 445 385 345 775 470 400 352
300  12'' 650 460 410 375 485 430 390 510 450 408 900 530 460 412
350 14'' 750 520 470 435 550 490 448 570 510 465 1025 595 525 475
400 16'' 850 580 525 485 610 550 505 655 585 535 1150 670 585 525
450 18'' 950 640 585 545 660 600 555 No such specification
500 20'' 1150 705 650 608 730 660 610
Company Information

Bundor Factory Price Class150 DN50-500 Cast steel Swing Check Valve

View product categories

Bundor Factory Price Class150 DN50-500 Cast steel Swing Check Valve

Visit our homepage

Bundor Factory Price Class150 DN50-500 Cast steel Swing Check Valve

View product categories

Bundor Factory Price Class150 DN50-500 Cast steel Swing Check Valve

Get the best quotation

Bundor Factory Price Class150 DN50-500 Cast steel Swing Check Valve

About us

Bundor Factory Price Class150 DN50-500 Cast steel Swing Check Valve

Packaging & Shipping

Bundor Factory Price Class150 DN50-500 Cast steel Swing Check Valve



Our Services

Bundor Factory Price Class150 DN50-500 Cast steel Swing Check ValveBundor Factory Price Class150 DN50-500 Cast steel Swing Check Valve

Bundor Factory Price Class150 DN50-500 Cast steel Swing Check Valve

Join us and become our agent

Bundor Factory Price Class150 DN50-500 Cast steel Swing Check Valve

Q:When the products will be shipped ?
A:Within 7-15 days after receing the prepayment.


Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.


Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.


Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.


Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.


Q:Are you a facrory or trade company ?
A: We are a factory with 26 years experience in valve research and production .
