Help CenterBundor 2021 New 6 Inch Pneumatic Triple Eccentric Flange Butterfly Valve for Water
Related Products
-
Bundor Jis10k Pneumatic Wcb Wafer Butterfly Valve for Water GasNegotiableMOQ: 1 -
Bundor 4 Inch Price Double Eccentric Flange Butterfly Valve With Worm Gear ActuatorNegotiableMOQ: 1
-
Bundor 14 Inch Ss316 12v Electric Water Gate ValveNegotiableMOQ: 1
-
Bundor Ductile Iron Cast Iron Stainless Steel Carbon Steel Handle Manual Operated Lug Type Butterfly ValveNegotiableMOQ: 1
-
Bundor PN16 150 LB Ss304 Disc Ptfe Seat Semi PTFE-lined Butterfly ValveNegotiableMOQ: 1
Product Advantage:
1.Bundor Valve patent product,Patent Number: 201510315321.5;201520267217.9,The product side flange complies with many national and international standards such as GB, DIN, GOST, ANSI, BS, JIS,etc.
2.Valve body procurement QT450-10 material, spheroidization rate of 3 or more, mechanical properties fully up to standard, tensile strength 450Mpa, elongation rate greater than 10%, not easy to crack, crack.
3.The valve body is solid body, the same DN weight is heavier than other manufacturers.
4.Seat rubber uses standard EPDM rubber, making the butterfly valve's resilience and tension super stable and reliable, opening and closing more than 10,000 times without leakage.
5.The valve body uses an electrostatic powder thermal spraying process with a spray thickness of 250μm. The valve body is heated at 200°C for 3 hours, and the powder is cured at 180°C for 2 hours. After natural cooling, the surface adhesion is increased by 2 times than that of the ordinary powder, making it more environmentally friendly and weatherproof. Higher, to ensure that the valve body is not discolored for 36 months.

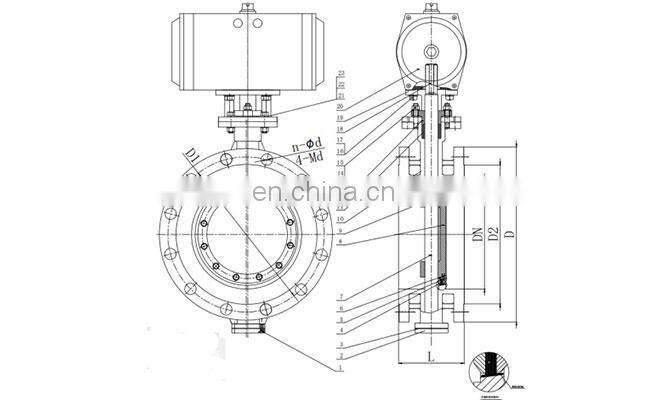

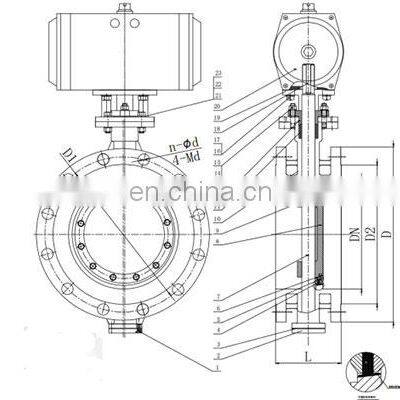

| Name | 10-Body | 4-Seat Seal | 8-Disc | 7-Shaft | 20-Pneumatic actuator | |
| Material | WCB | 430+graphite | WCB | 2Cr13 | Component | |
| SIZE | PN16 | 150LB | ||||
| DN | NPS(Inch) | L | D1 | N-d | D1 | N-d |
| 50 | 2'' | 108 | 125 | 4-18 | 120.7 | 4-19 |
| 65 | 2 1/2'' | 112 | 145 | 4-18 | 139.7 | 4-19 |
| 80 | 3'' | 114 | 160 | 8-18 | 152.4 | 4-19 |
| 100 | 4'' | 127 | 180 | 8-18 | 190.5 | 8-19 |
| 125 | 5'' | 140 | 210 | 8-18 | 215.9 | 8-22 |
| 150 | 6'' | 140 | 240 | 8-22 | 241.3 | 8-22 |
| 200 | 8'' | 152 | 295 | 12-22 | 298.5 | 8-22 |
| 250 | 10'' | 165 | 355 | 12-26 | 362 | 12-25 |
| 300 | 12'' | 178 | 410 | 12-26 | 431.8 | 12-25 |
| 350 | 14'' | 190 | 470 | 16-26 | 476.3 | 12-29 |
| 400 | 16'' | 216 | 525 | 16-30 | 539.8 | 16-29 |
| 450 | 18'' | 222 | 585 | 20-30 | 577.9 | 16-32 |
| 500 | 20'' | 229 | 650 | 20-33 | 635 | 20-32 |
| 600 | 24'' | 267 | 770 | 20-36 | 749.3 | 20-35 |
| 700 | 28'' | 292 | 840 | 24-36 | no data | |
| 800 | 32'' | 318 | 950 | 24-39 | ||
| 900 | 36'' | 330 | 1050 | 28-39 | ||
| 1000 | 40'' | 410 | 1170 | 28-42 | ||
| 1200 | 48'' | 470 | 1390 | 32-48 | ||
View product categories
Visit our homepage
View product categories
Get the best quotation
About us
Join us and become our agent
Q:When the products will be shipped ?
A:Within 7-15 days after receiving the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?
A: We are a factory with 26 years experience in valve research and production .
