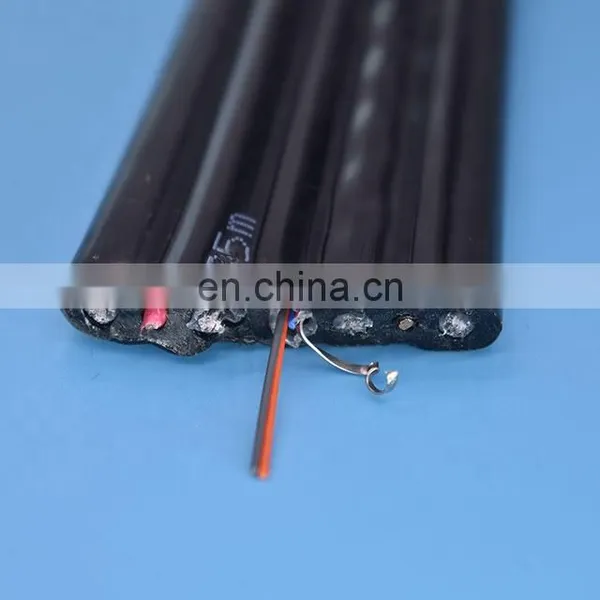

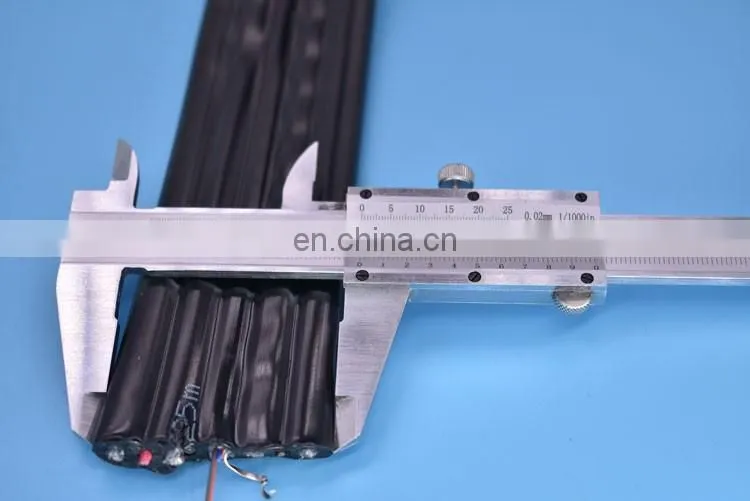

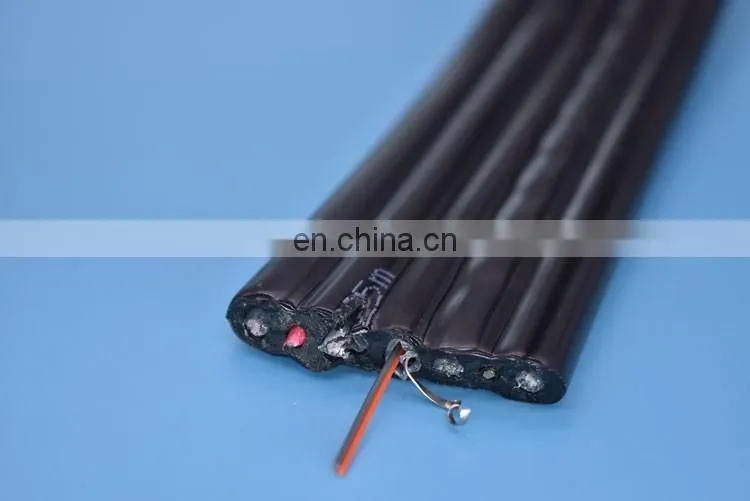

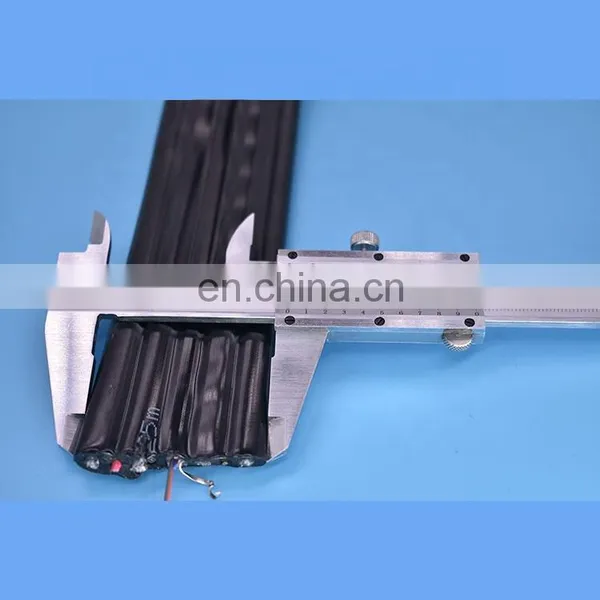

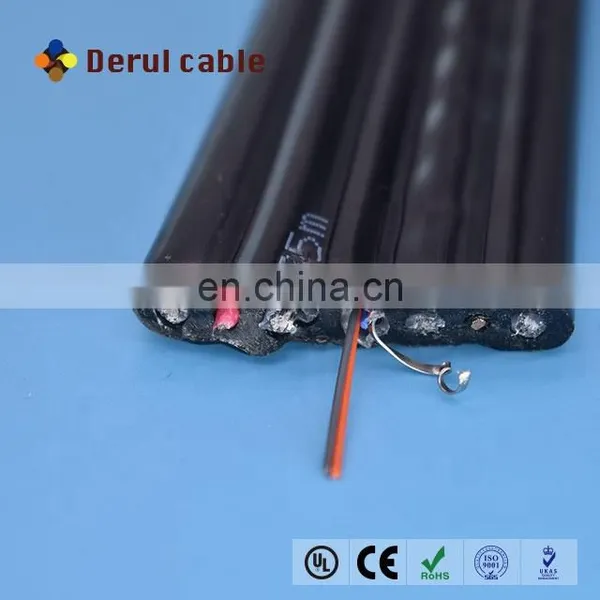

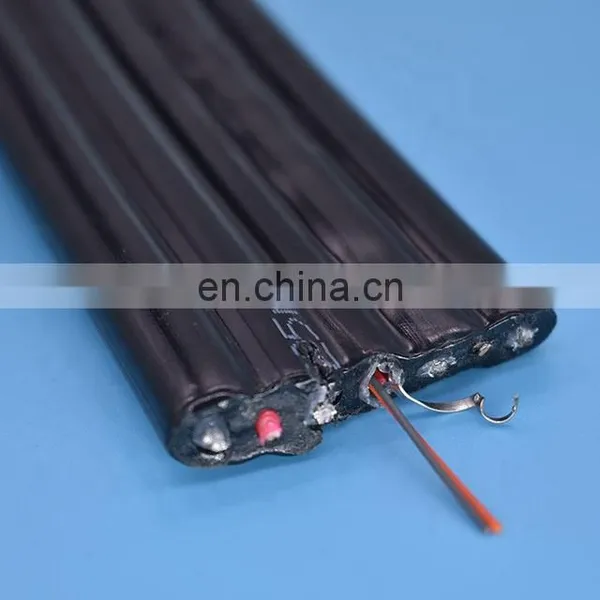

Elevator cable
The elevator cable adopts the special structure design, the service life is long, and the operation efficiency of the elevator production enterprise is improved to the maximum extent. The control cable of the elevator can provide overall electrical control when the suspension length is long, and bear the mechanical stress at the same time. The elevator cable can be used for long-distance suspended use because of the steel wire carrying cable core.
The cable characteristic adopts the new cold-resistant flexible special outer sheath, can maintain the softness at-15 ℃ low temperature.
Elevator cable parameters
Conductor: multi-strand superfine fine twisted oxygen-free copper wire in accordance with VDE0295CLASS 5 standard
Insulation: special hybrid PVC
insulation color: color, consistent with GB5023.6 (yellow, white, orange, light green, pink) digital numbering (no yellow and green ground wire)
lining: no
Reinforcement: high strength galvanized aerial wire (optional);
Sheathing: cold resistant PVC special sheath gray or black
Rated voltage: 300 / 500V;
Test voltage: 2500V
Static bending test: 0.3 m < L < 0.6 m
Vertical combustion test: through GB/T18380.1-2001,IEC60332-1:1993 test
Product standard: GB5023.6,lEC60227-6,EN50214.
Guidelines for use
In normal use, the maximum temperature of the conductor is 70 ℃.
1.The cable is suitable for use in the environment of 1 5 ~ 400 c: when the elevator cable is arranged in one font, the length of free use is more than 35 m;
2. Running speed greater than 1.6 m / s;
Consideration should be given to adding load-bearing elements to cables, which are generally galvanized flexible steel wire ropes or fibre ropes such as aramid yarn, when the elevator cables are arranged in the form of plums.
1. The length of free suspension is more than 80 m;
2. The speed of operation is 4.0m/s~10.0 m / s;
The load bearing element should be considered in the cable, which is usually galvanized flexible wire rope.
Model representation
TVVBPG-TV
T: elevator "ladder"
V: PVC insulation
V: PVC sheath
B: flat cable
P: shielding structure
G: steel wire reinforcement
TV: video transmission line
