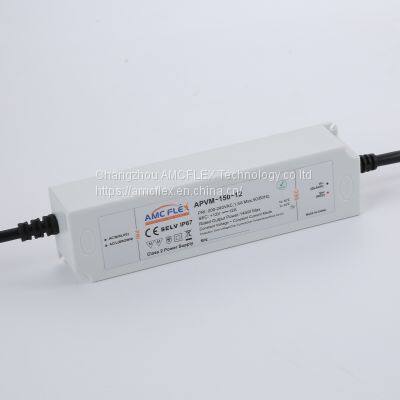

Help Center150W 1050mA 71-142VDC LED Strip Constant Current LED Driver
Related Products
-
150W 1400mA 54-107VDC LED Strip Constant Current LED DriverUS$ 12 - 14MOQ: 500 Pieces -
150W 1750mA 42-84VDC LED Strip Constant Current LED DriverUS$ 12 - 14MOQ: 500 Pieces
-
150W 2100mA 36-72VDC LED Strip Constant Current LED DriverUS$ 12 - 14MOQ: 500 Pieces
-
150W 2800mA 27-54VDC LED Strip Constant Current LED DriverUS$ 12 - 14MOQ: 500 Pieces
-
150W 3500mA 21-42VDC LED Strip Constant Current LED DriverUS$ 12 - 14MOQ: 500 Pieces
Model: APVM-150C-1050
Constant voltage LED Power Supply.
Input Voltage: 200-240VAC 47-63Hz,1.5A max
Output Voltage: 71-142V
Output Current: 1050mA
Output Rated Power: 150W max
Inrush Current: 70 Amps max. at 230VAC/50Hz,full load
No Load Power Consumption: ＜0.5W
TC: 85 ℃, Ta:50 ℃
Protections: Short Circuit /Over Current /Over Voltage
/over temperature protection
Short Circuit Protection (SCP) Yes,hiccup mode, auto-recovery
Over Voltage Protection (OVP): Yes,hiccup mode, auto-recovery
Over Current Protection (OCP): Yes,hiccup mode, auto-recovery
Working TEMP.: -30°C-to 70°C
Working Humidity: 10%-90% RH non-condensing
StorageTEMP.,Humidity and altitude: -40℃ ~+70°C ambient
temperature and a 5% to 95% relative humidity range throughout
an altitude range of -60 meters to +5000 meters AMSL.
Certificates and approvals: CE CB SELV ROHS
MTBF: 100Khours minimum at full load at 25℃ ambient
Dimension: 190 x 52x 37mm (L x W x H)
Packing: 0.7Kg;20pcs/15Kg/0.02CBM
Model NO |
Input Voltage |
Output Voltage |
Output current |
Output Power |
Efficiency |
Dimension/mm |
APVM-150C-700 |
200-277VAC |
107-214VDC |
700mA |
150W |
92% |
191x52x37 |
APVM-150C-1050 |
200-277VAC |
72-144VDC |
1050mA |
150W |
92% |
191x52x37 |
APVM-150C-1400 |
200-277VAC |
54-107VDC |
1400mA |
150W |
92% |
191x52x37 |
APVM-150C-1750 |
200-277VAC |
42-84VDC |
1750mA |
147W |
92% |
191x52x37 |
APVM-150C-2100 |
200-277VAC |
36-72VDC |
2100mA |
150W |
92% |
191x52x37 |
APVM-150C-2800 |
200-277VAC |
27-54VDC |
2800mA |
150W |
92% |
191x52x37 |
APVM-150C-3500 |
200-277VAC |
21-42VDC |
3500mA |
147W |
92% |
191x52x37 |
APVM-150C-5000 |
200-277VAC |
15-30VDC |
5000mA |
150W |
92% |
191x52x37 |
Changzhou AMC FLEX Technology CO.,LTD has presented since 2012, focused on design, development and manufacturing LED power supplies of led lighting and advertising. Covered with 5000square meters production plant, 100 employees. Equipped with automatic production line, automatic equipment and advanced test lab.
We always take the leading technology and superior quality as its competitive advantage to serve our clients. All products are developed by ourselves under strictly procedures. Our footprint network covers more than 15 countries and regions mainly in whole Europe and middle east. The product series includes IP67 Waterproof LED power supply in plastic housing and aluminum housing, constant voltage and constant current output .etc.
AMCFLEX has established a modern enterprise management system including ERP Management system, ISO9001 quality management system,CRM customer management system,Most of its products have passed the certification of Rosh, CE, EMC,LVD, Australia SAA, South Africa IEC, Saudi SASO and CQC.
Starting its corporate activity with manufacturing of basic led power supplies , now we become a trustful and qualified supplier for global buyers.
If you want to get a problem-free and elegant solution for indoors and outdoors, all you need to do is to choose one of the products of AMCFLEX.
Apart from functionality, esthetics, efficiency, and quality expectations, maybe one of the most important points in outdoor luminaries or advertising signs is that they must be able to work efficiently for many years even in adverse weather conditions. AMCFLEX's APMS series LED Drivers meet all your quality needs including durability, reliability. These outdoor drivers have been tested in the harshest environment -40°C temperature to 85°C high temperature at full load to estimate the lifetime and function.
The work team guided by the concept of "high efficiency, energy saving and environmental friendly" designs and produces unique, high-tech, energy-saving, and environmentally-friendly drive power; with unique lighting fixtures to create functional, adaptable and efficient lighting projects.
TO deliver innovative light solutions by anticipating our customer’s needs. By understanding the lighting application, we design, test, and deliver comprehensive solutions that anticipate the customer’s total cost of different project and provide a positive experience. We collaborate with our partners to leverage technology, focus on research, and continuously improve our production, processes, and products.
We are pioneers in providing LED power supply solutions; with a vision of enlightening the world.
