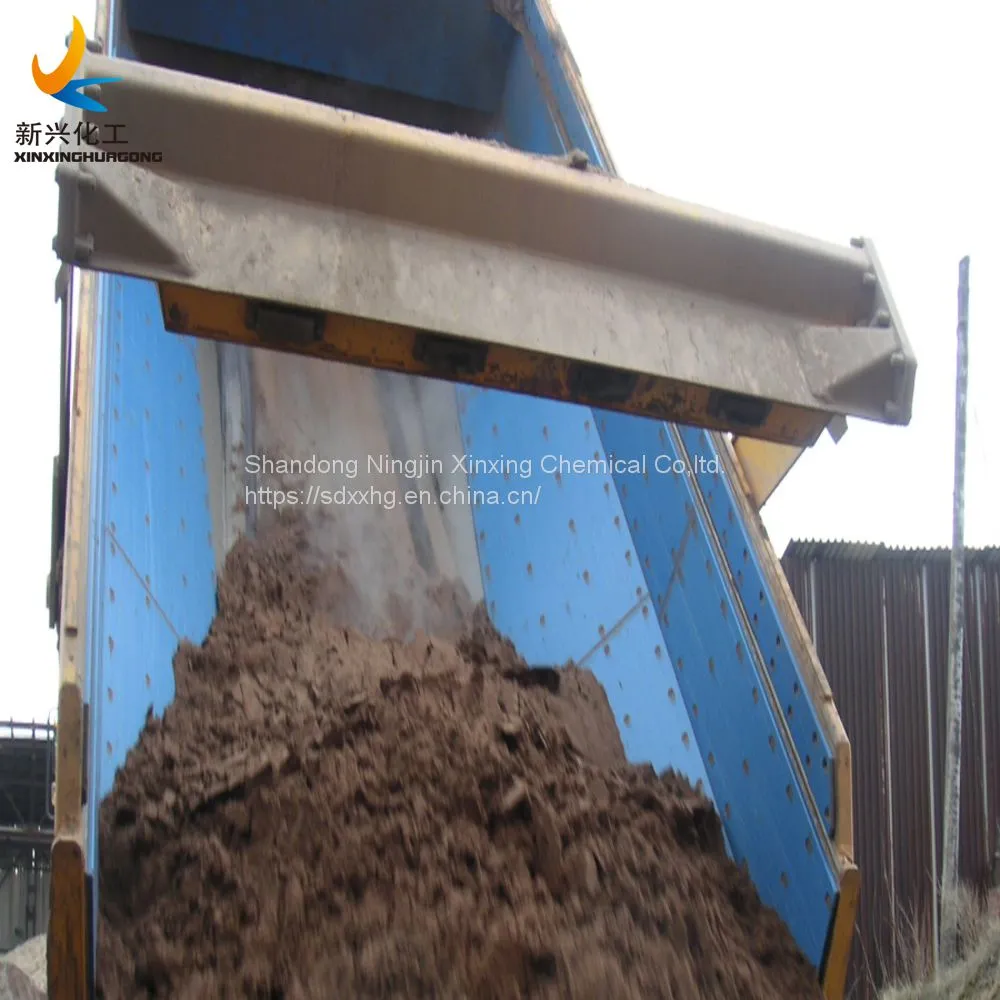

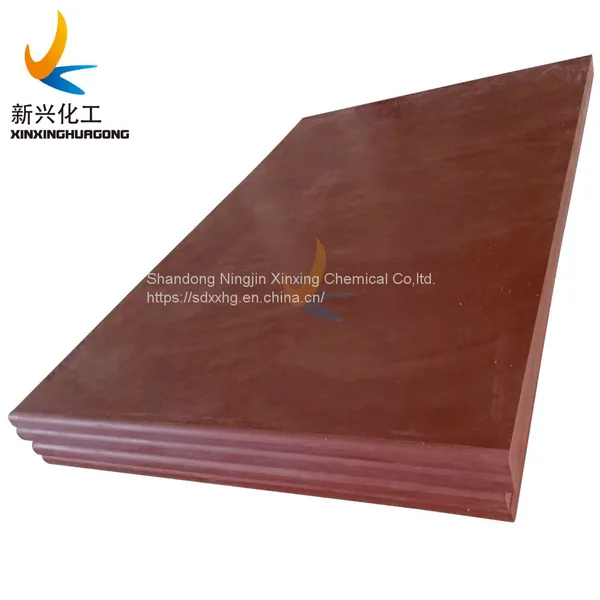

China best price of 10mm Thickness Natural Plastic UHMW PE 1000 Plate/UHMWPE sheets for turck liner
- 50000 Piece / Pieces per Month
- Qingdao port
- T/T
Product Details
Place of Origin: | China | Material: | PE | Size: | standard size 3048*1220*10 mm |
Thickness: | 10-250 mm |
Product Description
China best selling Polyethylene engineering plastic sheets solid HDPE UHMWPE boards with any sizes,color available
Products Description
10mm Thickness Natural White Plastic UHMW PE 1000 Plate/UHMWPE sheet
Our uhmwpe plastic sheet Characters:
1.very flat on the surface
2.The thickness tolerance is +2 -0,some made according to your requirements.
3.The color is pure and any color can be made by us.
4.We can give you an accurate size of UHMWPE Sheet with advanced machine.
5.Different shaped UHMWPE Sheets also can be made by us like bending sheet.
6.According to different requirements with different application, special specifications can be customized, like anti-UV, fire-resistant,anti-static and with other characters.
UHMWPE plastic sheet Specifications:
1. Thickness: 2- 300mm.
2. Width: 1000mm,1200,1300mm,1500mm,2000mm
3. Length: no limit
4. Surface: Smooth, Sand or corrugation.
5. Heating size change rate under 80°C: 52% (standard ≤60% ).
6. Tensile Strength in lengthways: 8.08 Mpa (Standard ≥7.0Mpa).
7. Tensile Strength in transverse: 7.71 Mpa (Standard ≥7.0Mpa).
8. Any color, machining with drawing available.
OEM Sevrice :
We provided you with various OEM Sevrice .HDPE Block ,HDPE Impact bar ,HDPE Strip ,HDPE rod and other HDPE parts .
Characters Of China best selling Polyethylene engineering plastic sheets solid HDPE UHMWPE boards with any sizes,color available :
Effectively attenuates neutron radiation particles and minimizes the gamma radiation released during their capture
Very good wear and abrasion resistance
High impact strength (particularly PE-UHMW)
Excellent chemical resistance
Low coefficient of friction
Very low water absorption
Moderate mechanical strength, stiffness and creep resistance
Excellent machinability
China best selling Polyethylene engineering plastic sheets solid HDPE UHMWPE boards with any sizes,color available sheets Standard Size:
1.Thickness: 6 - 300mm
3. Normal standard size:
Length(mm) | Width(mm) | Thickness(mm) |
2000 | 1000 | 6-300 |
3000 | 1500 | 6-300 |
4700 | 1200 | 6-300 |
5000 | 1300 | 6-300 |
4500 | 2000 | 6-300 |
3050 | 1220 | 6-100 |
Any small size need us to cut , we can satisfy your special need
Our Polyethylene sheet Type:
PE 300,PE 500 ,PE 1000,PE 2000
UHMWPE 3million----9million molecule weight
High Density Polyethylene
TICONA, TIVAR is also available
Product Name | Radiation Shielding Boron Added UHMWPE Sheet |
Material | Virgin PE Material |
Color | Black Color |
Standard | ISO9001, SGS etc. |
Grade | PE100, PE300, PE500, PE1000, PE2000 etc. |
Brand | Xinxing |
Density | 0.94-0.96 g/cm3 |
Thickness tolerance | +0.5/-0 mm |

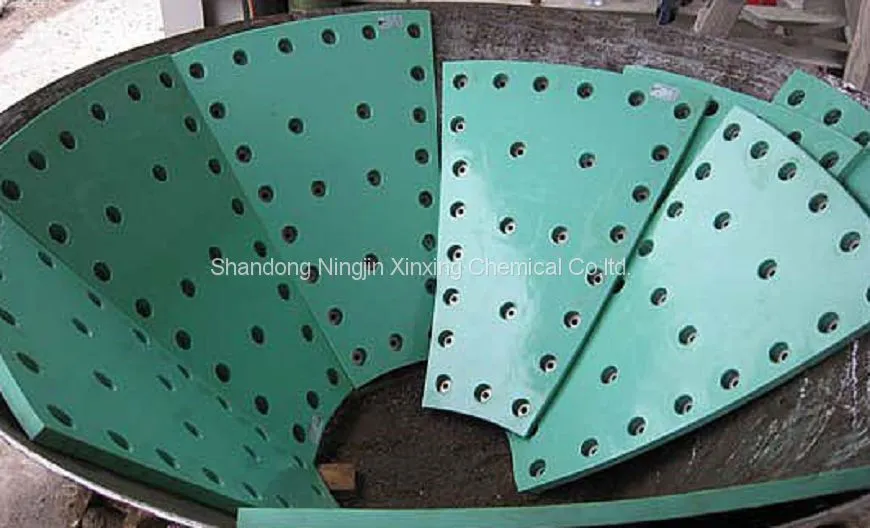

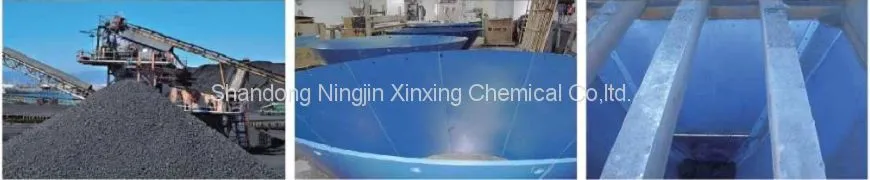

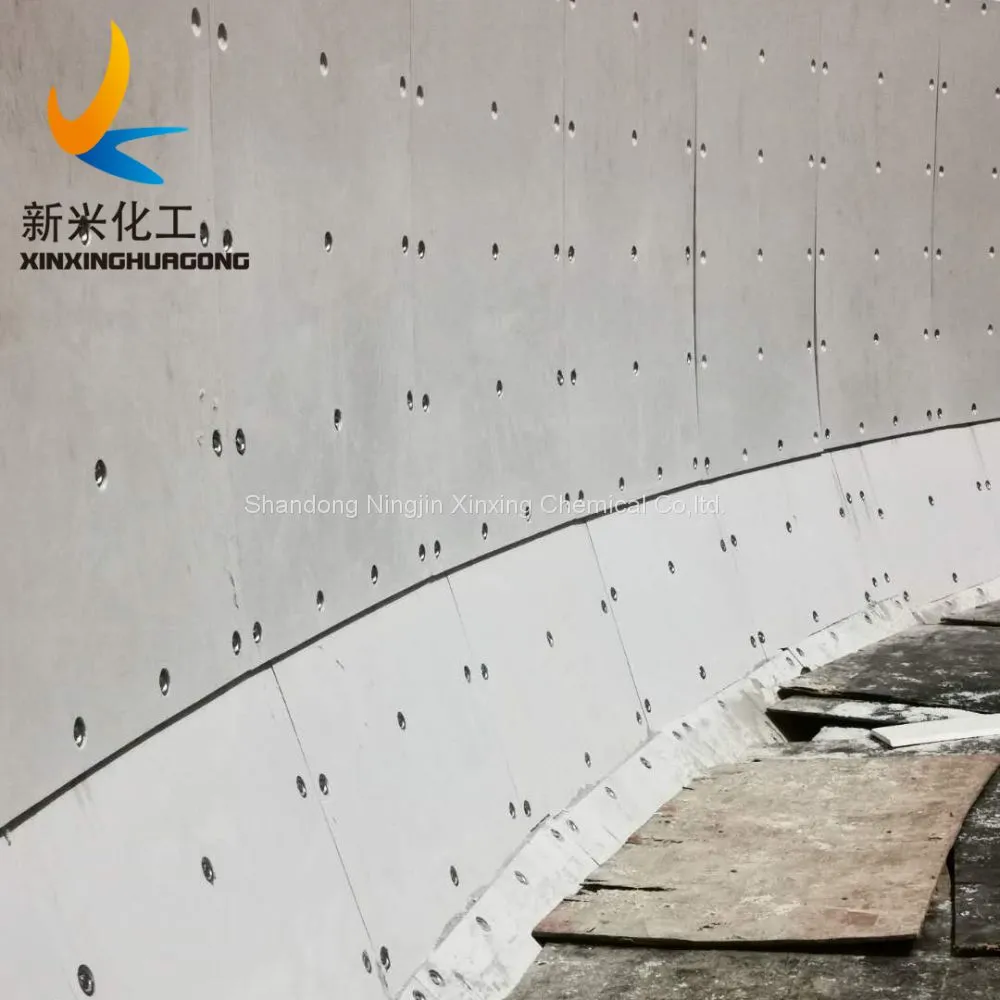

4. UHMW Sheet Applications

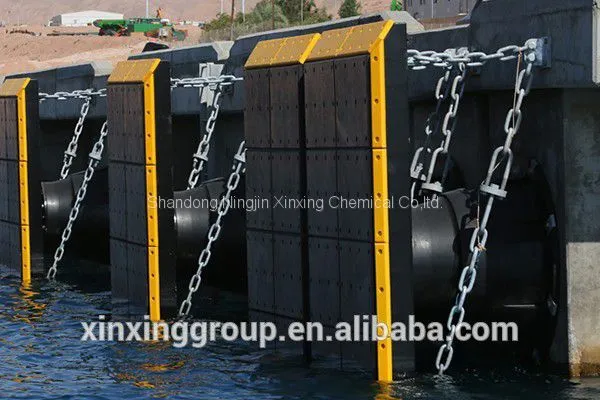

Application: marine UHMW-PE sheet; Replace carbon steel, stainless steel, bronze used in textile, paper making, food machinery, transportation, medical machinery, coal machinery, chemical industry and other departments.
Examples: Technical spindle, picking stick, gear, coupling, flower stem, buffer block, eccentric block, rod bushing and other wear resistant parts in textile industry. Besides, owing to its wear resistant is better than carbon steel, it can be shaped various different parts for machinery, including the gear in food machinery, worm gear, worm, bearing etc.
5. UHMW Sheet Techinal Data Sheet of UHMWPE Polyethylene Sheet
Property: | Test Method (Standard) | Ticona GUI4152 | Ticona GUI4150,4120 | Unit |
Molecular weight | 3-9 million | 3-9 million | ||
Density | ISO 1183-1:2012/DIN53479 | 0.92-0.96 | 0.93-0.96 | g/cm³ |
Compression strength | ISO 604:2002 | ≥30 | ≥32 | Mpa |
Tensile strength | ISO527-2:2012 | ≥20 | ≥22 | Mpa |
Elongation at break | ISO527-2:2012 | ≥300 | ≥300 | % |
Dynamic Friction coefficient | ASTM D 1894/GB10006-88 | ≤0.20 | ≤0.18 | |
Dynamic Friction coefficient | ASTM D 1894/GB10006-88 | ≤0.20 | ≤0.18 | |
Notched impact strength (Charpy) | ISO179-1:2010/GB/T 1043.1-2008 | ≥100 | ≥100 | kJ/m2 |
Abrasion wear index | ES-X60210-2008 | ≤30 | ≤30 | mg |
Vicat softing point | ISO306:2004 | ≥80 | ≥80 | °C |
Hardness shore-D | ISO 868:2003 | 65 | 66 | D |
