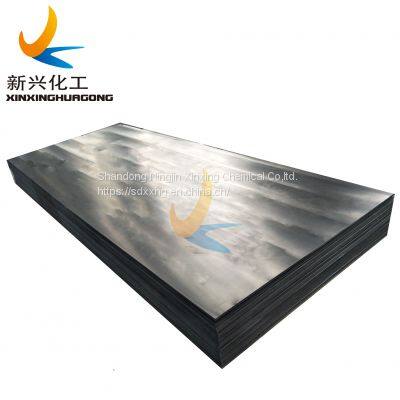

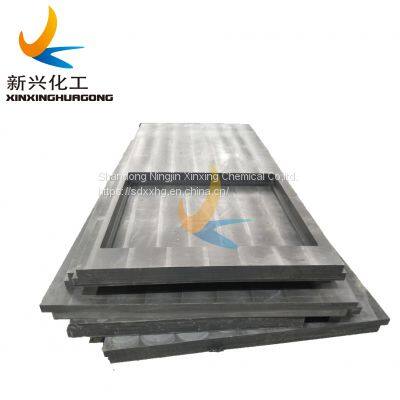

XinXing Radiation Shielding boron loaded uhmwpe sheets was specially designed for nuclear shielding applications and is used in a variety of applications including high intensity
X-rays, cancer treatment facilities, nuclear submarines, and nuclear power plants.
5% Boron by weight to shield neutrons, are boron loaded PE-(U)HMW grades. The high hydrogen content of PE
(U)HMW makes it very suitable for slowing down fast neutrons to lower energy thermal (slow) neutrons, which are then absorbed by the added boron compound. Whereas both PE-HMW and PE-UHMW are suitable for neutron shielding, PE-UHMW is often preferred because of its better deformation behaviour at high temperatures and its superior impact strength and wear resistance.
XinXing Borated Polyethylene Sheet Type:
UH15 /HM15 1.5% Boron
UH30/HM30 3% Boron
UH50/HM50/HD50 5%Boron -10% Boron
5% Borated polyethylene slabs/sheets Characters:
Effectively attenuates neutron radiation particles and minimizes the gamma radiation released during their capture
Very good wear and abrasion resistance
High impact strength (particularly PE-UHMW)
Excellent chemical resistance
Low coefficient of friction
Very low water absorption
Moderate mechanical strength, stiffness and creep resistance
Excellent machinability
5% Borated polyethylene slabs/sheets Standard Size:
1.Thickness: 6 - 300mm
3. Normal standard size:
Length(mm) |
Width(mm) |
Thickness(mm) |
2000 |
1000 |
6-300 |
3000 |
1500 |
6-300 |
4700 |
1200 |
6-300 |
5000 |
1300 |
6-300 |
4500 |
2000 |
6-300 |
3050 |
1220 |
6-100 |
Any small size need us to cut , we can satisfy your special need
Our Polyethylene sheet Type:
PE 300,PE 500 ,PE 1000,PE 2000
UHMWPE 3million----9million molecule weight
High Density Polyethylene
TICONA, TIVAR is also available
5% borated polyethylene sheet Color:
Black,Blue,Green,White,Yellow,Red,Orange or other customer color according
to your requirements
| Product Name | Radiation Shielding Boron Added UHMWPE Sheet |
| Material | Virgin PE Material |
| Color | Black Color |
| Standard | ISO9001, SGS etc. |
| Grade | PE100, PE300, PE500, PE1000, PE2000 etc. |
| Brand | Xinxing |
| Density | 0.94-0.96 g/cm3 |
| Thickness tolerance | +0.5/-0 mm |
4. UHMW Sheet Applications
Application: marine UHMW-PE sheet; Replace carbon steel, stainless steel, bronze used in textile, paper making, food machinery, transportation, medical machinery, coal machinery, chemical industry and other departments.
Examples: Technical spindle, picking stick, gear, coupling, flower stem, buffer block, eccentric block, rod bushing and other wear resistant parts in textile industry. Besides, owing to its wear resistant is better than carbon steel, it can be shaped various different parts for machinery, including the gear in food machinery, worm gear, worm, bearing etc.
5. UHMW Sheet Techinal Data Sheet of Borated Polyethylene Sheet
| Property: | Test Method (Standard) | Ticona GUI4152 | Ticona GUI4150,4120 | Unit |
| Molecular weight | 3-9 million | 3-9 million | ||
| Density | ISO 1183-1:2012/DIN53479 | 0.92-0.96 | 0.93-0.96 | g/cm³ |
| Compression strength | ISO 604:2002 | ≥30 | ≥32 | Mpa |
| Tensile strength | ISO527-2:2012 | ≥20 | ≥22 | Mpa |
| Elongation at break | ISO527-2:2012 | ≥300 | ≥300 | % |
| Dynamic Friction coefficient | ASTM D 1894/GB10006-88 | ≤0.20 | ≤0.18 | |
| Dynamic Friction coefficient | ASTM D 1894/GB10006-88 | ≤0.20 | ≤0.18 | |
| Notched impact strength (Charpy) | ISO179-1:2010/GB/T 1043.1-2008 | ≥100 | ≥100 | kJ/m2 |
| Abrasion wear index | ES-X60210-2008 | ≤30 | ≤30 | mg |
| Vicat softing point | ISO306:2004 | ≥80 | ≥80 | °C |
| Hardness shore-D | ISO 868:2003 | 65 | 66 | D |
