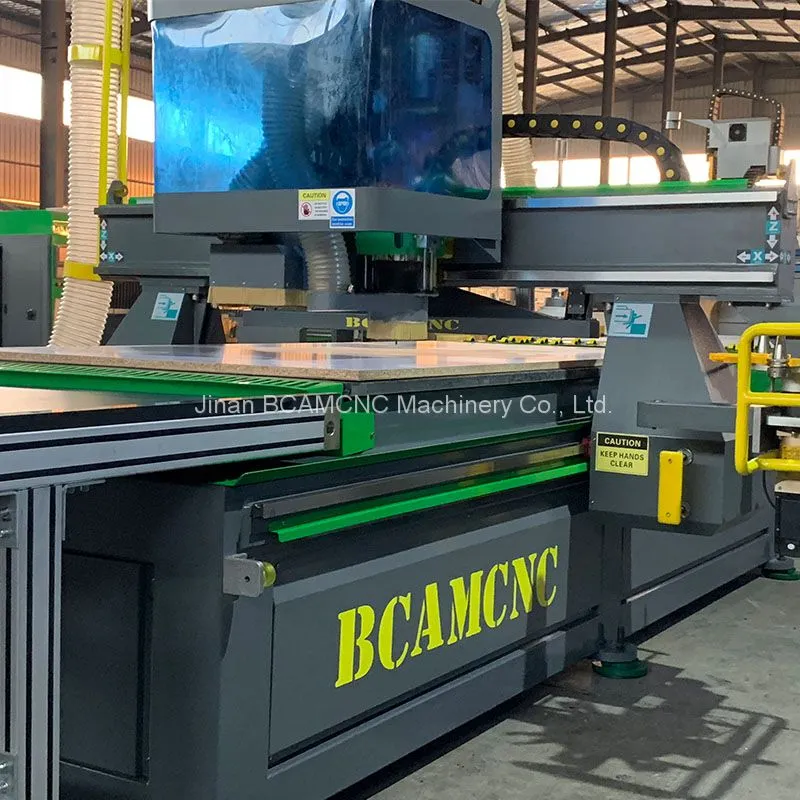

Factory supply wood panel furniture cabinet cnc nesting machine loading and unloading with ATC
1 Working area: 2000*3000*200mm|7*10ft
2 CE standard
3 Panel Loading and Unloading system (Automatic )
4 Italian HSD 9.5KW(12HP) Electrospindle with 8-position Automatic Tool Changer(ISO30)
5 15mm Heavy duty body
6 Active safety system
7 Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission
8 25mm Heavy-duty Hiwin HG Series linear bearing
9 Vacuum table with Pump
10 Taiwan Syntec 6MB
11 Japan Yaskawa servo motor and drivers system
12 Delta brand VFD-B variable frenquency drive
13 10 Position Automatic Tool Changer (options: 12,14,16 position)
14 Tool Cone Holder-for east bit changing
15 Solid State limit switches
16 3 Years Warranty
arameters |
Standard Specifications BCM2030E |
X,Y,Z Working Area |
1300*2500*200mm|4*8ft |
Optional Working Area |
1300*1300*200mm|4*4ft |
Optional Working Area |
1500*3000*200mm|5*10ft |
Optional Working Area |
2000*3000*200mm|7*10ft |
Spindle Power |
9.5kw Italy HSD air cooling spindle |
X,Y,Z Traveling Positioning Accuracy |
±0.02/2000mm |
Table Surface |
Vacuum table |
X,Y,Z Rail and Trasmission |
X Y axis gear transmission, Z axis TaiwanTBI Ball Screw |
Max. Rapid Travel Rate |
80m/min |
Max. Working Speed |
70m/min |
Loading and Unloading Speed |
15m/min |
Spindle Speed |
24000r/min |
Drive Motors |
4 sets 850W Yaskawa servo motor and drivers |
Working Voltage |
AC380v/50HZ/3 phase |
Command Language |
G Code |
Operating System |
Taiwan Syntec 6MB control system |
Interface |
USB,NETWORK |
Software Compatibility |
Option:Alpacam,Carbinets Version ,BCAMNESTTING, solidworks,etc. |
Running Environment |
Temperature: -20℃~45℃ Relative Humidity: 5%~75% |
Advantages:
1. unmatched vacuum system
2. quality of components
3. excellent workpiece retention
4. safety first
5. more optional of service
6. customizable solution
BCAMCNC gained a global reputation as one of the most reliable and trusted CNC machinery solution providers.
BCAMCNC , a professional machinery manufacturing company, with 6000 square meters factory，a highly specialized workforce and more than 10 Patent Technologies has gained a global reputation as one of the most reliable and trusted CNC machinery solution providers.
BCAMCNC comprehensive in the production, design, manufacturing, trade and service of CNC machine like CNC Router, Laser cutting machine, Digital cutting table, Fiber laser cutting machine and Edge banding machine etc., Our wide variety products used in the field of Woodworking, Sign Making, Panel Furniture Production, Jewelry pieces, Packaging etc.
