dual metal steel plate directly supplier

Name: dual metal steel plate directly supplier
Brand: Shang Yi
Price: Negotiable

FOB Price

Negotiable / Ton

20 Tons(Min.Order)

Supply Ability 10000 Ton / Tons per Month
Port Tian Jin
Payment Terms:T/T L/C

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Shang Yi	Place of Origin:	China	Model Number:	3+3,6+4,8+4,10+4,12+8 etc
Length:	3000mm+	Thickness:	3-25mm	Type:	Steel Plate
Width:	1400mm+	Application:	Other	Surface Treatment:	Coated
Technique:	Hot Rolled	Standard:	GB	Special Use:	Wear Resistant Steel

Product Description

Chromium carbide overlay Hardfacing Wear Plate

Our wear plates are manufactured by welding one or multiple wear resistant layers on a medium or low carbon steel base plate.

The overlay alloy has a high amount of chromium carbide hard particles which makes the plate have good wear and impact resistance.

Overlay thickness range: 3-25mm

Wear plate size: 1400*3000,1400*3400, 1400*3500, 2100*3500, customized.

SPECIFICATION:

Base Plate	Q235/Q345.
Hardfacing layer	High chromium high carbide overlay.
Chemical Composition	C(%): 3.0-5.0 ,Cr(%): 25-40.
Microstructure	The carbide (Cr7C3) volume fraction on the microstructure is above 50%.
Hardness	HRC58-65.
Surface Treatment	Hardfacing, clading, coated.
Technique	Hardfacing, open arc welding, submerged arc welding.
Wear Resistance	High wear resistance,30 times higher than low carbon steel and 12 times than heat treated steel.
Impact Resistance	Medium.
Flatness tolerance	±3mm/m.
Thickness tolerance	Uniform overlay thickness, with tolerance within 0-0.5mm.
Main Thicknesses	3+3,4+4, 5+5 6+4,6+5,6+6,6+8 8+4,8+5,8+6,8+7,8+8 10+4,10+5,10+6,10+7,10+8,10+9,10+10,10+20 12+4,12+5,12+6,12+7,12+8,12+10,12+11,12+12 14+6,14+8,14+10,16+6,16+8,16+10 18+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10 Customized.
Plate Size	Open arc welding wear plate:14003400mm Submerged arc welding wear plate:14003000mm, 14003500mm, 21003500mm. Customized.
Place of Origin	China.
Application	Mining, Steel, Cement, Power, Port, etc.

Our wear plates are used to make many complex wear parts to be positioned in high wear places.We have several equipment to transform our plates: six sets of plasma cutting machine , 4 bending machines and pressing machines,with high processing capacity operated by engineers and technical experts, we can provide wear plate cutting, bending, bolting, punching and welding according to customer's drawings.

1.Drilling Holes

Straight holes and Countersunk holes.
2.Bolt embedded welding in the back
Embedding the Pre-processed bolt in the back of wear plate.
3.Bending
This wear plate can be cold formed and made into curve or cone.
4.Welding

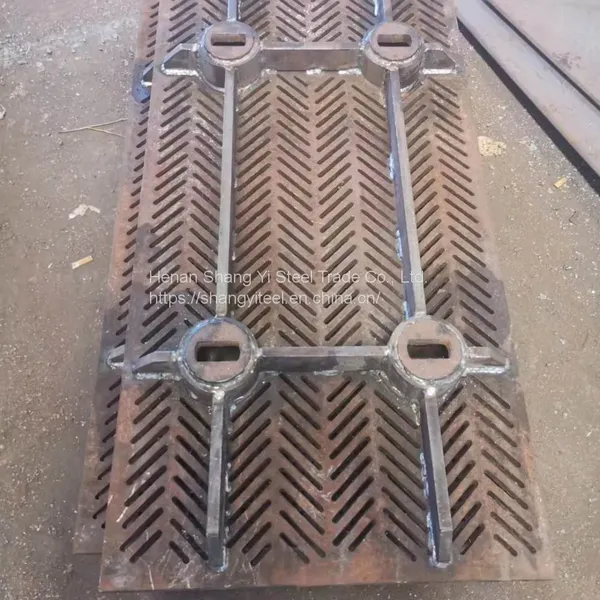

Our wear plate can be welded and assembled into kinds of wear parts.

Wear pipe, Elbow, Square to round transition

We also introduced in our factory automatic welding equipment for pipes (internal and external) meeting the increasing demand for small diameter wear pipes.

Wear pipes

1. Steel pipe with regular base material + overlay, pipes are welded with our automatic welding machine resulting in good shaped and flat surface pipes.

2. Bending the wear plate into round pipes

3. Assembling the wear plate into square pipes

Automatic welding, metallurgical bonding, available to weld the maximum pipe diameter of 80mm and maximum pipe length of 3000mm.

Wear elbow

Weld directly on the elbow wall

using wear plate to make lobster back bend

wear plate used to make tube with round top and square bottom
