High-strength wear-resistant steel plates have excellent comprehensive properties such as high wear resistance, high hardness, high strength, high toughness, low carbon, low alloy, and convenient processing. It can effectively reduce the production cost of the enterprise, improve the quality of the product, and enhance the competitive advantage of the enterprise. In recent years, it has been widely used in many industries.

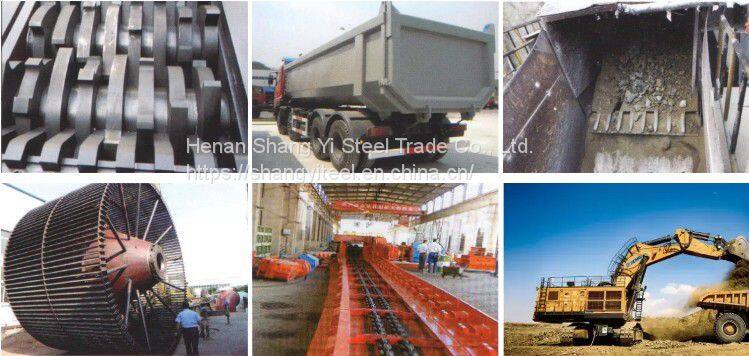

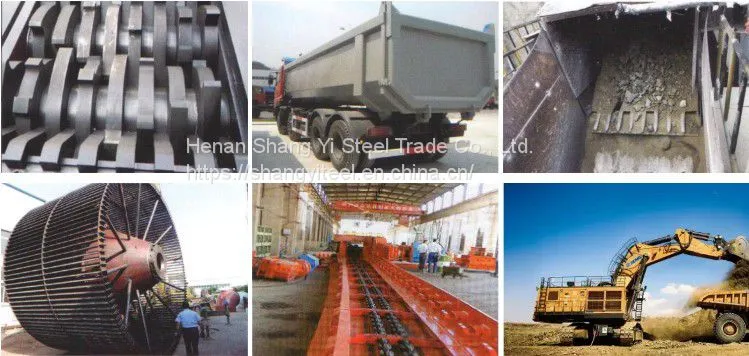

1. Construction machinery and equipment: mining dump truck bottom plate, side plate, loader bulldozer excavator bucket plate, side blade plate, bucket bottom plate, blade, slab, road paver liner...
2. Loading and unloading mechanical equipment: unloading mill chain plates, hopper liners, grab blades, medium-sized automatic dump trucks...
3. Construction machinery and equipment: cement pusher tooth plate, concrete mixer liner, mixing floor liner, tunnel boring equipment...
4. Metallurgical machinery and equipment: steel rolling equipment, breaking machine, iron ore sintering machine liner, sintering material conveying liner, trough liner...
5. Mining stone equipment: electric shovel, stone crusher liner, coal mining machine, roadheader, coal mine conveyor, blade. Stone plant loading and unloading equipment...
6. Power generation equipment: coal mill liner, bucket wheel liner, coal scuttle, coal distribution pipe, coal distributor grid, coal unloading equipment liner...
7. Other mechanical equipment: sand mill barrel, wear-resistant blades, various port machinery wear-resistant parts, shot blasting machine liner...
Features: high hardness/high strength/high wear resistance/weight reduction/cost reduction
Grades: NM360, NM400, NM450, NM500, NM550, NM600
Uses: bulldozers, mining dump trucks, excavators, scrapers, crushers, feeders, loaders, coal mine scraper conveyors, containers, blades, etc.
Stock: thickness 3~100, width 2000~2200, length 8000~12000
Delivery status: Q+T
Designation |
Grade |
Thickness |
Width |
Standard |
Wear-resistant steel | ||||
360 HB |
NM360 |
6~100mm |
up to 2,500 mm |
GB/T24186 |
400 HB |
NM400 |
3~100mm |
up to 3,000 mm |
GB/T24186 |
450 HB |
NM450 |
3~60mm |
up to 3,000 mm |
GB/T24186 |
500 HB |
NM500 |
3~60mm |
up to 2,500 mm |
GB/T24186 |
Construction steel | ||||
Carbon steel |
Q235B |
3~300mm |
up to 4,000 mm |
GB/T700 |
Structural steel |
Q355(345)B/D/E |
3~400mm |
up to 4,000 mm |
GB/T1591 |
S355JR/J0/J2/K2 |
3~400mm |
up to 4,000 mm |
EN 10025-2 |
|
|
Normalized fine grained steel |
Q355NB/ND/NE |
up to 250 mm |
up to 4,000 mm |
GB/T1591 |
S355NL |
up to 250 mm |
up to 4,000 mm |
EN 10025-3 |
|
High-strength steel | ||||
|
Thermomechanically rolled fine grained steel |
Q460C/D/E |
8~200mm |
up to 2,500 mm |
GB/T16270 |
|
Thermomechanically rolled fine grained steel |
Q550D/E |
8~150mm |
up to 2,500 mm |
GB/T16270 |
Q+T |
Q690D/E，WQ690D/E S690Q/QL |
8~200mm |
up to 2,500 mm |
- |
Pressure vessel | ||||
Q245R |
8~150mm |
up to 3,000 mm |
GB 713 |
|
Q345R |
8~200mm |
up to 3,000 mm |
GB 713 |
|
16MnDR |
8~120mm |
up to 3,000 mm |
GB 3531 |
|
09MnNiDR |
8~120mm |
up to 3,000 mm |
GB 3531 |
|
15CrMoR |
8~150mm |
up to 3,000 mm |
GB 713 |
|
SA516 Gr.60/70 |
8~150mm |
up to 3,000 mm |
ASTM A516M |
|
P355GH |
8~100mm |
up to 3,000 mm |
EN 10028-3 |
|
