RE3010UUCC0P5 Supplier Cross Roller Bearing China Manufacturer
US$ 1 - 100000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OEM
Place of Origin:
China
Model Number:
RE3010UUCC0
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
RE3510UUCC0P5 Supplier Cross Roller Bearing China ManufacturerUS$ 1 - 100000MOQ: 1 Piece -
RE4010UUCC0P5 Supplier Cross Roller Bearing China ManufacturerUS$ 1 - 100000MOQ: 1 Piece
-
RE4510UUCC0P5 Supplier Cross Roller Bearing China ManufacturerUS$ 1 - 100000MOQ: 1 Piece
-
RE5013UUCC0P5 Supplier Cross Roller Bearing China ManufacturerUS$ 1 - 100000MOQ: 1 Piece
-
RE6013UUCC0P5 Supplier Cross Roller Bearing China ManufacturerUS$ 1 - 100000MOQ: 1 Piece
Brand Name
OEM
Place of Origin
China
Model Number
RE3010UUCC0
Number of Row
Single Row
Precision Rating
P4 P5 P2
Outside Diameter
20, 500
Bore Size
24, 1500

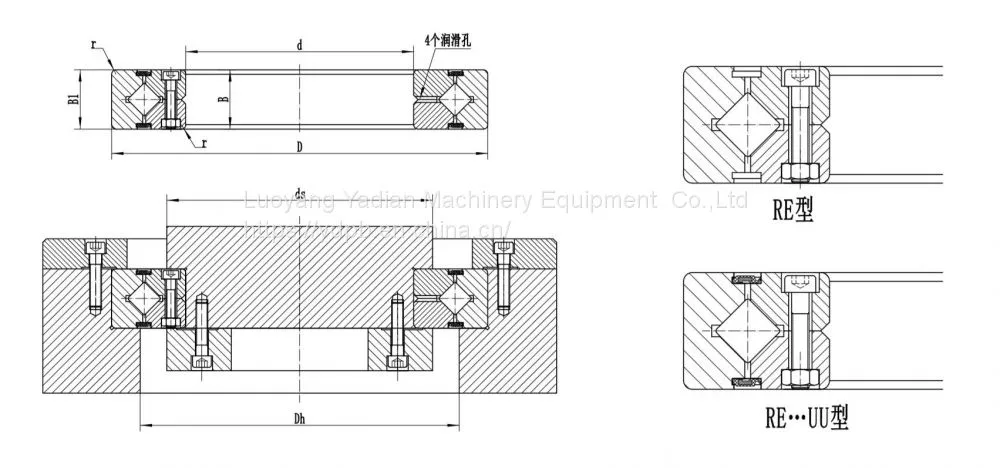

RE series structure
Due to the X arrangement of the rolling elements, these bearings can support axial forces from both directions as well as radial forces, tilting moment loads and any combination of loads with a single bearing position. This allows designs with two bearing positions to be reduced to a single bearing position. Crossed roller bearings are very rigid, have high running accuracy and are supplied with normal clearance, little clearance or preload. The bearing outer rings can be easily located in the adjacent construction by means of clamping rings.
Application:
Machine tools
Industrial robots
AerospaceGeneral industrial machinery
Electronic devices
Medical and assistive
Precision instruments
Transport systems
Other manufacturing industries
Semiconductor and LCD manufacturing equipment
| Shaft diameter (mm) |
Bearings Model | Boundary Dimensions | Shoulder dimensions |
Basic load rating (radial) |
Weight | |||||||
| Inner diameter d |
Outer diameter D |
Roller pitch circle diameter dp |
Width B/B1 |
Greasing hole | rmin | ds | Dh | C kN |
C0 kN |
kg | ||
| a-b | ||||||||||||
| 20 | RE2008 | 20 | 36 | 29 | 8 | 2-0.8 | 0.5 | 23.5 | 30.5 | 3.23 | 3.1 | 0.04 |
| 25 | RE2508 | 25 | 41 | 34 | 8 | 2-0.8 | 0.5 | 28.5 | 35.5 | 3.63 | 3.83 | 0.05 |
| 30 | RE3010 | 30 | 55 | 43.5 | 10 | 2.5-1 | 0.6 | 37 | 47 | 7.35 | 8.36 | 0.12 |
| 35 | RE3510 | 35 | 60 | 48.5 | 10 | 2.5-1 | 0.6 | 41 | 51.5 | 7.64 | 9.12 | 0.13 |
| 40 | RE4010 | 40 | 65 | 53.5 | 10 | 2.5-1 | 0.6 | 47.5 | 58 | 8.33 | 10.6 | 0.16 |
| 45 | RE4510 | 45 | 70 | 58.5 | 10 | 2.5-1 | 0.6 | 51 | 61.5 | 8.62 | 11.3 | 0.17 |
| 50 | RE5013 | 50 | 80 | 66 | 13 | 2.5-1.6 | 0.6 | 57.5 | 72 | 16.7 | 20.9 | 0.27 |
| 60 | RE6013 | 60 | 90 | 76 | 13 | 2.5-1.6 | 0.6 | 68 | 82 | 18 | 24.3 | 0.3 |
| 70 | RE7013 | 70 | 100 | 86 | 13 | 2.5-1.6 | 0.6 | 78 | 92 | 19.4 | 27.7 | 0.35 |
| 80 | RE8016 | 80 | 120 | 101.4 | 16 | 3-1.6 | 0.6 | 91 | 111 | 30.1 | 42.1 | 0.7 |
| 90 | RE9016 | 90 | 130 | 112 | 16 | 3-1.6 | 1 | 98 | 118 | 31.4 | 45.3 | 0.75 |
| 100 | RE10016 | 100 | 140 | 121.1 | 16 | 3-1.6 | 1 | 109 | 129 | 31.7 | 48.6 | 0.83 |
| RE10020 | 150 | 127 | 20 | 3.5-1.6 | 1 | 113 | 133 | 33.1 | 50.9 | 1.45 | ||
| 110 | RE11012 | 110 | 135 | 123.3 | 12 | 2.5-1 | 0.6 | 117 | 127 | 12.5 | 24.1 | 0.4 |
| RE11015 | 145 | 129 | 15 | 3-1.6 | 0.6 | 122 | 136 | 23.7 | 41.5 | 0.75 | ||
| RE11020 | 160 | 137 | 20 | 3.5-1.6 | 1 | 120 | 140 | 34 | 54 | 1.56 | ||
