Features of Cassava Desander and Desilter
Processing Capacity: 10-20m3/hour
Application Scope: Remove the sand and silt from the starch slurry

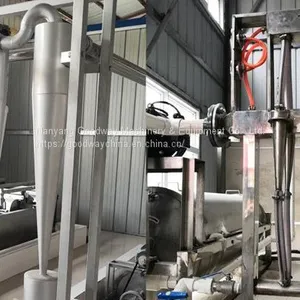

Product Introduction: Cassava processing machine, desander, and desilter, the desanding cyclone for cassava starch processing
1. No moving part
2. High wear resistance
3. High performance and efficiency
4. Very low maintenance
5. Easy installation
6. Low-cost separation
Product Description of Desander and Desilter
Solid control equipment that separates sand and silt from the raw starch milk. Desander is installed before the desilter and normally the solids diameter for desander to be separated would be larger than for desilter.
Product Application of Desander and Desilter
1. Sand and silt separation from cassava starch slurry
2. Sand and silt separation from potato starch slurry
Technical Parameters of Desander
Model no. |
GD-CS-3 |
Production capacity |
20m3/hour |
Sand removal rate |
≥99% |
Working voltage |
380V/50Hz 3Phase |
Motor power |
|
Hydraulic cyclone series |
3 |
Cyclone cone angle |
8.90 |
Working pressure |
0.25-0.4MPa |
Inlet/Outlet diameter |
40mm |
Separation size |
45-74μm |
Dimension(L×W×H) |
950×600×1800mm |
Weight |
32kg |
Technical Parameters of Desilter
Model no. |
GD-CN-7 |
Production capacity |
10m3/hour |
Sand removal rate |
≥99% |
Working voltage |
380V/50Hz 3Phase |
Motor power |
7.5kw |
Hydraulic cyclone series |
7 |
Cyclone cone angle |
8.80 |
Working pressure |
0.25-0.4MPa |
Inlet/Outlet diameter |
60mm |
Separation size |
15-44μm |
Dimension(L×W×H) |
600×400×1250mm |
Weight |
88kg |
Nanyang Goodway Machinery & Equipment Co., Ltd. is a leading manufacturer and supplier of Cassava & Potato Processing Machineries. We provide casdewatering press for sale, potato starch machine, potato powder making machine, desanding system, desanding plant, desander for sale, desanding machine, desanding equipment and so on. Want to know about desander price? Please contact us.
