450w Mono Half Cell Solar Panel for Home Solar Power System

450w Mono Half Cell Solar Panel for Home Solar Power System thumbnail-1
450w Mono Half Cell Solar Panel for Home Solar Power System thumbnail-2
450w Mono Half Cell Solar Panel for Home Solar Power System thumbnail-3
450w Mono Half Cell Solar Panel for Home Solar Power System thumbnail-4

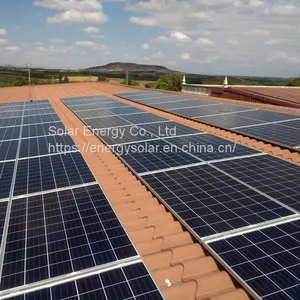

450w Mono Half Cell Solar Panel for Home Solar Power System thumbnail-5
450w Mono Half Cell Solar Panel for Home Solar Power System photo-1
450w Mono Half Cell Solar Panel for Home Solar Power System photo-2

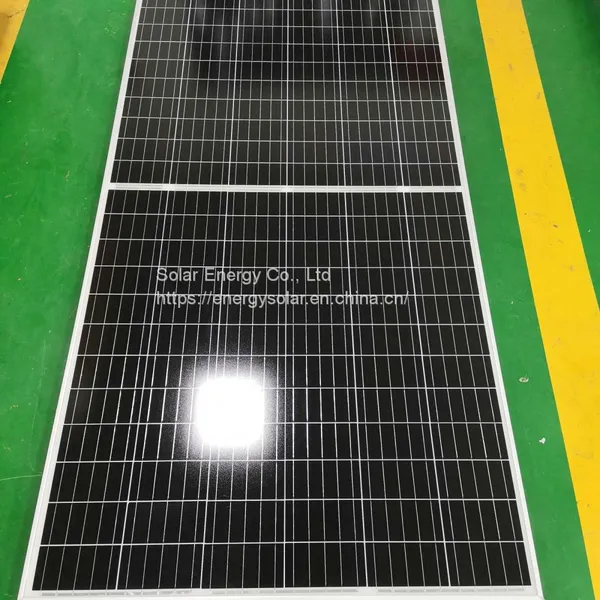

450w Mono Half Cell Solar Panel for Home Solar Power System photo-3

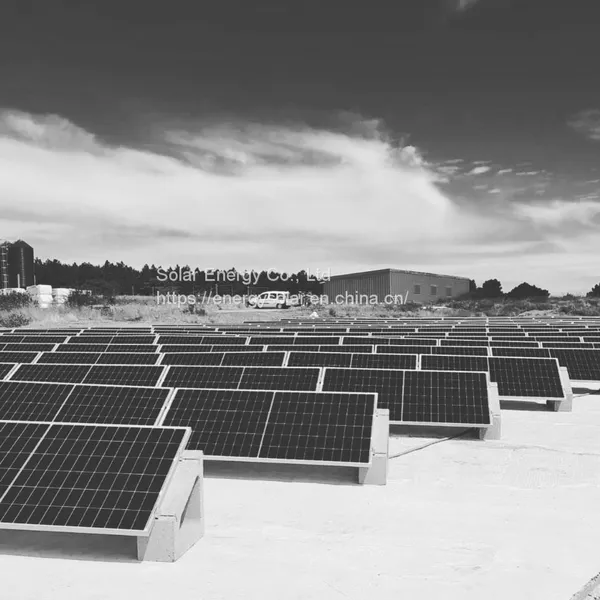

450w Mono Half Cell Solar Panel for Home Solar Power System photo-4

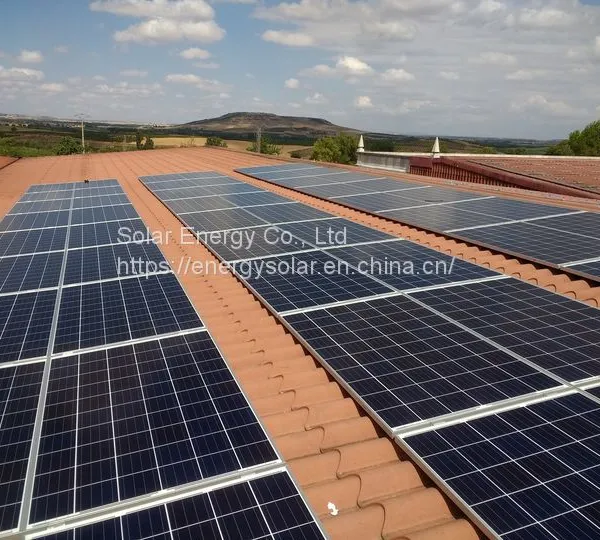

450w Mono Half Cell Solar Panel for Home Solar Power System photo-5
US$ 0.19 - 0.22 MOQ: 13500 Watts
Key Specifications
Get Latest Price
Brand Name:
Energysolar
Place of Origin:
China
Model Number:
ES-450W-144P
Contact Supplier Request Quote Chat Now
Solar Energy Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

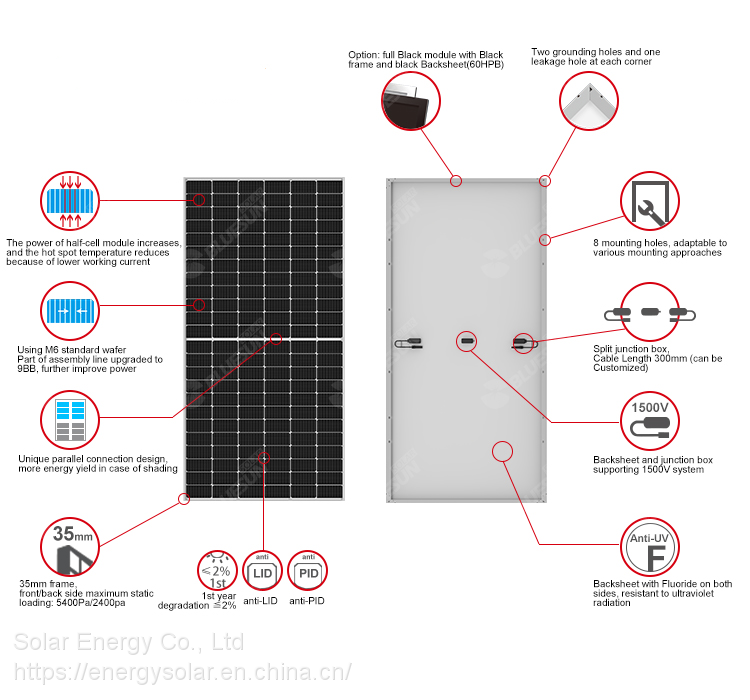

Brand Name Energysolar
Place of Origin China
Model Number ES-450W-144P
Material Monocrystalline Silicon
Size 2115*1052*35mm
Max. Power 450w
Number of Cells 144cells

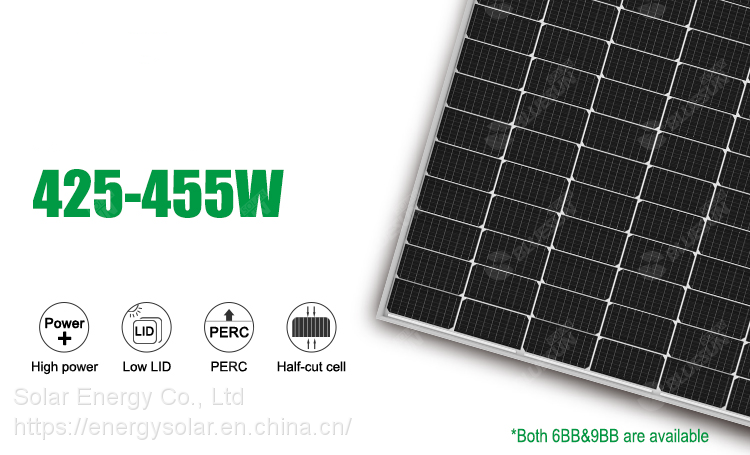

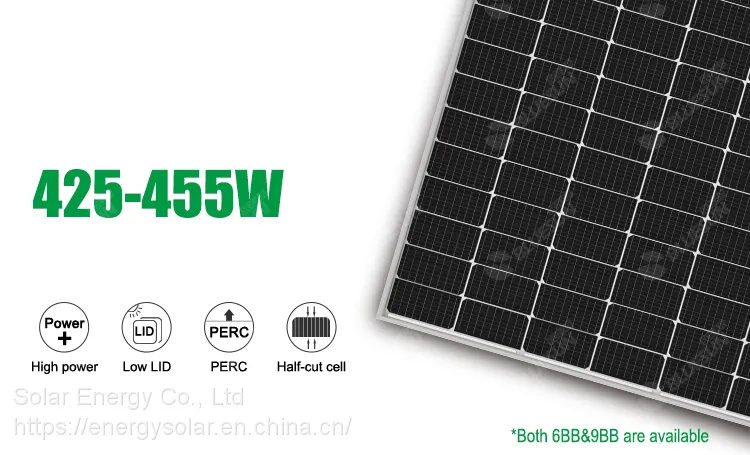

Electrical Characteristics
Model Number
ES425M-72HPH
ES430M-72HPH
ES435M-72HPH
ES440M-72HPH
ES445M-72HPH
ES450M-72HPH
ES455M-72HPH
Maximum Power (Pmax/W)
425
430
435
440
445
450
455
Open Circuit Voltage (Voc/V)
48.3
48.5
48.7
48.9
49.1
49.3
49.5
Short Circuit Current (Isc/A)
11.23
11.31
11.39
11.46
11.53
11.60
11.66
Voltage at Maximum Power (Vmp/V)
40.5
40.7
40.9
41.1
41.3
41.5
41.7
Current at Maximum Power (Imp/A)
10.50
10.57
10.64
10.71
10.78
10.85
10.92
Module Efficiency(%)
19.6
19.8
20
20.2
20.5
20.7
20.9
STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25 ℃, Spectra at AM1.5

Model
BSM-60HPH
BSM-72HPH
BSM-72HBD

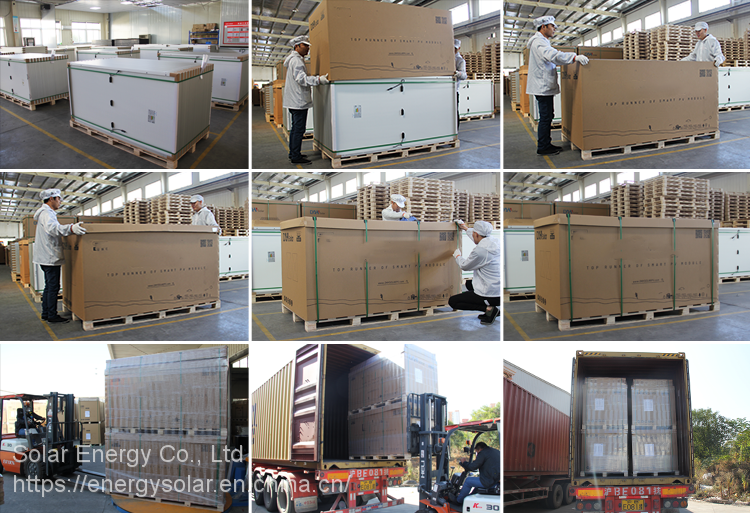

Pcs/Pallet
30
30
30
Pcs/20'GP
180
150
150
Pcs/40'HQ
720
660
600

Shipping Methods
Arrive AT
Delivery From
By Sea
Sea Port You Want
Any port in China
By Air
Air Port You want
Any port in China
By Railway
Your Door
Any station in China
By Express
Your Door
Zhengzhou

Payment:





Payment Term
T/T
EXW
30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)
30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union
Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container


Product Tags: 450w half cell solar panel , 450w mono solar panel , home solar power system
