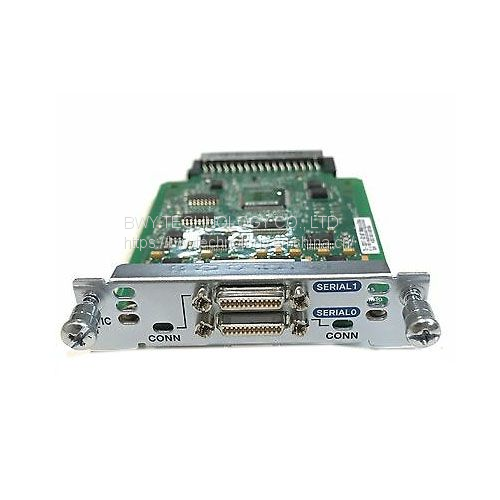

HWIC-2T Overview
Cisco HWIC-2T is a 2-port serial WAN interface card, made for Cisco1800, 1900, 2800, 2900, 3800, and 3900 Series Integrated Services Routers. HWICs help customers enable applications such as WAN access, legacy protocol transport, console server, and dial access server. You can mix and match HWICs to tailor cost-effective solutions for common networking problems such as remote network management, external dial-modem access, low-density WAN aggregation, legacy protocol transport, and high-port-density support.
HWIC-2T Specification
| HWIC-2T Specifications | |
Type | Cisco 2-Port Serial WAN Interface Card |
Manufacturer | Cisco |
Part Number | HWIC-2T |
Device Type | Expansion module |
Form factor | Plug-in module |
Specifications | |
Synchronous Support | Yes |
Synchronous Maximum Speed (Per Port) | 8 Mbps |
Asynchronous Support | Yes |
Asynchronous Maximum Speed (Per Port) | 115.2 kbps |
Bisync Support | Yes |
Serial Protocols | EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21 |
Network Clock Synchronization | Yes |
NEBS | Type 2/4 |
TelecommPTT | TBR1 and 2 JATE Digital NEBS |
Safety Approvals | UL 60950, CAN/CSA 22.2, CSA60950, GB 4943, AS/NZS 60950, EN60950, IEC 60950 |
Immunity | EN300386, CISPR24, EN55024, EN50082-1, 61000-4-2/3/4/5/6/8/11 |
Emissions | FCC Part 15 Class A, ICES-003 Class A, EN55022 Class A, CISPR22 Class A, |
Physical Specifications | Singlewide HWIC, no slot restrictions Dimensions (H x W x D) 0.8 x 3.1 x 5.6 in. (2.1 x 7.9 x 14.2 cm) |
Environmental Specifications | Operating temperature: 32 to 104°F (0 to 40°C) NEBS short-term operating temperature: 32 to 131°F (0 to 50°C) Storage temperature: -4 to 149°F (-20 to 65°C) Relative humidity: 10 to 90%, noncondensing |
