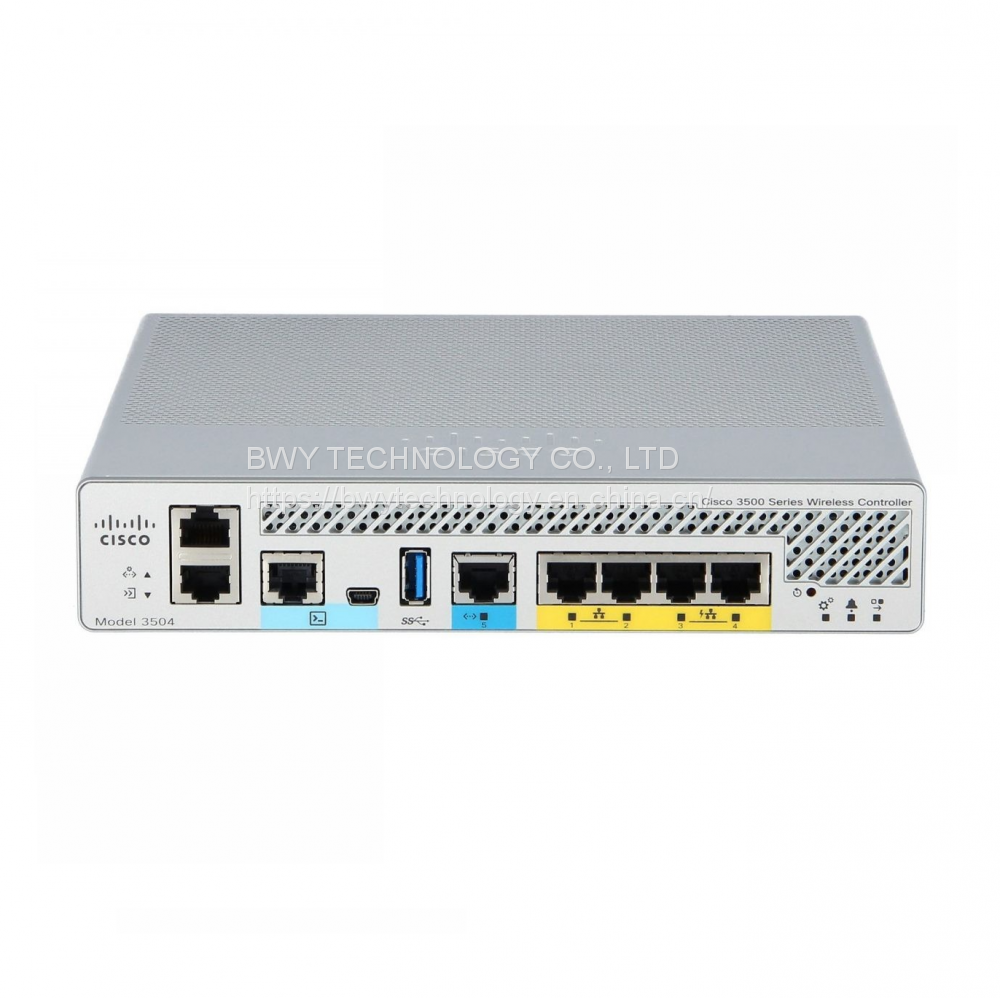

AIR-CT3504-K9 Cisco WLAN Controller Cisco 3504 Wireless Controller
- 100 Unit / Units per Month
- GUANGZHOU
- T/T PayPal Other Cash
- 1 days
- AC6003-8-8AP Huawei Wireless Access Controllers
- AC6005-8-8AP Huawei AC6005 Wireless Controller Bundle(Including AC6005-8,Resource License 8AP,AC 110/220V)
- AC6605-26-PWR-16AP 2357916 Huawei AC6005 Wireless Controller Bundle(Including AC6605-26-PWR,Resource License 16AP)
- AC6805 Huawei Wireless Access Controllers mainframe (12*GE ports, 12*10GE SFP+ ports, 2*40GE QSFP+ ports, no power)
- C3KX-NM-1G Network Modules Catalyst 3560-X, 3750-X Series Catalyst 3K-X 1G Network Module option PID
- C3KX-NM-10G Cisco Network Modules Catalyst 3560-X, 3750-X Series Catalyst 3K-X 10G Network Module
Product Details
Brand Name: | Cisco | Place of Origin: | China | Model Number: | AIR-CT3504-K9 |
Product Description
AIR-CT3504-K9 Overview
AIR-CT3504-K9 is the Cisco 3504 Wireless Controller. The Cisco 3504 Wireless Controller provides centralized control, management, and troubleshooting for small to medium-sized enterprises and branch offices. It offers flexibility to support multiple deployment modes in the same controller—a centralized mode for campus environments, Cisco FlexConnect® mode for lean branches managed over the WAN, and a mesh (bridge) mode for deployments in which full Ethernet cabling is unavailable. As a component of the Cisco Unified Wireless Network, the 3504 controller provides real-time communications between Cisco Aironet® access points, Cisco Prime® Infrastructure, and the Cisco Mobility Services Engine, and is interoperable with the Cisco 5520 and 8540 Wireless Controllers.
- AIR-CT3504-K9 Specification
AIR-CT3504-K9 Specification Chassis Height
One rack-unit (1RU)
Throughput
4 Gbps
Number of APs supported
150
Number of clients supported
3000
Processor
Cavium Network Processor—CN7240-AAP 8-core, 1.5 GHz
Memory Options
Control/Data Plane Memory—8GB DDR4
Boot Flash—8MB SPI NOR Serial Boot
Bulk Flash—32GB eMMC
Redundancy, Service Ports
2x 1G Cu
Data Ports
1x 5G/mGig Cu, 4x 1G Cu (2 ports 802.3at PSE)
Storage Temperature
–4° F to 158° F (–20° C to 70° C)
Operating Temperature
32° F to 104° F (0° C to 40° C)
Storage Humidity
0% to 95% RH non-condensing
Operating Humidity
5% to 95% RH non-condensing
Power Adapter
54VDC/1.05A, 12VDC/3.75A
Wireless
IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave 1 and Wave 2
Wired, switching, and routing
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX specification, 1000BASE-T. 1000BASE-SX, 1000-BASE-LH, IEEE 802.1Q VLAN tagging, IEEE 802.1AX Link Aggregation
Data Request For Comments (RFC)
· RFC 768 UDP
· RFC 791 IP
· RFC 2460 IPv6
· RFC 792 Internet Control Message Protocol (ICMP)
· RFC 793 TCP
· RFC 826 Address Resolution Protocol (ARP)
· RFC 1122 Requirements for Internet Hosts
· RFC 1519 Classless Interdomain Routing (CIDR)
· RFC 1542 BOOTP
· RFC 2131 Dynamic Host Configuration Protocol (DHCP)
· RFC 5415 CAPWAP Protocol
· RFC 5416 CAPWAP Binding for 802.11
Security standards
· Wi-Fi Protected Access (WPA)
· IEEE 802.11i (WPA2, RSN)
· RFC 1321 MD5 Message-Digest Algorithm
· RFC 1851 Encapsulating Security Payload (ESP) Triple Data Encryption Standard (3DES) Transform
· RFC 2104 HMAC: Keyed Hashing for Message Authentication
· RFC 2246 Transport Layer Security (TLS) Protocol Version 1.0
· RFC 2401 Security Architecture for the Internet Protocol
· RFC 2403 HMAC-MD5-96 within ESP and Authentication Header (AH)
· RFC 2404 HMAC-SHA-1-96 within ESP and AH
· RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV
· RFC 2407 Interpretation for Internet Security Association and Key Management Protocol (ISAKMP)
· RFC 2408 ISAKMP
· RFC 2409 Internet Key Exchange (IKE)
· RFC 2451 ESP Cipher Block Chaining (CBC)-Mode Cipher Algorithms
· RFC 3280 Internet X.509 Public Key Infrastructure (PKI) Certificate and Certificate Revocation List (CRL) Profile
· RFC 4347 Datagram Transport Layer Security
· RFC 5426 TLS Protocol Version 1.2
Encryption
Wired Equivalent Privacy (WEP) and Temporal Key Integrity Protocol-Message Integrity Check
(TKIP-MIC):· RC4 40, 104 and 128 bits (both static and shared keys)
· Advanced Encryption Standard (AES): CBC, Counter with CBC-MAC (CCM), Counter with CBC Message Authentication Code Protocol (CCMP)
· Data Encryption Standard (DES): DES-CBC, 3DES
· Secure Sockets Layer (SSL) and TLS: RC4 128-bit and RSA 1024- and 2048-bit
· DTLS: AES-CBC
· IPsec: DES-CBC, 3DES, AES-CBC
· 802.1AE MACsec encryption
Authentication, Authorization, and Accounting (AAA)
· IEEE 802.1X
· RFC 2548 Microsoft Vendor-Specific RADIUS Attributes
· RFC 2716 Point-to-Point Protocol (PPP) Extensible Authentication Protocol (EAP)-TLS
· RFC 2865 RADIUS Authentication
· RFC 2866 RADIUS Accounting
· RFC 2867 RADIUS Tunnel Accounting
· RFC 2869 RADIUS Extensions
· RFC 3576 Dynamic Authorization Extensions to RADIUS
· RFC 5176 Dynamic Authorization Extensions to RADIUS
· RFC 3579 RADIUS Support for EAP
· RFC 3580 IEEE 802.1X RADIUS Guidelines
· RFC 3748 EAP
· Web-based authentication
· TACACS support for management users
Management
· Simple Network Management Protocol (SNMP) v1, v2c, v3
· RFC 854 Telnet
· RFC 1155 Management Information for TCP/IP-Based Internets
· RFC 1156 MIB
· RFC 1157 SNMP
· RFC 1213 SNMP MIB II
· RFC 1350 Trivial File Transfer Protocol (TFTP)
· RFC 1643 Ethernet MIB
· RFC 2030 Simple Network Time Protocol (SNTP)
· RFC 2616 HTTP
· RFC 2665 Ethernet-Like Interface Types MIB
· RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering, and Virtual Extensions
· RFC 2819 Remote Monitoring RMON MIB
· RFC 2863 Interfaces Group MIB
· RFC 3164 Syslog
· RFC 3414 User-Based Security Model (USM) for SNMPv3
· RFC 3418 MIB for SNMP
· RFC 3636 Definitions of Managed Objects for IEEE 802.3 MAUs
· Cisco private MIBs
Management interfaces
· Web-based: HTTP/HTTPS
· Command-line interface: Telnet, Secure Shell (SSH) Protocol, serial port
· Cisco Prime Infrastructure
Interfaces and indicators
· 1x Multigigabit Ethernet interface (up to 5 Gigabit Ethernet) + 4x 1 Gigabit Ethernet interfaces (RJ-45)
· 1x service port: 1 Gigabit Ethernet port (RJ-45)
· 1x redundancy port: 1 Gigabit Ethernet port (RJ-45)
· 1x console port: Serial port (RJ-45)
· 1x console port: Serial port (mini-B USB)
· 1x USB 3.0 port
· LED indicators: Network link, diagnostics
Physical and environmental
Dimensions: 1.73 x 9.5 x 8.5 in. (43.94 x 214.3 x 215.9 mm)
Weight: 4.4lbs
Temperature:
Operating: 32 to 104 °F (0 to 40°C)
Storage: -4 to 158 °F (-20 to 70°C)
Humidity:
Operating Humidity: 5% to 95% RH non-condensing
Storage Humidity: 0% to 95% RH non-condensing
Power adapter: Input power: 100 to 240 VAC; 50/60 Hz
Heat dissipation (without PoE): 47W, 160BTU/hr
Heat dissipation (with PoE): 98W, 335BTU/hr
Regulatory compliance
CE Markings per directives 2004/108/EC and 2006/95/EC Safety:
· UL 60950-1 Second Edition
· CAN/CSA-C22.2 No. 60950-1 Second Edition
· EN 60950-1 Second Edition
· IEC 60950-1 Second Edition
· AS/NZS 60950-1
· GB4943 2011 EMC - Emissions:
· 47CFR Part 15 (CFR 47) Class B
· AS/NZS CISPR22 Class B
· EN 55032 Class B
· ICES003 Class A VCCI Class B
· EN 61000-3-2 EN 61000-3-3 KN22 Class B
· CNS13438 Class B EMC - Immunity:
· EN 55024
· CISPR24
· EN 300386
· KN24
