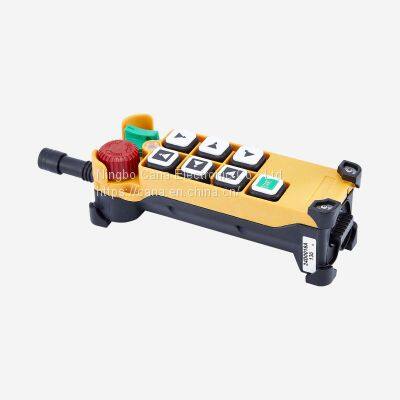

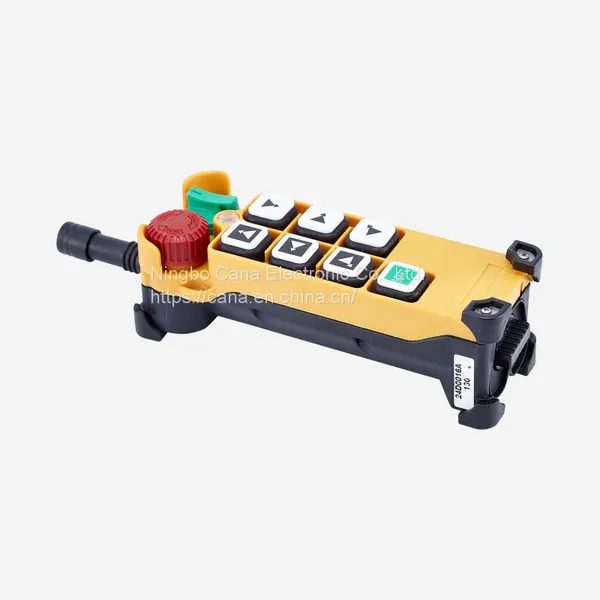

Universal F24-6D Industrial Radio Wireless Remote Control 6 Double Speed Keys UTING for Overhead Crane 12V 18-65V 65-440V AC/DC
- Ningbo,Shanghai
- T/T D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
-
Universal F24-6D Industrial Radio Wireless Remote Control 6 Double Speed Keys 2 Step Buttons TELEcrane for Overhead Crane 36V 220V 380V AC
-
F21-4S Industrial Radio Wireless Remote Control 4 Channel UTING for Overhead Crane Remote Control 12V 18-65V 65-440V AC/DC
-
Industrial Remote Control F21-2D Hoist Crane Lift 3 Buttons Double Speed 1 Receiver+ 1 Transmitter for Truck Hoist Crane
-
Universal Telecontrol F21-E2 Industrial Radio Wireless Remote Control AC/DC for Crane 1 Transmitter 1 Receiver
-
Telecontrol UTING F21-2S Industrial Radio Remote Control AC/DC Universal Wireless Control for Crane 2 Transmitters 1 Receiver
-
Universal Telecontrol F21-E2 Industrial Radio Wireless Remote Control AC/DC for Crane 2 Transmitters 1 Receiver
Product Details
| Brand Name | UTING | Place of Origin | China | |
| Model Number | F24-6D | Use | Universal |
Product Description
;;;;;;;;;;;; A letter from China Factiry ;;;;;;;;;;;;
1. The warranty is 12 months (No Artificial damage)
2. Due to the transport restrictions, the battery is not in the package, you should buy AA batteries yourself to ues.
3. We are the factory from China, please do not worry about the quality of our products and our service.
4. If you have any questions about the products and logistics, you can send message to us, we will reply as soon as possible.
5. Thank you for your trust and cooperation!

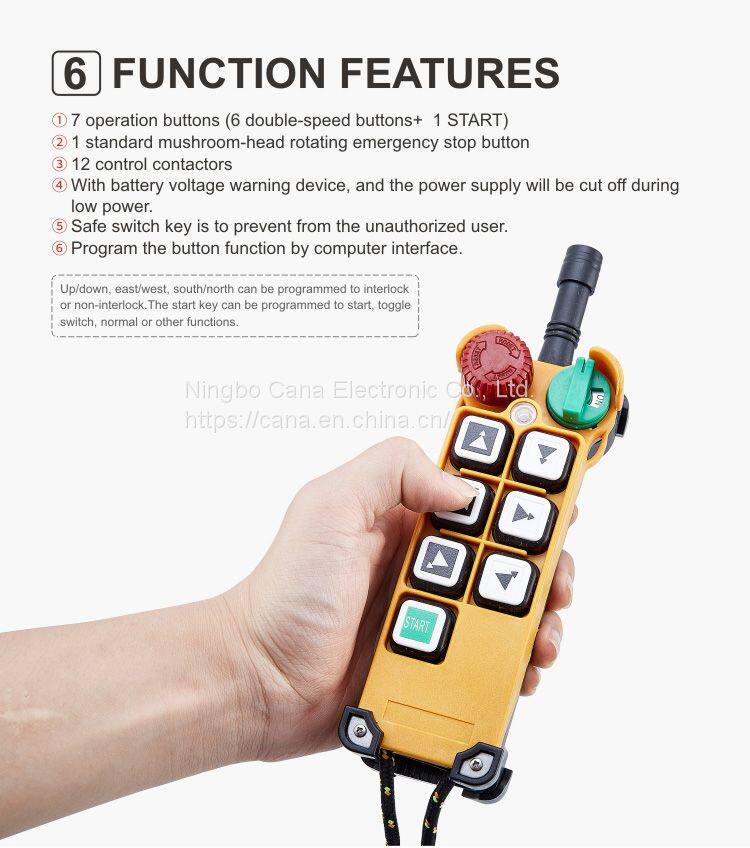

F24-6D Function Characteristic :

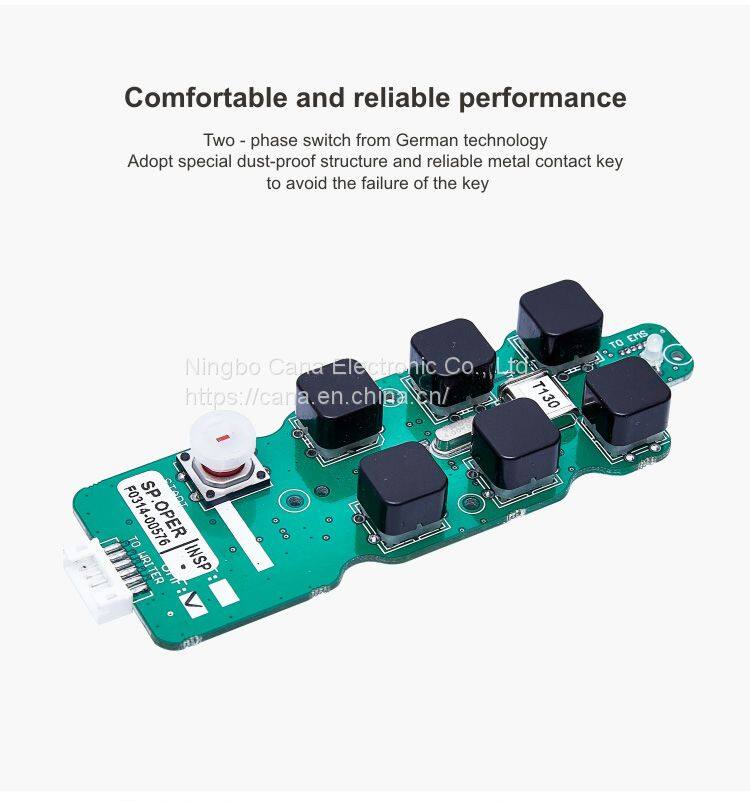

1. Have 7 function keys (6 double speed buttons + 1 start button ).
2. Control contact is up to 12.
3. With battery voltage warning device, the power supply is cut off during low power.
4. Safety switch key is to prevent from unauthorized user.
5. Program the button function by computer software.
6. Up/down, east/west, south/north can be programmed to interlock or non-interlock, toggle or normal etc.
7. Start button can be program to be start, normal, toggle function etc.

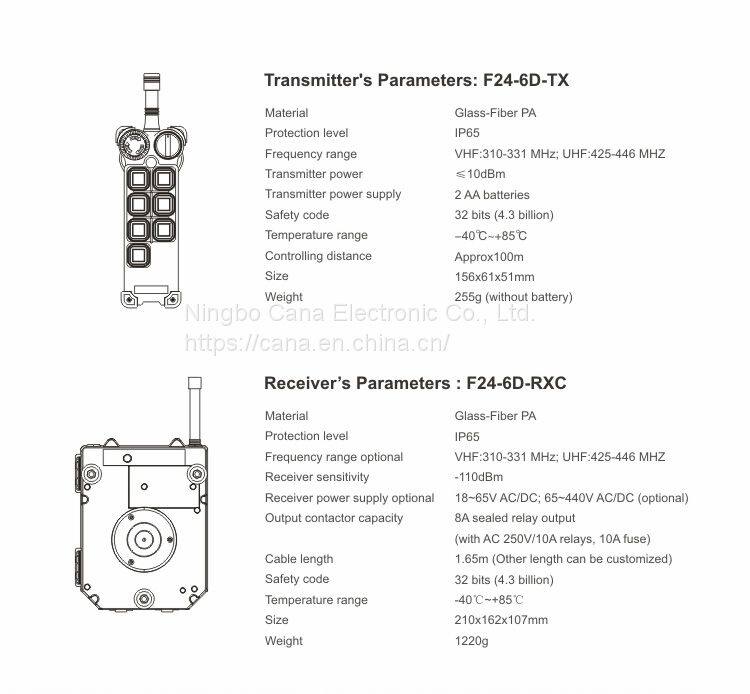

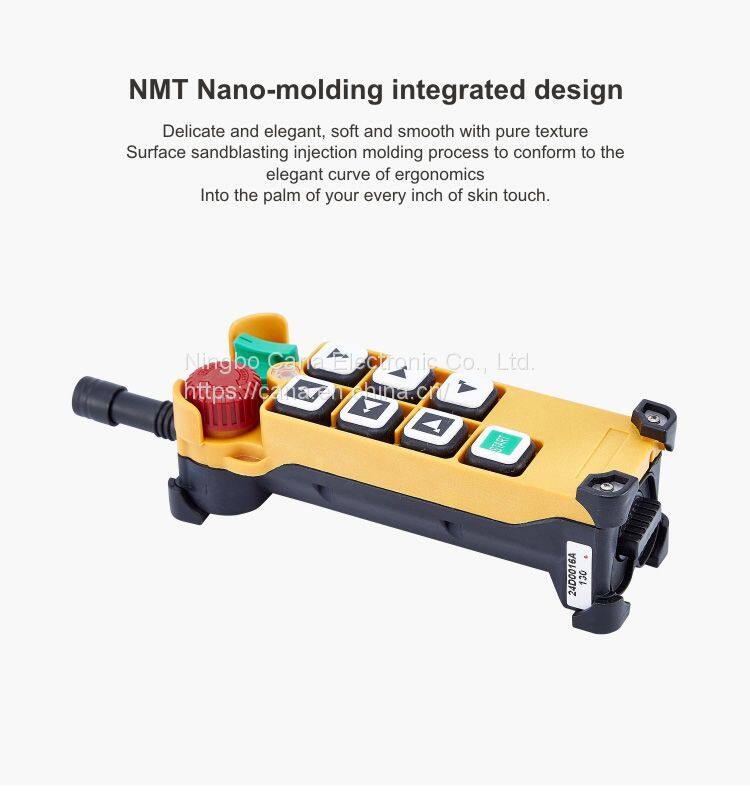

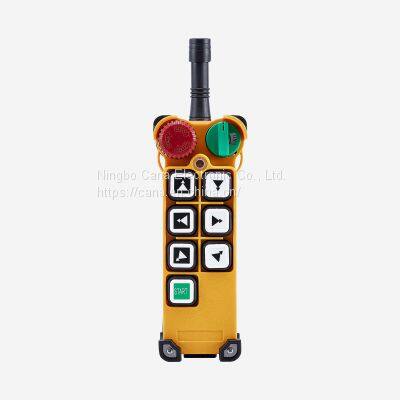

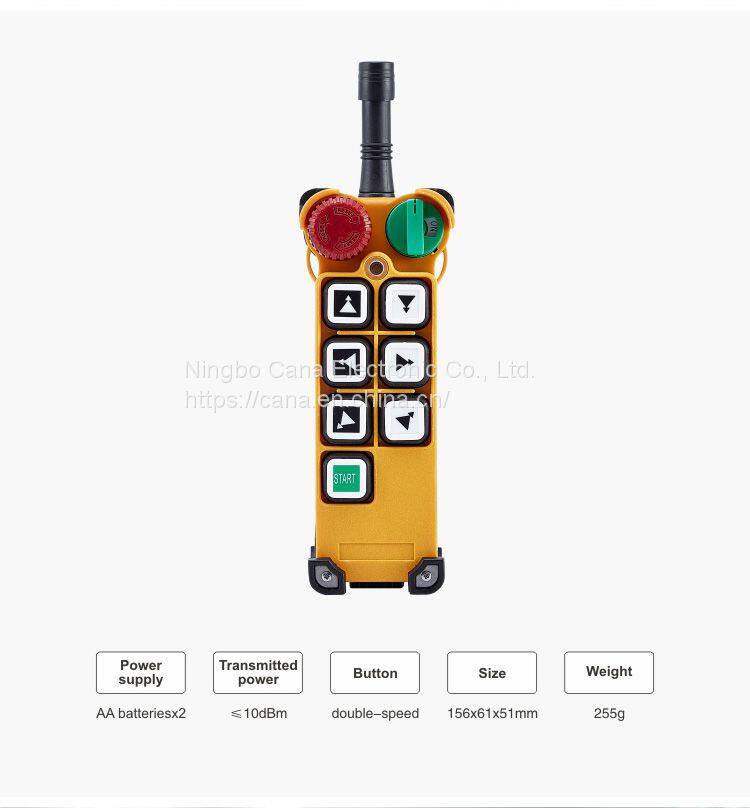

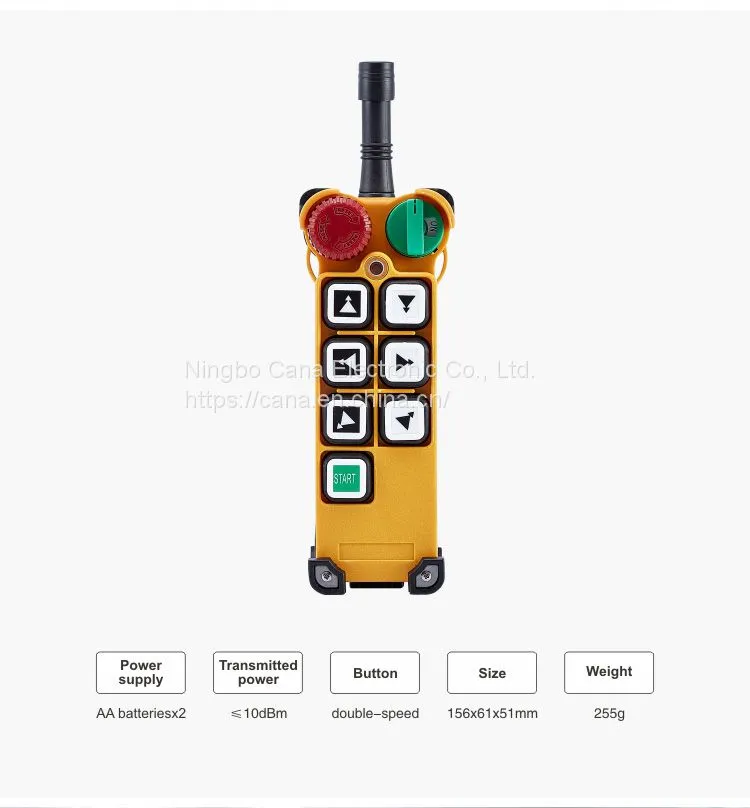

Transmitter Parameters : F24-6D-TX | |
Material | Glass-Fiber PA |

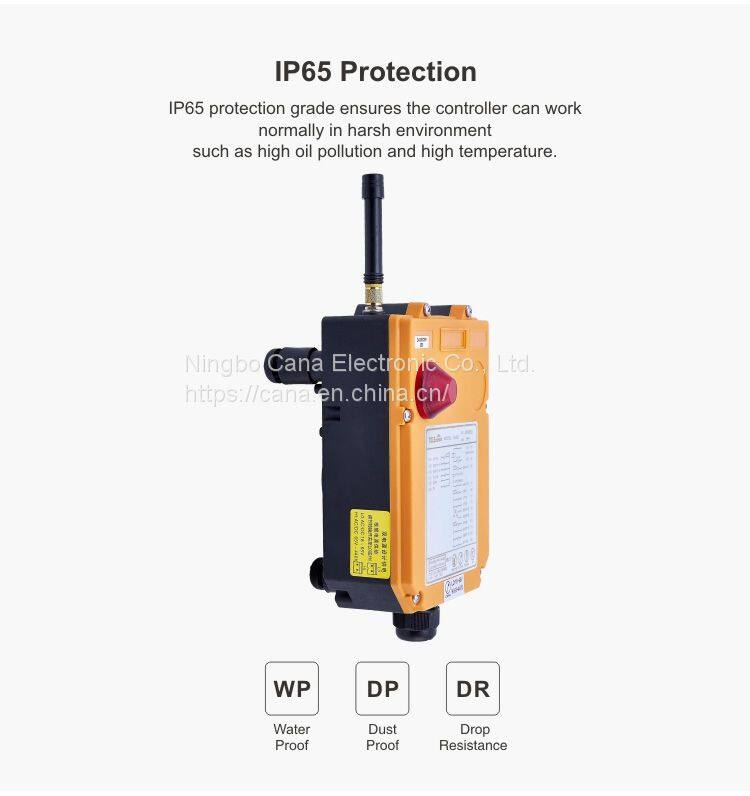

Protection level | IP65 |
Frequency range | VHF:310-331 MHz; UHF:425-446 MHz(optional) |
Transmitter power | <=10dBm |
Transmitter power supply | Two AA batteries |
Safety code | 32 bits (4.3 billion) |
Temperature range | -40℃~+85℃ |
Controlling distance | Approx100m |
Certification | CE, FCC, ISO9000 |
Waterproof option | YES . Waterproof |

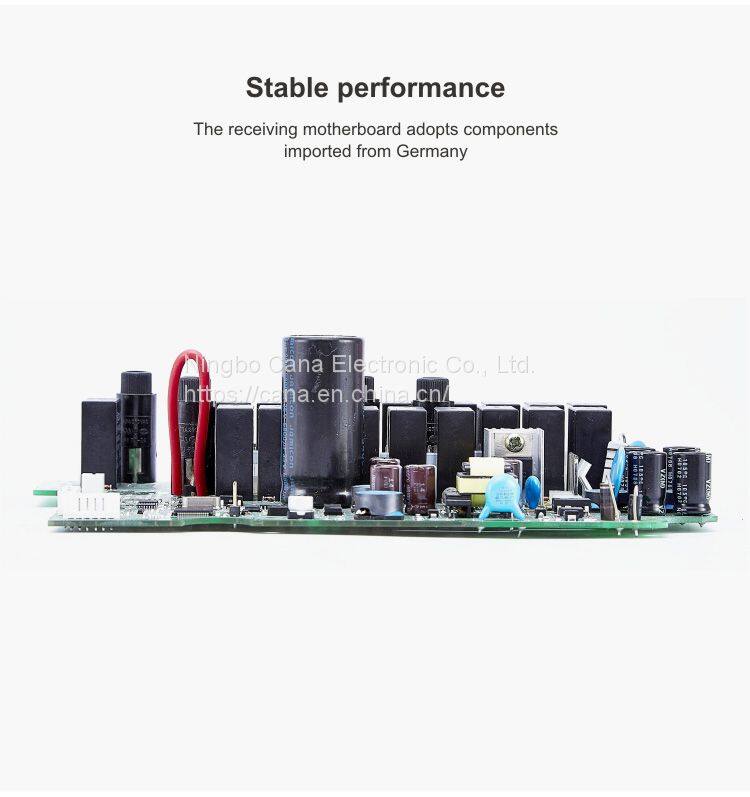

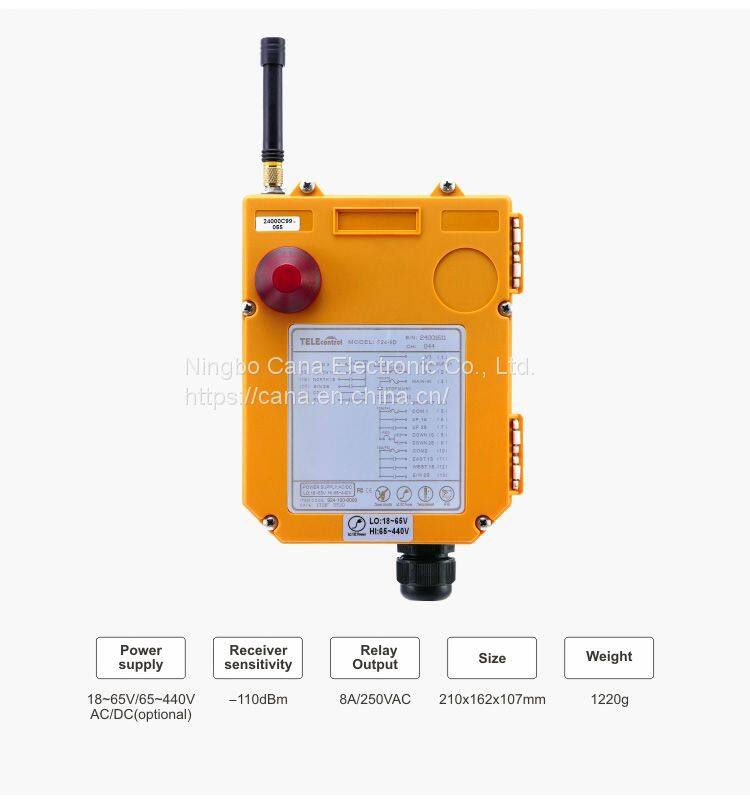

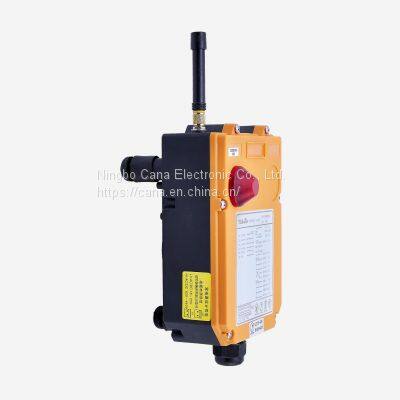

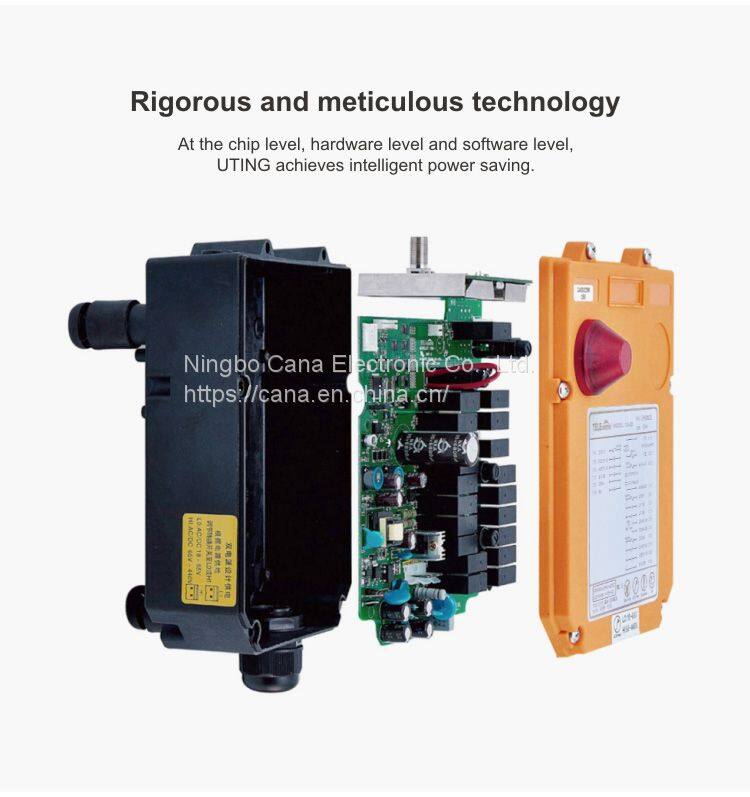

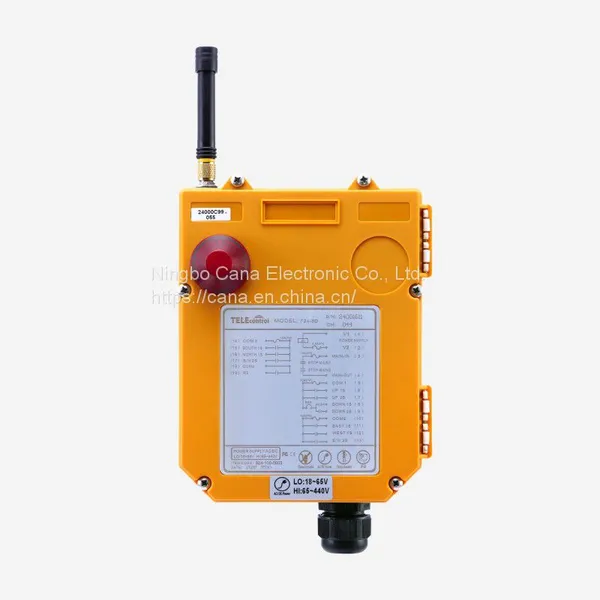

Receiver Parameters : F24-RXC | |
Material | Glass-Fiber PA |
Protection level | IP65 |
Frequency range optional | VHF:310-331 MHz; UHF:425-446 MHz |
Receiver sensitivity | -110dBm |
Receiver power supply optional | 12V ;18~65V 65~440V AC/DC (optional) |
Output contactor capacity | 8A sealed relay output( with AC 250V/10A relays,10A fuse) |
Controlling distance | Approx100m |
Safety code | 32 bits (4.3 billion) |
Temperature range | -40℃~+85℃ |
Certification | CE, FCC, ISO9000 |

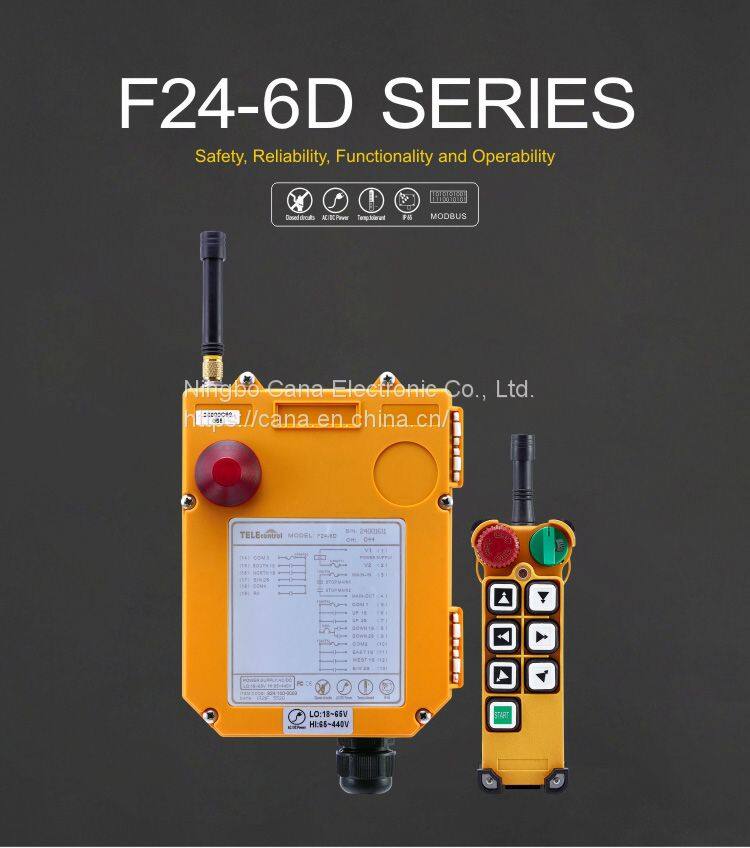

Configuration | 1 transmitter+1 receiver |
