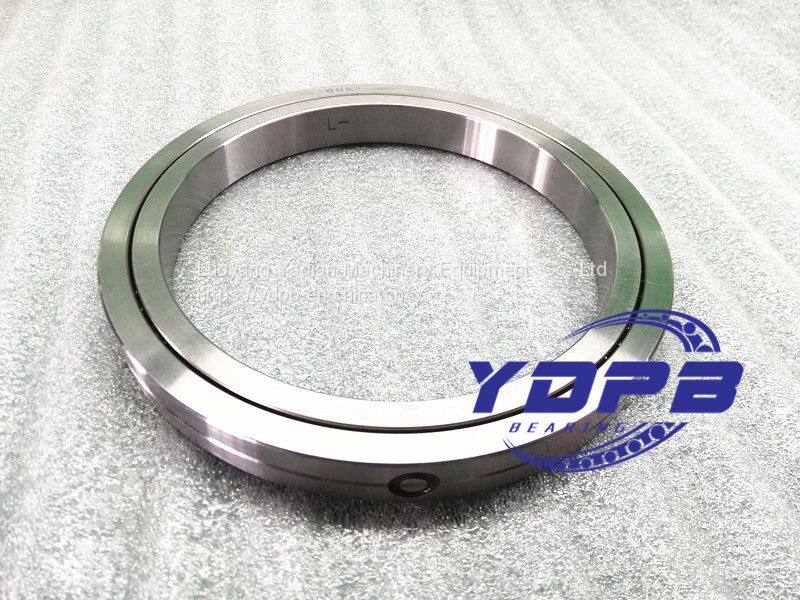

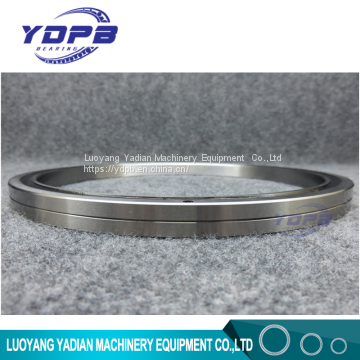

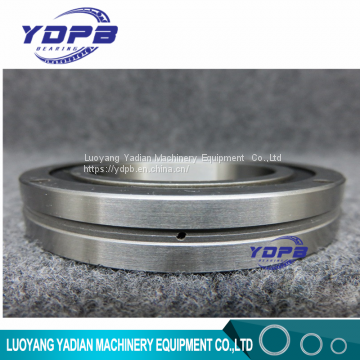

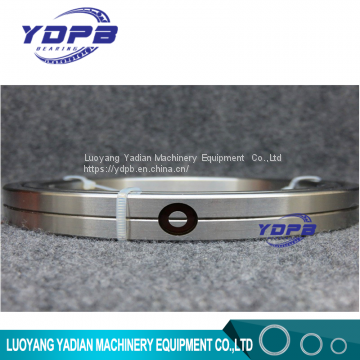

400x500x46mm Crossed Roller Bearing Industrial Equipment Bearing
US$ 1 - 100000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OEM
Place of Origin:
China
Model Number:
400x500x46mm
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
SX011868 Crossed Roller Bearing Industrial Equipment BearingUS$ 1 - 100000MOQ: 1 Piece -
340x420x38mm sx Crossed Roller Bearing Industrial Equipment BearingUS$ 1 - 100000MOQ: 1 Piece
-
SX011880 sx Crossed Roller Bearing Industrial Equipment BearingUS$ 1 - 100000MOQ: 1 Piece
-
SX0118/500 sx Single Row Crossed Cylindrical Roller Bearing Industrial Equipment BearingUS$ 1 - 100000MOQ: 1 Piece
-
400x500x46mm sx Single Row Crossed Cylindrical Roller Bearing Industrial Equipment BearingUS$ 1 - 100000MOQ: 1 Piece
Brand Name
OEM
Place of Origin
China
Model Number
400x500x46mm
Number of Row
Single Row
Precision Rating
P4
Outside Diameter
70, 500
Bore Size
80, 560
SX series Crossed Roller Ring Bearings--separatable outer ring,type for inner ring rotation
This series is similar to RB series,the outer ring is separatable and connect with three fixed rings, while the inner ring is intergrated with the main body,This model is used in location where the rotation accurancy of the outer ring is required.due to their high running accuracy, as bearings for high precision applications (such as those in robots, machine tools, handling systems, precision mechanical and medical devices, vehicle components)
Same structure Different sizes models
SX011814 SX011818 SX011820 SX011824 SX011828 SX011832 SX011836 SX011840 SX011848 SX011860 SX011868 SX0118/500

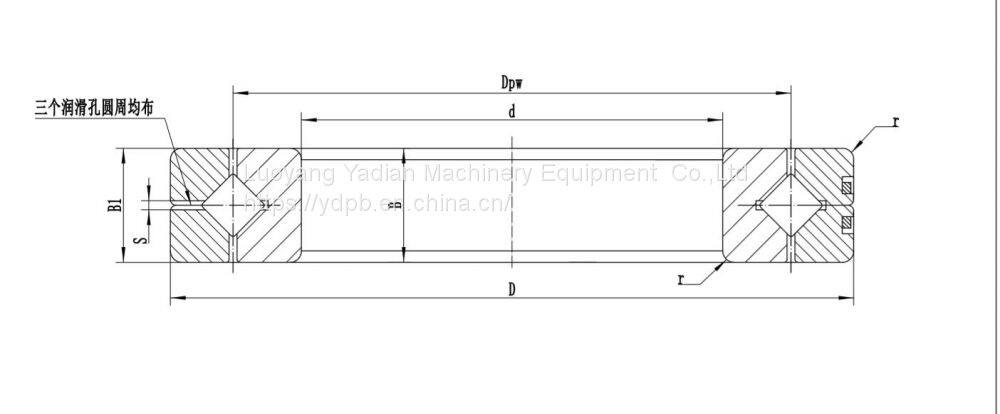

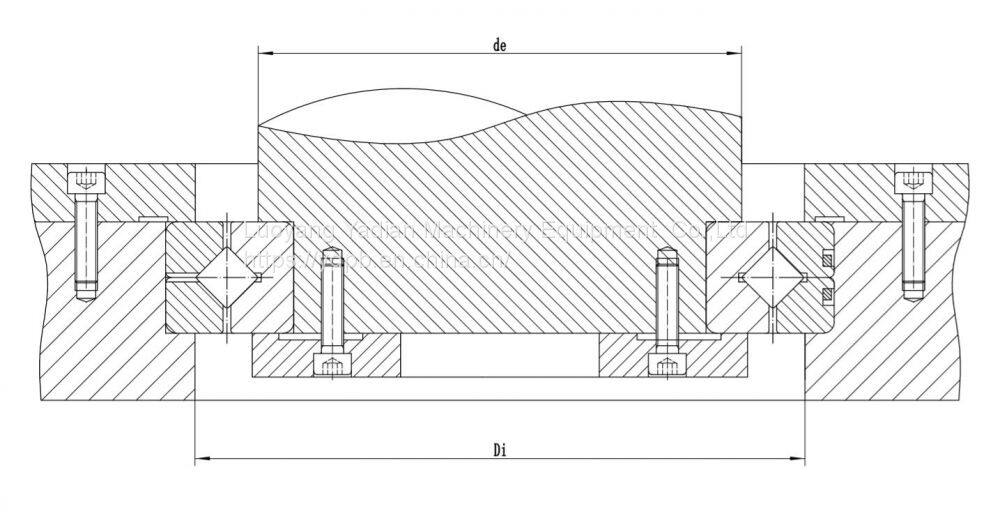

| Bearings Model | Boundary Dimensions | Shoulder height | Basic load rating(axial) | Basic load rating(radial) | Weight | ||||||||
| Inner ring | Outer ring | Roller pitch circle diameter dp (mm) | Width | Greasing hole | Chamfer | de | Di | Ca | Coa | Cr | Cor | Kg | |
| d | D | B/B1 | r | KN | KN | KN | KN | ||||||
| (mm) | (mm) | (mm) | φ | （min） | |||||||||
| SX011868 | 340 | 420 | 380 | 38 | 2.5 | 2.1 | 379.2 | 380.8 | 260 | 1220 | 185 | 485 | 13.5 |
| SX011880 | 400 | 500 | 450 | 46 | 2.5 | 2.5 | 449 | 451 | 385 | 1800 | 275 | 720 | 24 |
| SX0118/500 | 500 | 620 | 560 | 56 | 2.5 | 3 | 558.8 | 561.2 | 560 | 2750 | 395 | 1100 | 44 |
More information ,pls check
