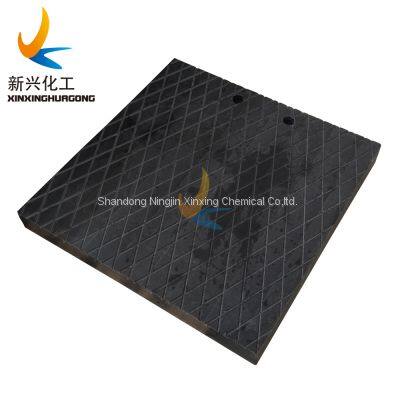

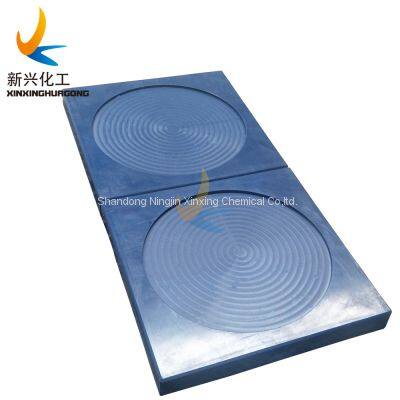

Electirc Car RV Jack Stabilizing Pad
UHMWPE heavy duty interlocking Crane stacker cribbing blocks designed to stabilise heavy equipment and machinery with the flexibility to use in various configurations.
The UHMWPE heavy duty interlocking crane stacker cribbing blocks provide you with safer, smarter cribbing solutions
Engineered to withstand high capacity loads, our heavy duty cribbing blocks are designed to support and stabilise heavy machinery and equipment during a lifting/lowering operation. Long lasting performance with minimal maintenance, our super cribbing blocks provide a much safer solution to traditional wooden cribs.
Super UHMWPE interlocking crane stacker cribbig blocks can be easily and safely setup in minutes. Each individual lightweight cribbing block has integrated rope handles which makes handling, stacking and storing simple.
Ideal for a range of applications from emergency cribbing in the event of an accident to providing axle support whilst carrying out routine maintenance on wheel bubs and braking systems.
FLEXIBLE CONFIGURATIONS
The interlocking modular design of cribbing blocks gives you the flexibility to build a crib for every type of load stabilisation and equipment levelling, whilst still being easy to move and transport. We recommend two configurations depending on the load capacities you need to support - a 2-block layer crib and a 3-block layer crib.
Big strength and supports
Safety is critical when lifting and lowering heavy equipment. Traditionally wooden cribs have been used to provide temporary structures to support and stabilise loads, but when left outside and exposed to the elements they splinter and rot. Engineered from High Density Polyethylene (HDPE) our cribbing block products are resistant to water and chemicals.
Electirc Car RV Jack Stabilizing Pad
Crane outrigger pads,Crane stabilizer jack pads outrigger pads,stabilizer jack pads,jack pads,crane cribbing plate
UHMWPE Crane cribbing plate,UHMWPE Crane pads HDPE crane block,HDPE Crane cribbing plate,UHMWPE Crane outrigger pads
Recycled Multi-color UHMWPE Crane outrigger pads/jack pad/foot support pad/cribbing pad Benefits:
l Do not absorb moisture and will not swell up over time due to exposure outdoors.
l Good impact intensity, Do not lose their impact strength over time.
l Good breaking elongation,so they will bend but not break under extreme loads.
l Non-stick surface, easy to clean. l Corrosion and chemical resistant.
l Can work in in adverse weather conditions.
l Durable & Long Lasting, Cost Efficient compared to Steel or Aluminum l amazingly light compared to steel pads, and easier to mount, replace
l Will not rot,crack,splinter, or absorb moisture, safer to use in the field compared to other wood based pads.
l Lower maintenance costs.
l Storage-Friendly.
UHMWPE outrigger pads than normal outrigger pad compressive ability is stronger,more wear-resisting,and the price is low,service life is longer,not only save the cost,but also improve the efficiency so they are the best choice to replace the wood outrigger pads and become more and more popular.
Our standard outrigger pads size:
| Dimensions(mm) Square | Weight(kg) | Vertical Jack Capacity (tonne) | Crane Capacity(tonne) |
400*400*40 |
6.3 | 10 | 12 |
| 500*500*40 | 9.9 | 12 | 15 |
| 600*600*40 | 14.2 | 20 | 20 |
| 700*700*40 | 19.4 | 22 | 30 |
| 800*800*40 | 25.3 | 25 | 30 |
| 1000*1000*40 | 39.2 | 30 | 35 |
| 400*400*50 | 8 | 11 | 15 |
| 500*500*50 | 12.2 | 15 | 18 |
| 600*600*50 | 18 | 23 | 30 |
| 800*800*50 | 31.3 | 30 | 35 |
| 1000*1000*50 | 48 | 40 | 50 |
| 400*400*60 | 9.5 | 12 | 15 |
| 500*500*60 | 14.5 | 20 | 25 |
| 600*600*60 | 21.2 | 25 | 30 |
| 800*800*60 | 38.4 | 35 | 45 |
| 1000*1000*60 | 58.5 | 50 | 65 |
| 1200*1200*60 | 85 | 70 | 80 |
| 800*800*70 | 44 | 40 | 50 |
| 1000*1000*70 | 68.5 | 70 | 80 |
| 800*800*80 | 50.4 | 50 | 60 |
| 1000*1000*80 | 78 | 80 | 100 |
| 1200*1200*80 | 113 | 100 | 120 |
| 1000*1000*80 | 98 | 110 | 140 |
| 1200*1200*100 | 141 | 140 | 160 |
COLOR
black and yellow, green, red, white, orange, grey, blue
APPLICATIONS
truck crane
crawler crane
rough crane
boom crane
concrete pump
fire truck
utility truck
tree trimmer
aerial equipment
