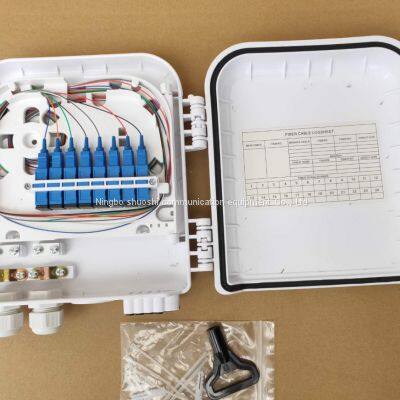

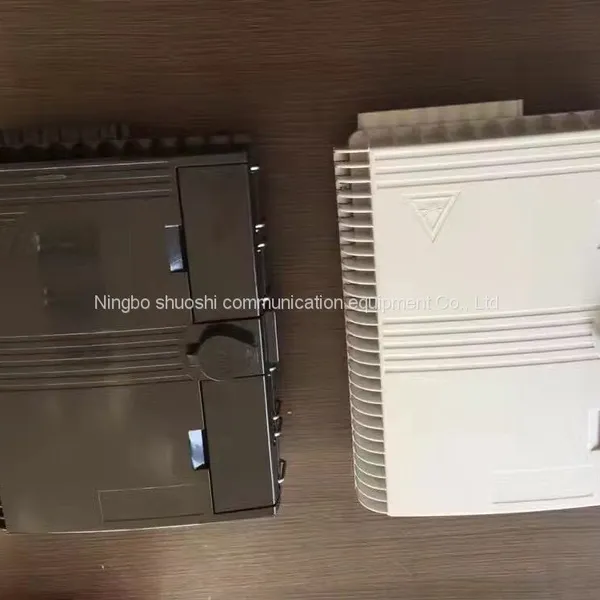

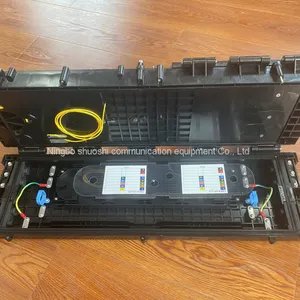

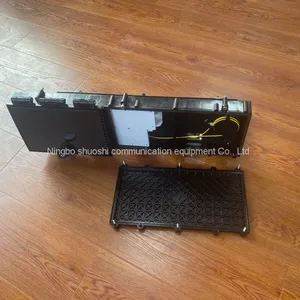

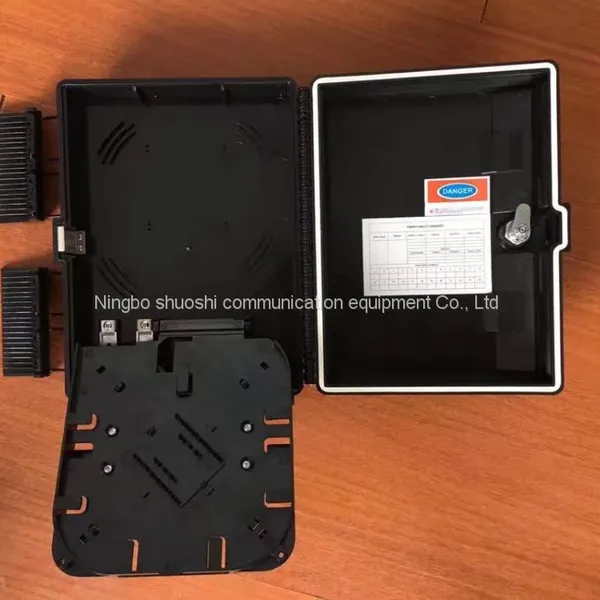

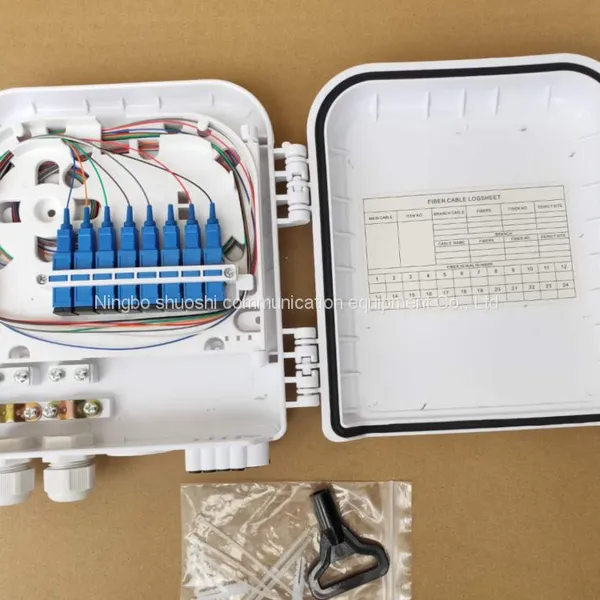

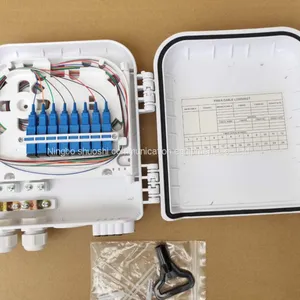

Optical cable joint box is a popular name, and its scientific name is optical cable joint box. It is also called optical cable joint package, optical cable joint package and gun barrel. It is mainly used for direct connection and branch connection of overhead, pipeline, direct burial and other laying methods of optical cables of various structures. The box body is made of imported reinforced plastic with high strength and corrosion resistance. The terminal box is suitable for the connection of the terminal room of the structural optical cable, with mature structure, reliable sealing and convenient construction. It is widely used in communication, network system, CATV cable TV, optical cable network system and so on. The right side is a two in two out junction box;
Product features
·The box body of the product is made of high quality engineering plastics.
·The product adopts secondary cable pressing technology to ensure that there is no additional attenuation of the optical fiber in the box.
·The product has the function of multiple reuse and expansion.
Technical characteristics
·Dimension: height 430mm inner diameter Φ 135mm maximum outer diameter Φ 210mm
·Cable entry hole neck: Φ 20mm
·Number of cores per disc: 12 / 24
·Maximum fiber tray: minimum capacity 4 cores, maximum capacity 144 cores
·Maximum number of melt discs: 6
·Tensile sealing: 2000N axial tension, no air leakage.
·Withstand voltage strength: 15kV (DC).
·Tensile seal: after the product is inflated, it can bear 2000N axial tension without air leakage.
·Impact seal: after the product is inflated, it can withstand the impact energy of 16N * m (Newton * m) for three times without crack and air leakage.
·Other performance requirements meet the requirements of YD / t814.1-2004 standard.
