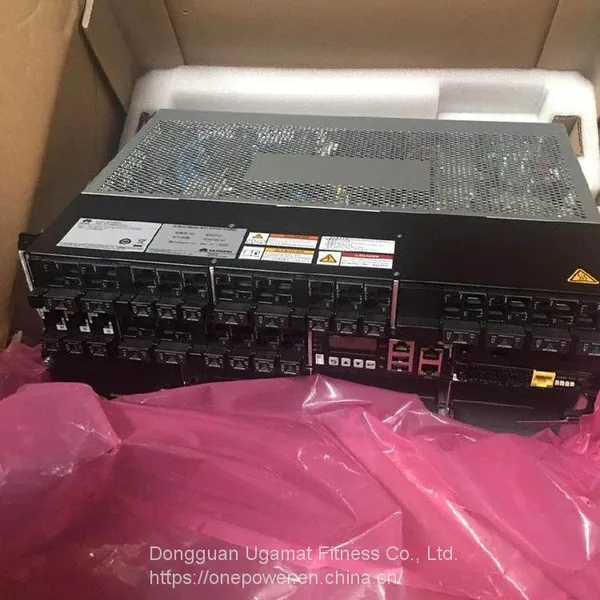

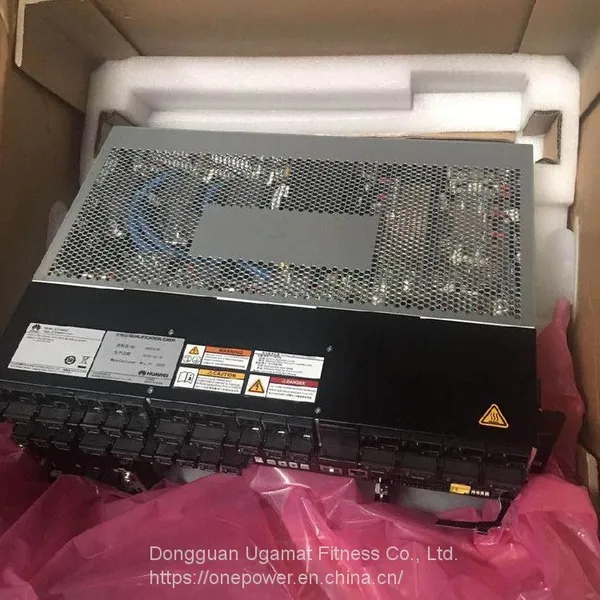

Original Network Power Rectifier Module Converter R4850N6 Monitoring Unit SMU02C AC/DC 48V Embedded Power System ETP48400-C4A1
US$ 750 - 990
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Huawei
Place of Origin:
China
Model Number:
Huawei ETP48400-C4A1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Original Network Power Rectifier Module Converter R4850G2 Monitoring Unit AC/DC 48V Embedded Power System ETP48200-C5B7US$ 750 - 990MOQ: 1 Piece -
Original Network Power Rectifier Module Converter R4850G2 Monitoring Unit AC/DC 48V Embedded Power System ETP48200-C5B6US$ 730 - 990MOQ: 1 Piece
-
Original HUAWEI DC 48V Embedded Power System ETP4830-A1US$ 133 - 888MOQ: 1 Set
-
Original HUAWEI DC 48V Embedded Power System ETP4830-A1US$ 133 - 888MOQ: 1 Set
-
Original HUAWEI DC 48V Embedded Power System ETP4860-B1A1US$ 133 - 888MOQ: 1 Set
Brand Name
Huawei
Place of Origin
China
Model Number
Huawei ETP48400-C4A1
Output Power
>500W
Output Type
Multiple
Output Current
200A
Output Frequency
50-60 HZ
Output Voltage
48Vdc
Input Voltage
Other, 200-240Vac; 346-415Vac
Original Network Power Rectifier Module Converter R4850N6 Monitoring Unit SMU02C AC/DC 48V Embedded Power System ETP48400-C4A1
ETP48400-C4A1 configuration instructions
Subrack: overall 5U, 1U rectifier module installation space, 4U power distribution space Monitoring unit: SMU06C1 Input system: 220/380VAC three-phase four-wire compatible with 220VAC single-phase AC input range: 85-300V, 45-66HZ; AC power distribution: 1 way 63A/3P MCB DC power distribution: LLVD: 1 channel 80A/1P, 6 channels 32A/1P; BLVD: 1 channel 80A/1P, 2 channels 32A/1P, 1 10A battery branch: 2 125A/1P MCBs Up to 4 R4850N6 rectifier modules can be configured AC lightning protection: nominal lightning discharge current 20kA, large lightning discharge current 40kA, 8/20μs
DC lightning protection: differential mode 10kA, common-mode 20kA, 8/20μs
Features
1U rectifier module: high density (42.7W/inch3), high efficiency (>96%), reliable output under high temperature (the output is not derated below 55°C)
Power supply wide operating temperature range: -40～+65℃ The power module supports hot-swappable, easy to install and maintain Standard installation structure design, strong versatility The power supply has a compact structure, saves space, and saves installation costs Perfect module dormancy function to further improve system efficiency Intelligent battery management and battery protection to extend battery lifeSupport environment monitoring, remote management can be realized through dry contact, serial port or network interface basic parameters
Size: 482.6mm (width) × 330mm (depth) × 5U (height)
Weight: ≤20kg (excluding rectifier module) Heat dissipation method: natural heat dissipation Installation method: 19-inch rack or embedded cabinet installation Wire routing mode: top incoming line, top outgoing line Maintenance mode: pre-operation, pre-maintenance, support module-level replacement Protection level: IP20 AC power distribution Input mode: 220/380V AC three-phase, compatible with 220V AC single-phase Input voltage: 380VAC/220VAC AC input: 1×63A/3P Input frequency: 45~66Hz, rated value: 50Hz/60Hz Lightning protection: 20kA/40kA, 8/20μs DC power distribution Output voltage: -42~-58V DC, rated value: -53.5V DC High power: 12kW Battery MCB: 2×125A/1P Load MCB: LLVD: 1×80A/1P, 6×32A/1PBLVD: 1×80A/1P, 2×32A/1P, 1×10A/1P Lightning protection: 10kA/20kA, 8/20μs Rectifier module Input voltage: 85VAC～300 VAC, rated value: 220VAC Efficiency: >96%* Rated power: 3000W (176~300VAC) Working temperature: -40℃~+75℃ (derating output above 55℃) Size: 105mm (width) × 281mm (depth) × 40.8mm (1U/height) Weight: ≤2kg
