180x255x25.4mm Crossed Roller Bearings With Mounting Holes Slewing Ring Bearings China Turntable Bearings Suppliers
US$ 1 - 100000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OEM
Place of Origin:
China
Model Number:
180x255x25.4mm
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
XSU080258 Crossed Roller Bearings With Mounting Holes Slewing Ring Bearings China Turntable Bearings SuppliersUS$ 1 - 100000MOQ: 1 Piece -
220X295X25.4mm Crossed Roller Bearings With Mounting Holes Slewing Ring Bearings China Turntable Bearings SuppliersUS$ 1 - 100000MOQ: 1 Piece
-
XSU080318 Crossed Roller Bearings With Mounting Holes Slewing Ring Bearings China Turntable Bearings SuppliersUS$ 1 - 100000MOQ: 1 Piece
-
280X355X25.4mm Crossed Roller Bearings With Mounting Holes Slewing Ring Bearings China Turntable Bearings SuppliersUS$ 1 - 100000MOQ: 1 Piece
-
XSU080398 Crossed Roller Bearings With Mounting Holes Slewing Ring Bearings China Turntable Bearings SuppliersUS$ 1 - 100000MOQ: 1 Piece
Brand Name
OEM
Place of Origin
China
Model Number
180x255x25.4mm
Number of Row
Single Row
Precision Rating
standard
Outside Diameter
130, 1024
Bore Size
25.4, 56

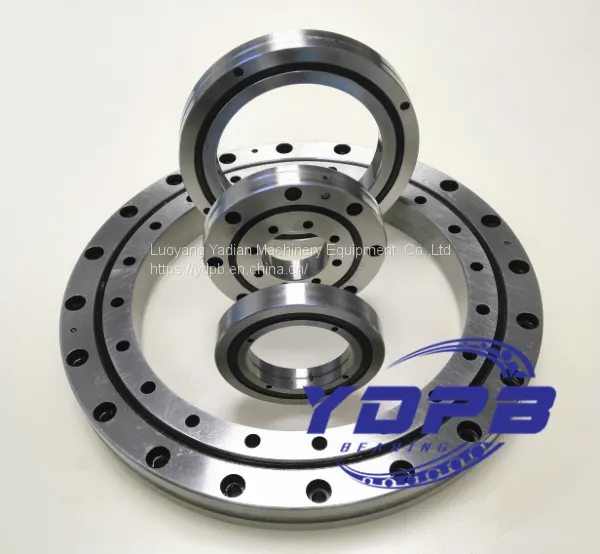

XSU series，solid inner ring and outer ring structure ,with mounting holes ,without gear,with two side seals,cross cylindrical roller slewing rings bearing,suitable for inner ring and outer ring rotate.
Series Model NO..
XSU080168bearings,XSU080188bearings,XSU080218bearings,XSU080258bearings,XSU080318bearings,XSU080398bearings,
XSU140414bearings,XSU140544bearings,XSU140644bearings,XSU140744bearings,XSU140844bearings,XSU140944 bearings
Applications
Vertical machining center,vibratory grinding unit,tandem roller etc. high precision parts

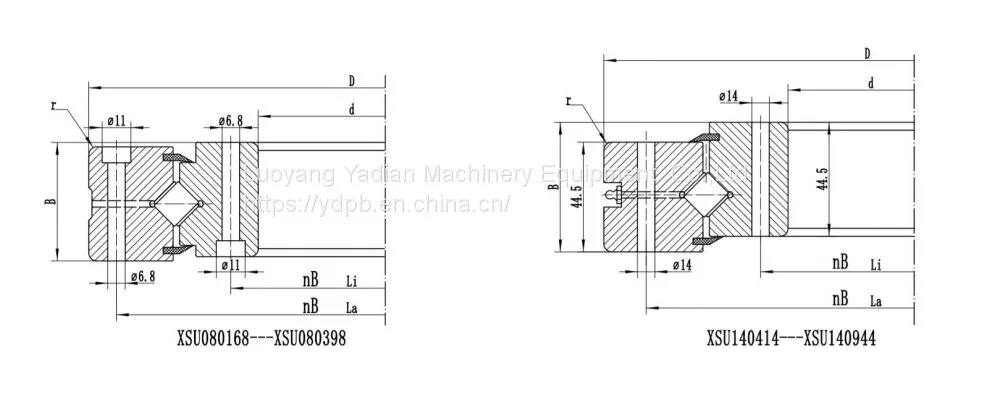

Structure and Parameters:
| Bearings Model | Boundary Dimensions | Basic load rating（axial） | Basic load rating（radial） | Weight | ||||||||
| Inner ring | Outer ring | Width | Installing hole | Chamfer | φLa | φLi | Ca | C0a | Cr | Cor | Kg | |
| d | D | B | nB | r | KN | KN | KN | KN | ||||
| (mm) | (mm) | (mm) | (mm) | (min) | ||||||||
| XSU080218 | 180 | 255 | 25.4 | 20 | 1.1 | 240 | 195 | 77 | 315 | 49 | 127 | 4.3 |
More information ,pls contact us or check
