Home > Industrial Equipment & Components > Bearing > Deep Groove Ball Bearing > F20 Flexible Bearing for Harmonic Drive Reducer35.56x49.073x7.24/8.13mm

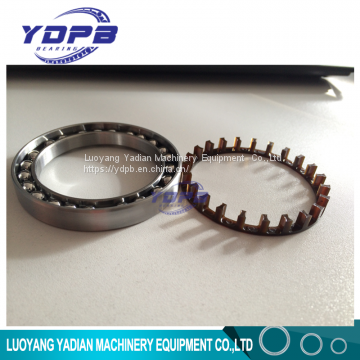

F20 Flexible Bearing for Harmonic Drive Reducer35.56x49.073x7.24/8.13mm
US$ 1 - 300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
YDPB
Place of Origin:
China
Model Number:
F20
Payment & Shipping
Payment Methods:
Port of Shipment:
LUOYANG
Delivery Detail:
3 days
Related Products
-
F17 Flexible Bearing for Harmonic Drive Reducer 30.3x41.722x 6.16/6.68mmUS$ 1 - 300MOQ: 1 Piece -
904 Flexible Robots Bearing for Harmonic Drive Reducer 18.8x25x4mmUS$ 1 - 300MOQ: 1 Piece
-
24x32x5mm Flexible Robots Bearing for Harmonic Drive Reducer 905US$ 1 - 300MOQ: 1 Piece
-
30x40x6mm Flexible Robots Bearing for Harmonic Drive ReducerUS$ 1 - 300MOQ: 1 Piece
-
35.8x48.2x8mm Flexible Robots Bearing for Harmonic Drive ReducerUS$ 1 - 300MOQ: 1 Piece
Brand Name
YDPB
Place of Origin
China
Model Number
F20
Number of Row
Single Row
Seals Type
no seals
Precision Rating
P5 P4 P6
Outside Diameter
33, 300
Bore Size
10, 220
Industrial robots bearings
Robot bearing/harmonic drive bearing is a special kind which easily deforms in a reversible way. It has a very thin outer ring which varies from round shape to oval interatively during its working time. easily double sealed bearing designed primarily for application of radial load—deep ball grooves also permit application of thrust load in either direction, often used in conjunction with another bearing.
Note: Some bearings we have use new structure( with cage and cover,convenient for you to install)
Other Dimension
Industrial Robots Use Flexible Bearings Regular models
With cage
| Bearings Model | Outer ring | Inner ring | Dynamic load rating | Static load rating | Radial Deformation | Input rotate speed | Output torque | ||
| Model | D | B | d | B1 | Cr | Cor | Max. mm | r/min | N.m |
| F17 | 41.722 | 6.16 | 30.3 | 6.68 | 7.12 | 5.83 | 0.3 | 3000 | 16 |
| F20 | 49.073 | 7.24 | 35.56 | 8.13 | 9.93 | 8.36 | 0.3 | 3000 | 30 |
Note: Full balls flexible bearing with high rigidity ,if need,pls contact us .
