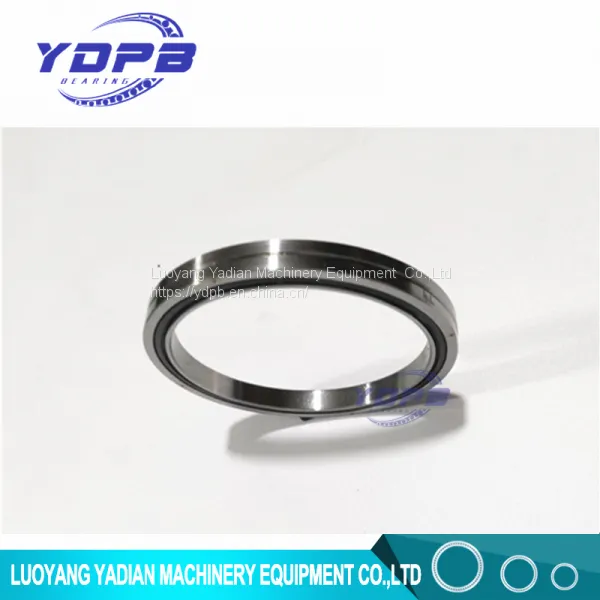

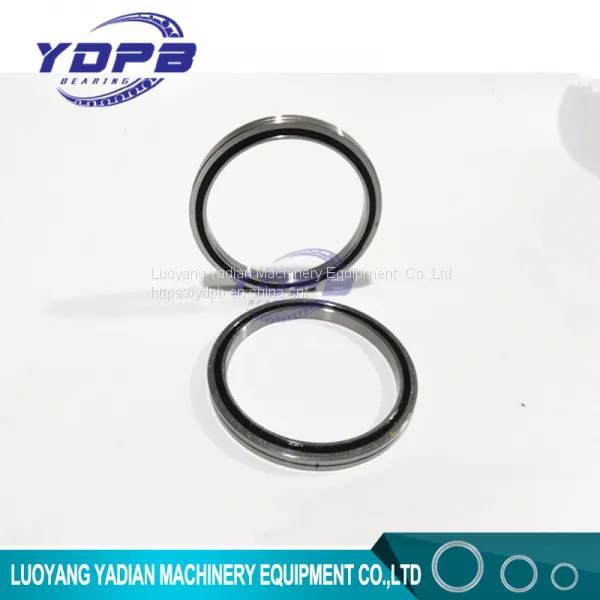

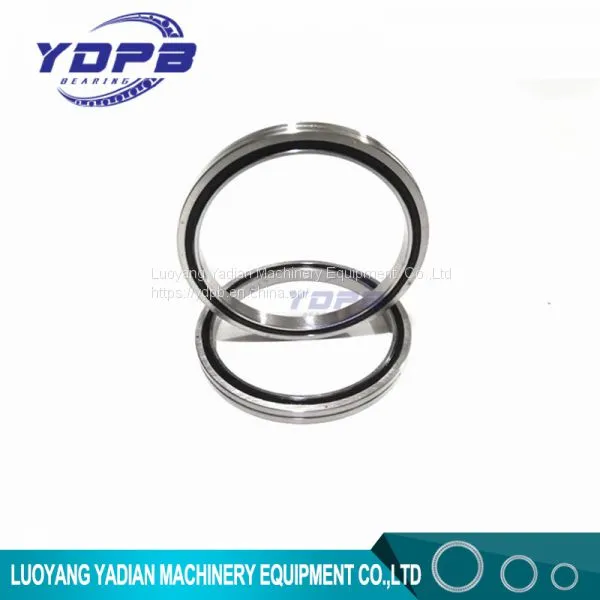

Help CenterRA10008UUCC0 Thin Section Crossed Roller Bearings 100x116x8mm Thk Cross Bearing
Related Products
-
RA11008UUCC0 Super Slim Thin Section Crossed Roller Bearings 110x126x8mm Thk Cross BearingUS$ 30 - 80MOQ: 10 Pieces -
RA12008UUCC0 Super Slim Thin Section Crossed Roller Bearings 120x136x8mm Thk Cross BearingUS$ 30 - 80MOQ: 10 Pieces
-
RA13008UUCC0 Super Slim Thin Section Crossed Roller Bearings 130x146x8mm Thk Cross BearingUS$ 30 - 80MOQ: 10 Pieces
-
RA14008UUCC0 Super Slim Thin Section Crossed Roller Bearings 140x156x8mm Thk Cross BearingUS$ 30 - 80MOQ: 10 Pieces
-
RA15008UUCC0 Super Slim Thin Section Crossed Roller Bearings 150x166x8mm Thk Cross BearingUS$ 30 - 80MOQ: 10 Pieces
Cross-Roller Ring Series
Structure
With the Cross-Roller Ring, cylindrical rollers are arranged crosswise, with each roller perpendicular to the adjacent roller, in a 90゜ V groove, separated from each other by a spacer retainer. This design allows just one bearing to receive loads in all directions including, radial, axial and moment loads.Since the Cross-Roller Ring achieves high rigidity despite the minimum possible dimensions of the inner and outer rings.
Features
Compact, Highly Rigid Swivel Bearings ,Achieving a Superb Rotation Accuracy
Applications
It is optimal for applications such as joints and swiveling units of industrial robots,
swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines
Cross roller Bearings with different Structure

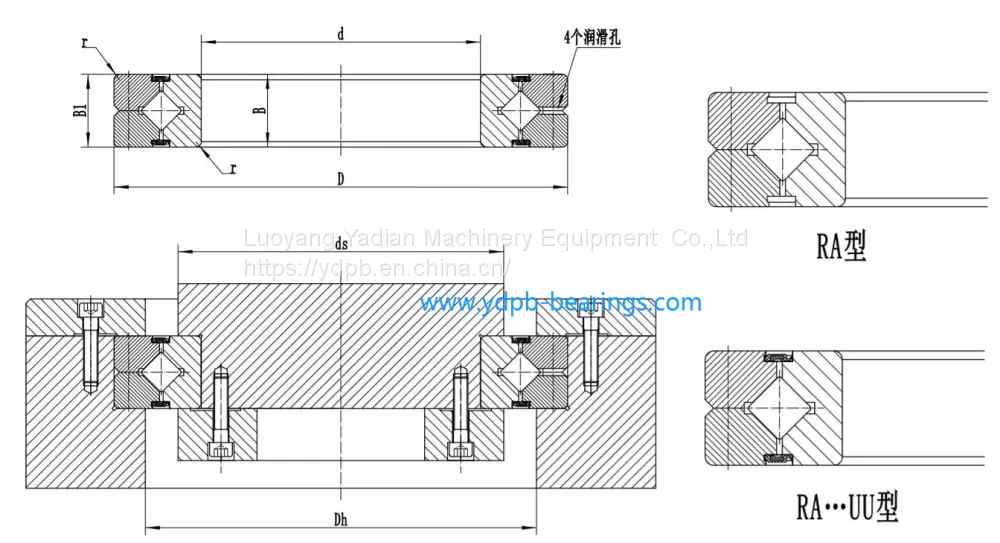

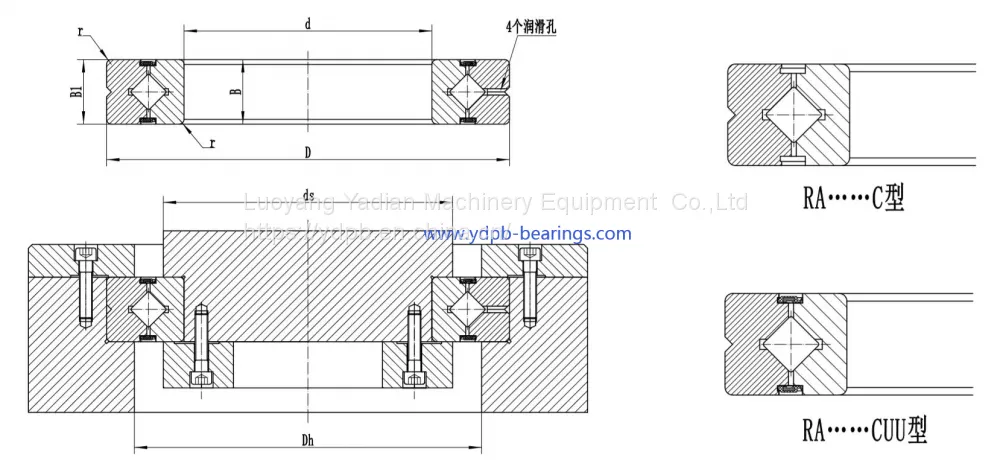

Model RA (Separable Outer RingType for Inner Ring Rotation)
RA series based on model RB,this type is a light and compact type with the thinnest inner ring and outer ring. It is optimal for location where weight reduction and downsizing are required,such as the hand swiveling unit of robots and manipulators.
Bearings selections
| Shaft diameter | Bearings Model | Boundary Dimensions (mm) | Shoulder dimensions | Basic load rating | |||||||||
| Inner diameter | Outer diameter | Roller pitch circle diameter | Width | Greasing hole | r min | (radial) | |||||||
| C | C0 | Weight | |||||||||||
| d | D | dp | B/B1 | a | b | ds | Dh | kN | kN | kg | |||
| 100 | RA 10008 | 100 | 116 | 107 | 8 | 2 | 0.8 | 0.5 | 103.5 | 110.5 | 7.15 | 13.9 | 0.14 |
