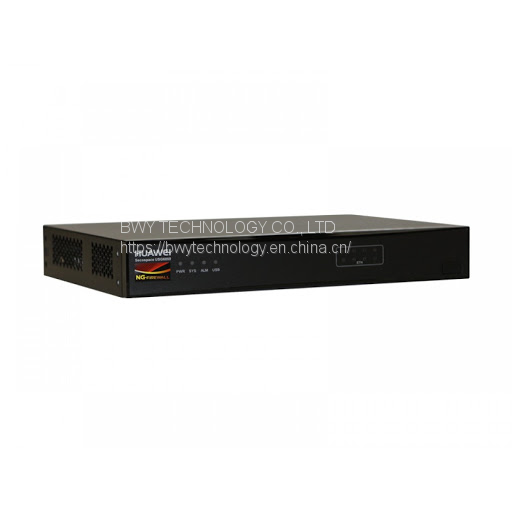

USG6330-AC Overview
The Huawei USG6330-AC next-generation firewall provides comprehensive protection in small- to medium-sized enterprise networks, ideal solution for branch locations. It provides fine-grained service access control and service acceleration through context awareness by Application, Content, Time, User, Attack, or Location (ACTUAL).
USG6330-AC Specification
| USG6330-AC Specification | |
Dimensions (H x W x D) |
44.4 mm x 442 mm x 421 mm |
Form Factor/Height |
1U |
Fixed Interfaces |
4 x GE (RJ45) + 2 x GE (Combo) |
USB 2.0 Port |
Supported |
Expansion Slot |
2WSIC* |
Expansion I/O |
WSIC: 2 x 10 GE (SFP+) + 8 x GE (RJ45), 8 x GE (RJ45), 8 x GE (SFP), and 4 x GE (RJ45) BYPASS |
Maximum Number of Interfaces |
22 x GE (RJ45) + 4 x 10 GE (SFP+) or 18 x GE (SFP) + 4 x GE (RJ45) |
MTBF |
11.58 years |
Weight (full configuration) |
7.9 kg |
Local Storage |
Optional. Supports a 300 GB or 600 GB hard disk (the hard disk is hot-swappable, but the hard disk card is not) |
AC Power Supply |
100V to 240V, 50 Hz/60 Hz |
Power Consumption (average/maximum) |
30.7W/107.83W |
Heat Dissipation |
368 BTU/h |
Power Supplies |
Single 150W AC power supply; optional 170W AC power supply |
Operating Environment (temperature/humidity) |
Temperature: 0°C to 45°C (without optional HDD) |
Non-operating Environment |
Temperature: -40°C to 70°C |
Operating Altitude (maximum) |
5,000 meters (without optional HDD); 3,000 meters (with optional HDD) |
Non-operating Altitude (maximum) |
5,000 meters (without optional HDD); 3,000 meters (with optional HDD) |
Noise |
54.1 dBA |
