Hotrain FXPTZ4K 4K USB 138 Degree Zoom HD Color Video Conferencing Camera
Hotrain FXPTZ4K is a high-definition video conference camera with Ultra-HD imaging system. It can be mounted to the ceiling with automatic turnover function; Integrated built-in HD movement, 4K optical zoom, 138° wide field, automatic focusing. It can focus on faces and render natural-looking skin tones, even in dim/black situation or backlighting.

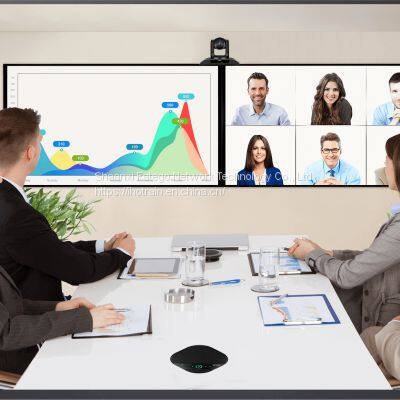

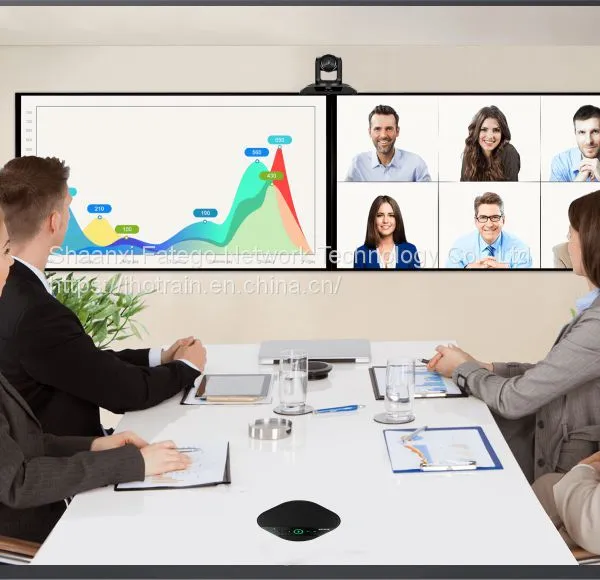

With SONY VISCA, PELCO P/D RS232C and RS485 communication protocols, FXPTZ4K video conferencing camera is widely used in video conferencing, distance learning, surveillance, medical, conference, training room, court, tele-interview, Internet communication and various other video communication fields.
Key Feature：
4K optical zoom
PTZ camera
1/2.5 inch HD Color CMOS (Sony IMX274)
8.29 mega pixel (16:9)
4K(3840 x 2160), 2k(2560*1440), 1080P(1920*1080)
138 ° wide field
IR remote control
Multiple mounting
RS-232, RS485 control interface
USB output interface
Applications:
Video chat
Conferencing
Online teaching
Online lesson
Online marketing
Online interview
Live broadcast
Live streaming
Skype video chat
Large company conference
Medium meeting/conference
Compatible with most Apps and software
Features:
4K optical zoom
Smooth and smart design
Plug & Play USB Connection
Clear Crystal HD1080P image quality
Accurate, smooth and silent PTZ Movement
Preset: 9 IR remote settings (256 presets via RS232)
Superior quality with full glass lens material
138 °wide field of view without video distortion
1/2.7 inch high quality, 2.1 MEGA PIXEL (16:9) CMOS sensor
Support ceiling mount, wall mount and tripod mount (Reverse mountable)
2D and 3D NR for best video quality in different lighting conditions
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
Compatible with most leading video conferencing software and platform
Product specifications:
Model |
FXPTZ4K |
Image Sensor |
1/2.5″CMOS（SONY IMX274） |
Effective pixel |
8.29 mega pixel (16：9) |
Horizontal Resolution |
4K(3840 x 2160), 2k(2560*1440), 1080P(1920*1080) |
Signal standard |
NTSC/P AL |
Lens |
Fixed focus 2.1mm wide angle lens |
Field of View: |
Fixed focus, Diagonal :138 °, Horizontal: 120 °, Vertical:100 ° |
SNR ratio |
≥48dB |
Preset position |
Remote-controller supports 9 presets, |
Pan movement range |
340°(Max Speed 80°/S) |
Tilt movement range |
120°(Max Speed 60°/S) |
Control terminal |
RS-232, RS485 |
Control Protocol |
VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
HD Video output |
USB plug and play |
Work Temperature |
-10°-50° |
Work Humidity |
-20°-60° |
Baud rate |
2400/4800/9600/19200bps |
Decoder |
Built-in |
Address Set |
1~255 |
Installation |
Support desktop, Tripod, Wall mount and Ceiling mount |
Power supply |
DC12V/2A |
Power |
12W |
Net Weight |
1.46kg |
Inner package weight |
2.8kg |
Dimensions |
260*175*180 mm |
Inner package dimensions |
296*225*218mm |
Accessories |
DC 12V Power adaptor, IR remote control, Ceiling brackets & screws, RS-232C cable, USB cable, manual. |
