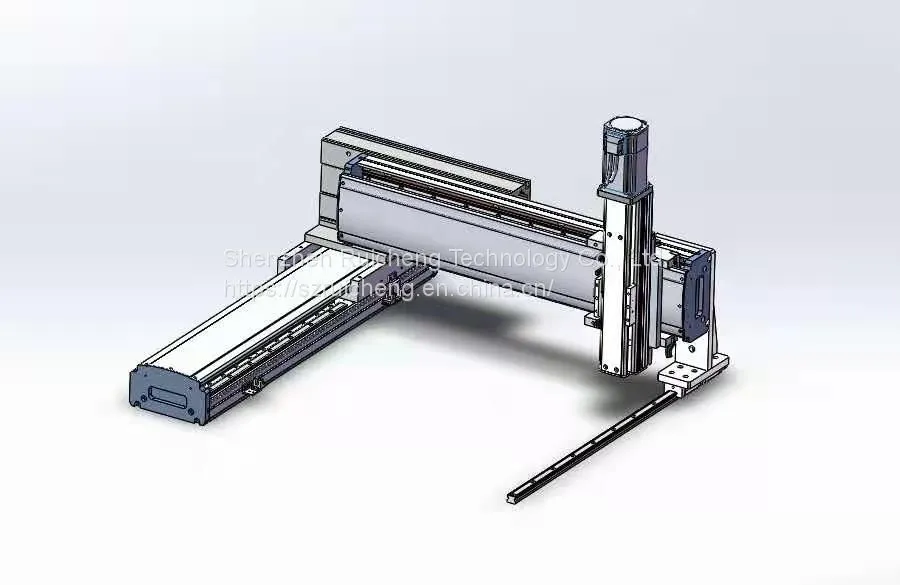

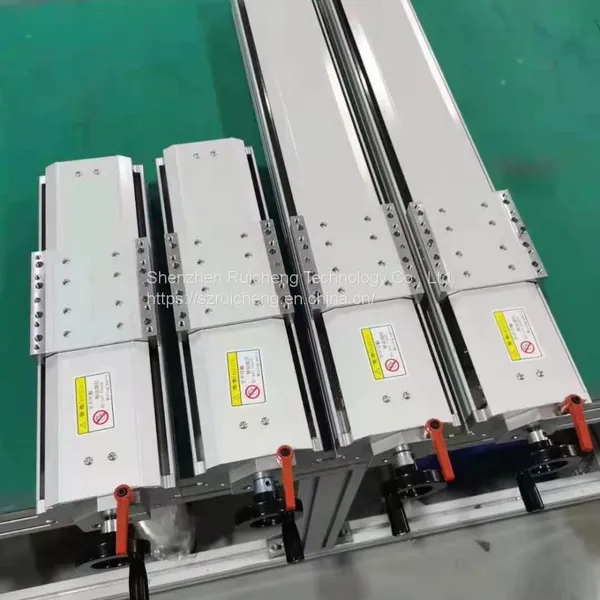

Linear Guide Module Linear Motion Guide Modular Sliding Table

Equipment introduction:

There are several names for linear modules, linear modules, rectangular coordinate robots, linear sliding tables, etc., which are automated upgrade units following linear guides, linear motion modules, and ball screw linear drive mechanisms. The linear and curved movement of the load can be realized through the combination of various units, making the automation of light loads more flexible and positioning more precise.

Equipment features and advantages:

Beautiful appearance, high precision, reasonable and diversified design, fast single movement speed, high repeat positioning accuracy, light body weight, small equipment space occupation and long service life.

Uses: The linear module is currently widely used in measurement, laser welding, laser cutting, glue spreading machine, spraying machine, punching machine, dispensing machine, small CNC machine tool, engraving and milling machine, sample plotter, cutting machine, transfer Machines, sorting machines, testing machines and applicable education and other places.

Device parameters:

Stroke: 30-5000mm

Accuracy: ±0.01

The fastest speed: less than 1000mm/s

Power: 750W

Carrying weight: 20-200KG

Moving amount per revolution: 160mm

Motor speed: 3000RPM

Material: aluminum alloy
