Help CenterYRT650P4 Rotary Table Bearing Lathe Dividing Head Bearing Manufacturer
Related Products
-
YRT650P2 High Precision Rotary Table Bearing Universal Dividing Head BearingsUS$ 100 - 15000MOQ: 1 Piece -
Customized HYRT650 Combined Radial Axial Roller Bearing for Manual Rotary Table-Large Bore Rotary BearingUS$ 100 - 15000MOQ: 1 Piece
-
Customized AXRY650 Axial-Radial-Bearings Cam Rotary Indexing Table BearingsUS$ 100 - 15000MOQ: 1 Piece
-
Customized ZRT650 Rotary Table Bearings Parameters for CNC Rotary IndexersUS$ 100 - 15000MOQ: 1 Piece
-
YRTS650 High Speed Axial Radial Bearings for Torque MotorsUS$ 100 - 15000MOQ: 1 Piece

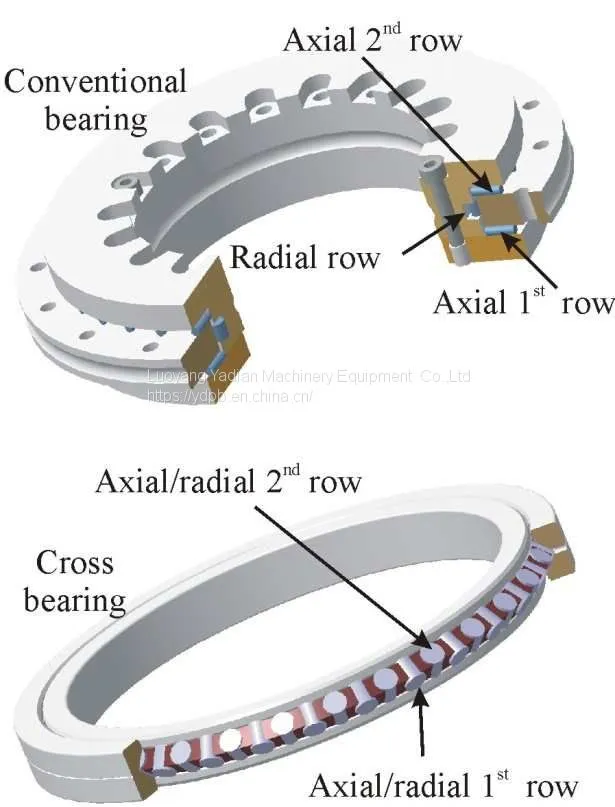

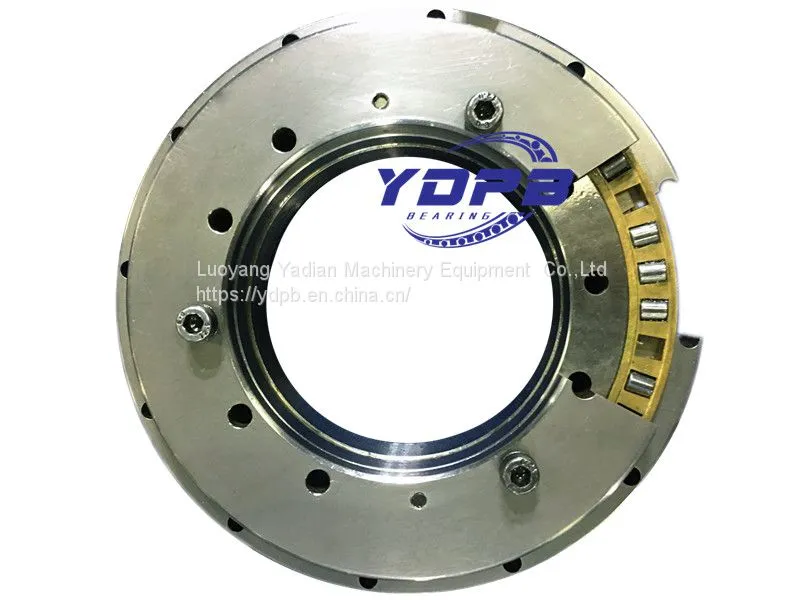

YRT bearings structure
It consists of a thrust/radial housing washer,a thrust/radial shaft washer,two axial needle roller and cage assemblies and cage assemblies and a group of radial cylindrical roller, housing washer and shaft washer have equally spaced fitting bolt holes.
YRT bearings advantages
This kind of bearings have high axial load and radial load ,and high tilting rigidity and high precision.
YRT bearings applications
This bearing can be used to the machine tool and other high precision machinery of the rotary table or sub-set,and also can be used for chuck,measuring instruments and test equipment and rotary table configuration, this bearing requires higher quality of the parts to match it .you can control screw tightening torque when install it.

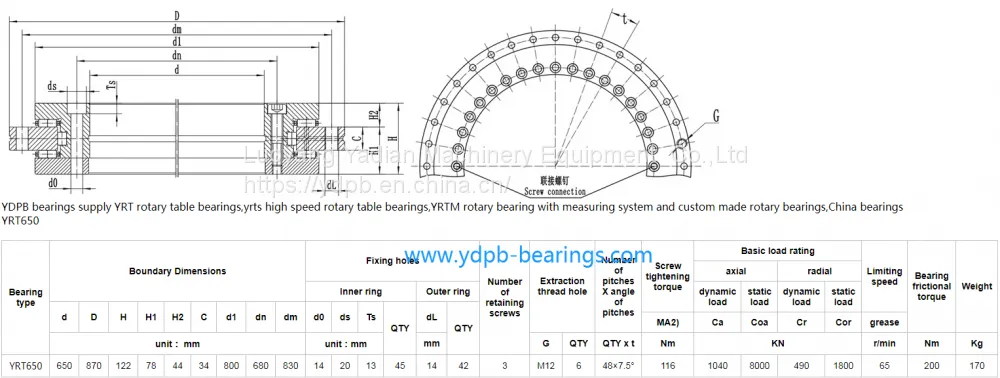

YRT650 Parameters
If need angle measuring system,pls contact us by email ydbearing@foxmail.com
YRT bearings Different cage material we have
1.Brass cage bearing
2.Nylon cage with lower cost
3.Custom made YRT bearing with Gear ,dimesion custom made also available
More information ,pls contact us
